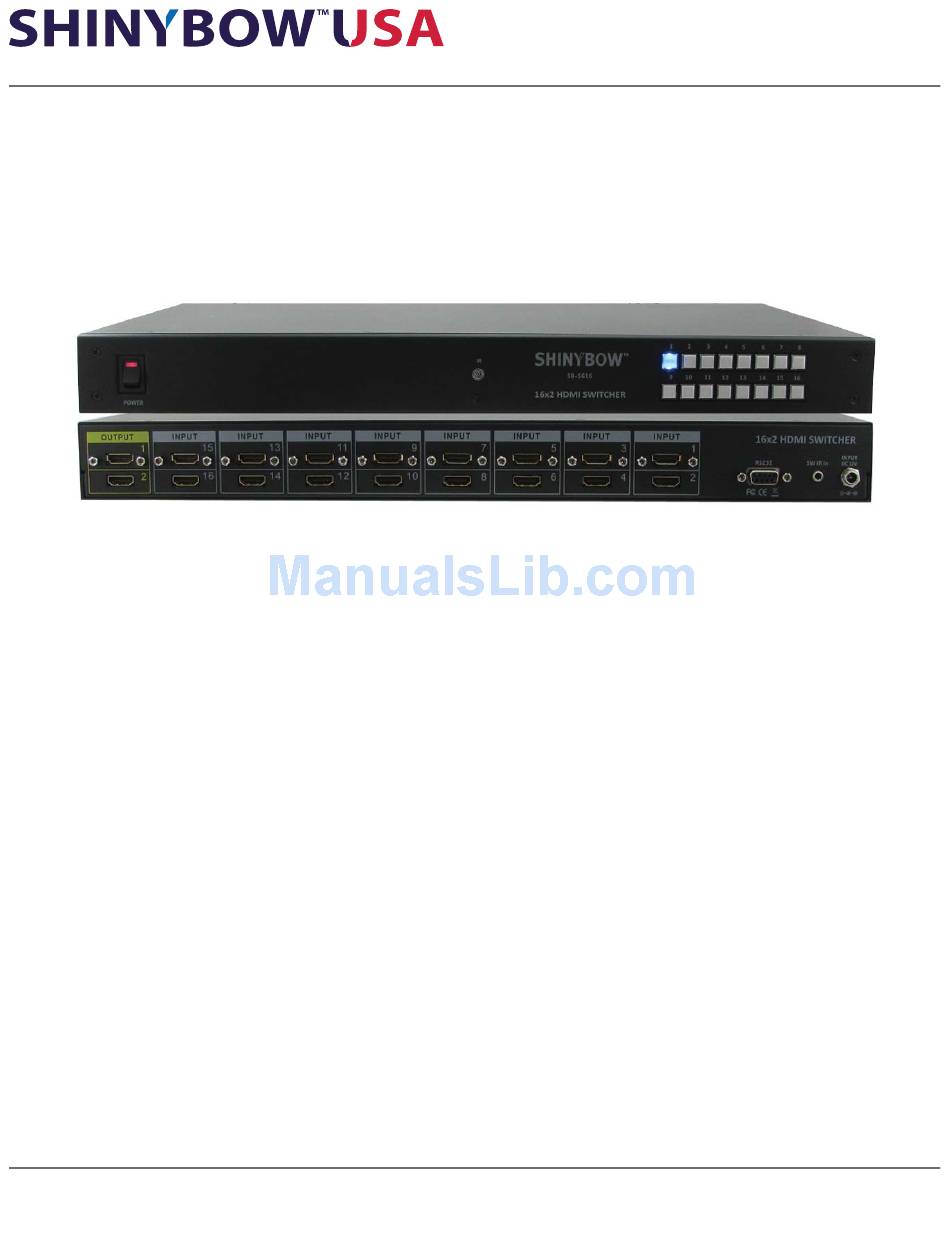

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5616

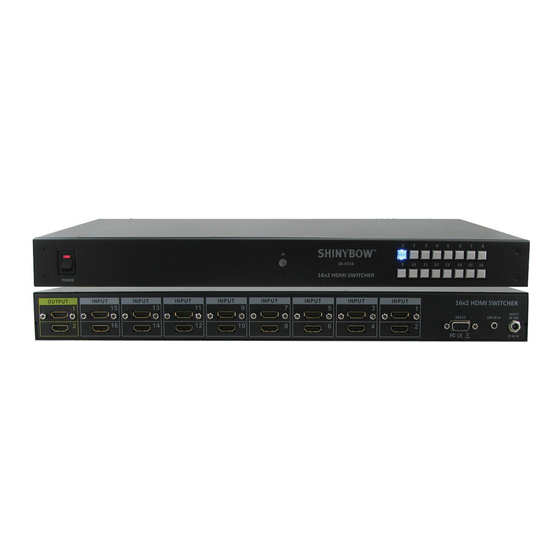

16x2 HDMI Routing Selector Switch (both outputs mirrored)
16x2 HDMI Routing Selector Switch (both outputs mirrored)
HDMI Routing Selector Switch Series
Thank you for purchasing the SB-5616 HDMI Routing Selector Switch. You will fi nd this unit easy to install
and highly reliable but it is essential that you read this manual thoroughly before attempting to use 16x2 HDMI
Routing Selector Switch.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5616
Summary of Contents for Shinybow USA SB-5616
- Page 1 HDMI Routing Selector Switch Series Thank you for purchasing the SB-5616 HDMI Routing Selector Switch. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 16x2 HDMI...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow The SB-5616 is high-performance 16x2 HDMI routing switcher for suffi cient space for air to circulate around the unit. -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES • 16x HDMI digital source devices matrix switched to 2x HDMI devices. • HDMI digital video w/embedded audio, DVI format and CEC/HDCP 2.0 compliant • Link speeds of up to 3.75 Gbps (link clock rate of 225Mb Hz), Support HDMI 1.4a 3D formats. •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi... -
Page 6: Rear Panel
REAR PANEL REAR PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug input connector. DC Jack - Inner OD Ø 2.1 mm (+) Ensure that the used is of an approved type and is of suffi cient Outside OD Ø... -
Page 7: Ir Remote Control
REMOTE CONTROL Before making any connections to the switcher. Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%) • Ensure that the power switch is OFF • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 8: Ir External Install
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 9 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 10: Rs-232 Protocol
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 Defi nition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used... -
Page 11: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using SB-5616 switch 16 sources to 2x display via HDMI signals and to control SB-5616 Switcher via SB-100 IR Receiver. (Max. 300M distance). NOTE: 1. SB-5616 16x2 HDMI Switcher : HDMI Input : 16 Sources HDMI Outputs : 2 port (same picture) 2. -
Page 12: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 13 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
