Summary of Contents for Shinybow USA SB-5608

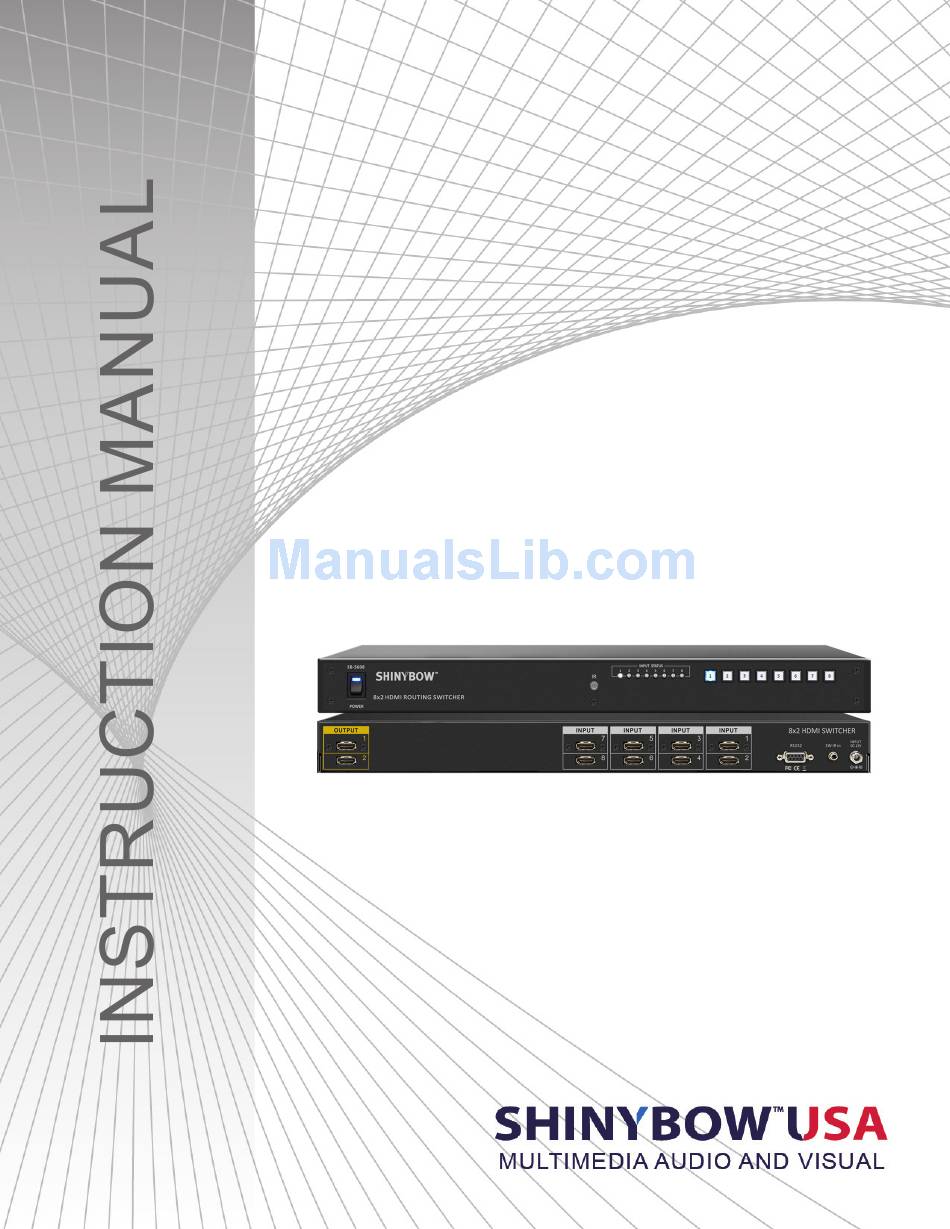

- Page 1 SB-5608 8x2 HDMI Routing Switcher w/ RS-232 w/ Remote V1.3...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI Routing Switcher Series Thank you for purchasing the SB-5608 HDMI Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use the 8x2 HDMI switcher. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • (8) HDMI digital source devices matrix switched to (2) HDMI devices • HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 1.2 compliant • Wide frequency range 25MHz ~ 340 MHZ. Supports HDMI 1.3b 3D formats •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. -
Page 6: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the plug used is of an approved type and DC Jack - Inner OD Ø 2.1 mm (+) is of sufficient current carrying connector capacity with the correct Outside OD Ø... -
Page 7: Remote Control
REMOTE CONTROL & REMOTE PROTOCOL COMMANDS Before making any connections observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 8: Ir Extender
IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 9: Rs-232 Protocol
RS-232 & ETHERNET SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. vERSION COMPATIBLE v1.6 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the commanded string to select Inputs: FunCTIOn COMMAnD VARIABLES... -
Page 10: Typical Hook-Up & Operation
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using the SB-5608 switch (8) sources to (2) displays via HDMI signals and to control SB-5608 switcher via SB-100 IR Receiver. (Max. 300M distance) nOTE: 1.SB-5608 8x2 HDMI Switcher : HDMI Input : (8) Sources HDMI Outputs : (2) port (same picture) 2. -
Page 11: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 12 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
