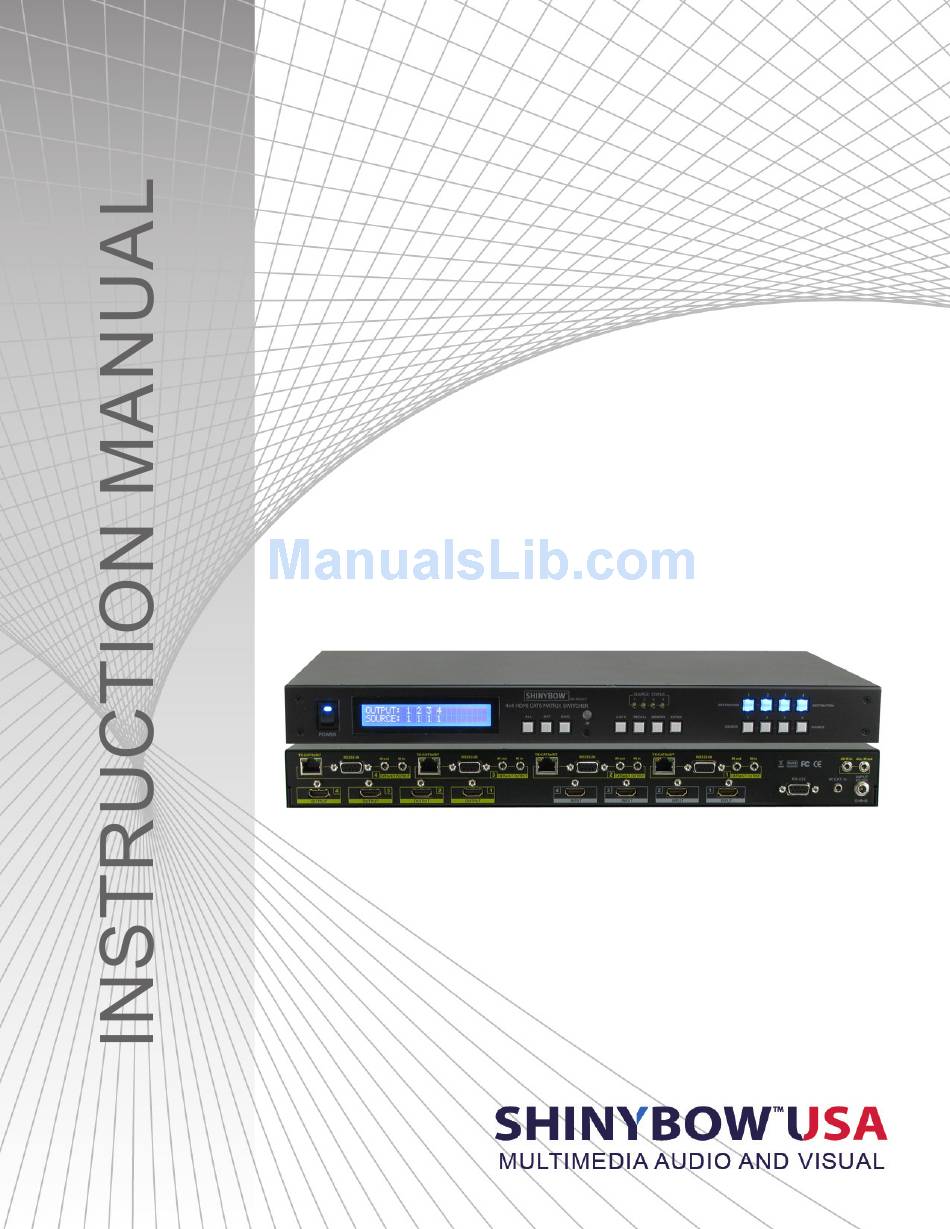

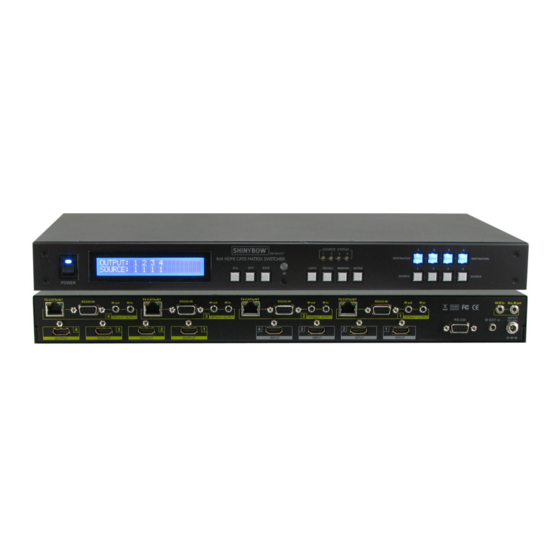

- Page 1 SB-5645LCM-CT 4x4 HDMI & HDBaseT™ Over Single CAT5e/6/7 Matrix Routing Switcher...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI Over CAT6 Matrix Switcher Series Thank you for purchasing the SB-5645LCM-CT 4x4 HDMI Over CAT6 Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this 4x4 HDMI Over CAT6 Matrix switcher. -
Page 4: Features
FEATURES FEATURES Based on HDBaseT™ bi-directional IR, RS-232, Multi format Audio, Ethernet and full resolution HD Video all, signals over CAT5e/6/7 cable. • 4x HDMI source devices matrix switched to 4x HDMI and 4x CAT5e/6/7 Extender output devices. • Application IR enabled by products designed using HDBaseT™ Specifications, RS-232, Multi Audio Format and HD Video Signals over CAT5 e/6/7 Cable •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of Switcher: 4x HDMI inputs To 4x HDMI and 8x CAT5e/6/7 Outputs Matrix Switcher • HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4a formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 225Mhz, Total 6.75Gbps bandwidth • Digital Video Support: HD: 480i / 480p / 720p / 1080i / 1080p up to 36bit deep color • Digital Audio Support:... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected.
- Page 8 FRONT PANEL FRONT PANEL 112. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of 8. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location.
-
Page 9: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fitted with a DC power plug input DC Jack - Inner OD ᴓ 2.1mm (+ ) connector. Ensure that the outlet type is approved and sufficient Outside OD ᴓ 5.5mm (GND) to carry current connector capacity with the correct voltage and Power input - 12VDC, 3A connector polarity. - Page 10 BACK PANEL BACK PANEL 6. RS-232- 1,2,3 & 4 CONNECTION TO CONTROL ROOM: Remote port : 4x RS-232 DB-9pin Female connector control port to allow for interfacing to a PC. Such as a computer or touch panel control, to the switcher via this DB-9pin female connector for serial RS-232 control.
-
Page 11: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 12 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 1CE3 DATA CODE : POWER ON : 1CE3 A15E POWER OFF : 1CE3 A25D : 1CE3 B04F : 1CE3 B14E EDID : 1CE3 B748 LOCK...
-
Page 13: Remote Controls
REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #4 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 1CE3 IR-01 DATA CODE: IR-02 DATA CODE: SOURCE #1 : 1CE3 11EE SOURCE #1 : 1CE3 21DE SOURCE #2 : 1CE3 12ED SOURCE #2 : 1CE3 22DD... -
Page 14: Edid Functions
EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1 . Press the EDID button The display will show the currently selected EDID mode Step 2 . Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. -
Page 15: Edid Function
EDID FUNCTION NOTE : The already learned EDID cannot be modified. You can only rebuild a new Learning EDID. For example; When the Source has “Learned” the EDID data from a destination, It will save that EDID information into EPROM and the EDID data cannot change. - Page 16 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning EDID Single to Single Example : Learn Destination #4 EDID To Source #2. Step 1 . Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2 .
-
Page 17: Ir Extender
IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 18 IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out IR in CAT6/6a/7 DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 19: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 RS-232 SERIAL CONNECT RS-232 PROTOCOL COMMANDS (RS-232 Control driver V2.0) The ShinybowUSA switcher can be controlled via the RS-232 serial Pin RS-232 Definition control port to allow for interfacing to a PC, or similar third party control ------ Not used system. -
Page 20: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. Control Projector Over CAT5e/6/7 Extender: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2. Projector RS-232 Control by a PC. 3. - Page 21 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using SB-6335T HDBaseT™ IR Transmitters (SB-101) and SB-6335R HDBaseT™ IR Receiver to control a Satellite Receiver IR Remote. NOTE : 1. IR Control Satellite Receiver Over HDBaseT™ CAT5e/6/7 Extender from room: SB-6335T HDBaseT™ CAT5e/6/7 Transmitter SB-6335R HDBaseT™...
- Page 22 INSTALLING DIAGRAM Sample connection using Audio Extractor To Re-code Audio (SB-5609) or to control ARC (SB-5610) and Extend the HDMI signal via HDBaseT™ Transmitter to IR Receivers (SB-6335R) with SB-5645LCM-CT to extend 100M distance between switcher and destination. NOTE : 1.
-
Page 23: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 24 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
