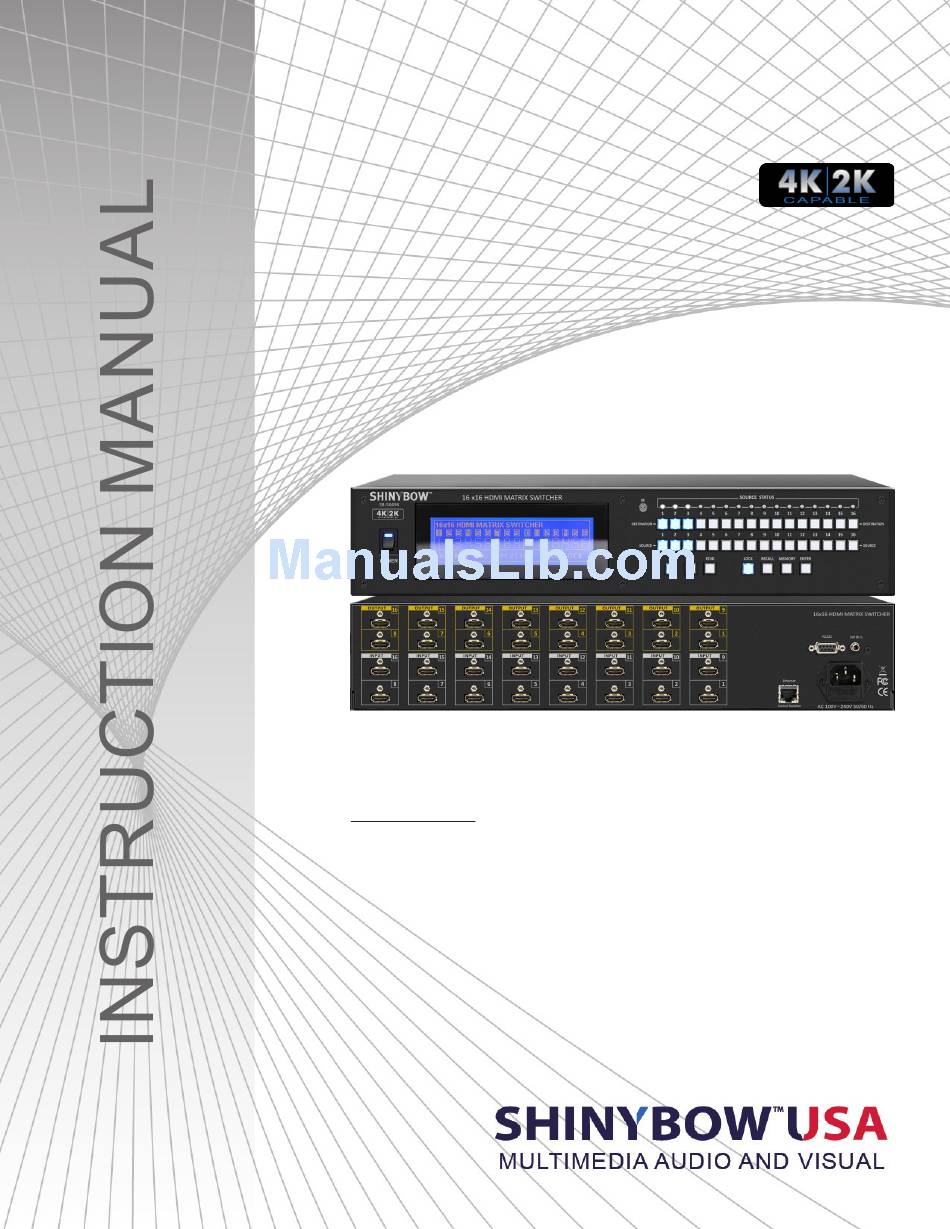

SB-5669K

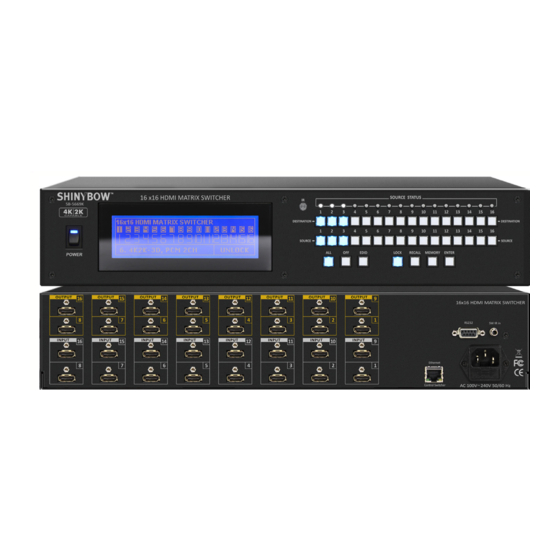

16x16 UHD 4K2K@30Hz HDMI Matrix Routing Switcher w/
Full EDID Management/Learning
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking
Post replacement screws to keep the internal HDMI jack secure. Removing the
HDMI screws without installing the HDMI Locking Post replacement screws will
void your warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5669K
Summary of Contents for Shinybow USA SB-5669K
- Page 1 SB-5669K 16x16 UHD 4K2K@30Hz HDMI Matrix Routing Switcher w/ Full EDID Management/Learning IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI Matrix Routing Switcher Series Thank you for purchasing the SB-5669K 16x16 HDMI Matrix Routing Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 16x16 HDMI matrix routing switcher. -
Page 4: Features & Contents
• Universal power adaptor AC100V~AC240V, 50/60Hz PACKAGE CONTENTS Check that you have the following components: • SB-5669K Matrix Routing Switcher • RS-232 V2.0 / Ethernet V1.0 Protocol Instructions • IR Remote Control (SW-5669) • 19 inch Ear mount bracket (Part # 2U-440L) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (16) HDMI Inputs to (16) HDMI Outputs matrix switcher • HDMI Support: HD 1080p@60Hz, 4K2K@30Hz, H36-bit deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 1.3 & CEC Compliant • Video Bandwidth: Double Data Rates: 340MHz, total 6.7Gbps bandwidth • Digital Video Support: HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K@30Hz up to 36bit deep color • Inputs (HDMI): (16) HDMI (HDMI or DVI digital source) • Outputs (HDMI): (16) HDMI (To Destination) -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assign the same source to all destinations. Operation 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
- Page 8 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of (32). Presets are stored in local memory using Source keys 1 thru 16 or Destination keys 1 thru 16 as the memory preset location. - Configure desired matrices.
- Page 9 FRONT PANEL - FUNCTION KEYS - 7 EMBEDDED & LEARNING EDID MODES FRONT PANEL 16. SELECT (7) EMBEDDED EDID MODES: Select & change current EDID mode via (7) Embedded EDID modes. Used to display and change current EDID mode. - Press EDID to select new EDID mode. - Press SOURCE row #1 or #2 to select (7) Embedded EDID modes.
-
Page 10: Back Panel
BACK PANEL-SWITCH CONTROLS BACK PANEL 1. POWER INLET: POWER SOCKET : The switcher is fitted with a DC power plug input connector. Ensure that the plug is of an approved type and is of Connector Type: IEC 60320 C13 sufficient current carrying connector capacity with the correct voltage and connector polarity. - Page 11 BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL 5. HDMI INPUTS 1 ~ 16: HDMI CONNECTOR: Connects a HDMI signal source to this Input. HDMI female connector Note: With proper adapters, the switcher This HDMI port supports HDMI with embedded audio and DVI with AUX audio sources.
-
Page 12: Hdbaset I/O Transmission & Cable Extension Lengths
HDBASET I/O TRANSMISSION & CABLE EXTENSION LENGTHS ™ HDBASET I/O TRANSMISSION ™ Category Cable Lengths via the Switcher and HDBaseT Receivers ™ CABLE TYPE PIXEL CLOCK RATE CAT5e CAT6 CAT6 RESOLUTION (MHZ) (70M) (100M) (100M) 1024x768@60Hz 65.00 MHZ 1280x720p@60Hz 73.84 MHZ 1920x1080i@60Hz 74.25 MHZ 1280x1024@60Hz... -
Page 13: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 14 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 32CD POWER ON: 32CD A15E ALL: 32CD B04F RECALL: 32CD B24D POWER OFF: 32CD A25D OFF: 32CD B14E MEMORY: 32CD B44B EDID: 32CD B748 LOCK:...
-
Page 15: Edid Functions
EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3. - Page 16 EDID FUNCTION-SET UP EDID FUNCTION SETUP EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
- Page 17 EDID FUNCTION-7 EMBEDDED EDID MODES EDID FUNCTION: (7) EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Select- ® ® ® ing this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 7, and then select mode 1 for fast speed start ®...
-
Page 18: Edid Function
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER LEARNING EDID SINGLE TO SINGLE Learning Destination #12 EDID To Source #5 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. - Page 19 EDID FUNCTION - LEARNING MODE 1 LEARNING EDID MODE-1 FUNCTION FOR HDMI MATRIX SWITCH LEARNING HDMI EDID Learning HDMI From Destination To Source Learning HDMI EDID Single HDMI-Destination to Multiple / All Sources EDID > DESTINATION > SOURCE > ENTER Press EDID >...
- Page 20 EDID FUNCTION - LEARNING MODE 1 EDID FUNCTION: LEARNING EDID MODE-1-SINGLE TO MULTIPLE Learning Mode-1 Single Destination To Multiple Or All Sources EDID > DESTINATION 1 THRU 16 > DESTINATION 1 THRU 16 > SOURCE 1 THRU 16 > ENTER Key Sequence: The EDID for HDMI or HDBaseT has been learned from the Destination port to the Source port.
-
Page 21: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 22: Ethernet / Rs-232 Protocol
ETHERNET / RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. Example of the commanded string to select Inputs: FUNCTION COMMAND VARIABLES... -
Page 23: Typical Application
INSTALLING DIAGRAM Samples Connection: 1. Using the external IR or RS-232 commands to control the SB-5669K via a PC or using the Receiver extender (SB-100) to transmit the SB-5669K’s IR signal to control the switches I/O. 2. Switch control via bi-directional IR, RS-232 and Ethernet. - Page 24 TYPICAL APPLICATION-HDBaseT APPLICATION ™ INSTALLING DIAGRAM Sample Connection: Using IR transmitters (SB-101) and IR receiver (SB-100) with the HDBaseT Transmitter SB-6335T & Receiver SB-6335R to control a ™ projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-6335T HDBaseT ™ ™...
- Page 25 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK.
-
Page 27: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 28 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
