12x2 HDMI Routing Selector Switch (both outputs mirrored)
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
Advertisement
Related Manuals for Shinybow USA SB-5612
Summary of Contents for Shinybow USA SB-5612

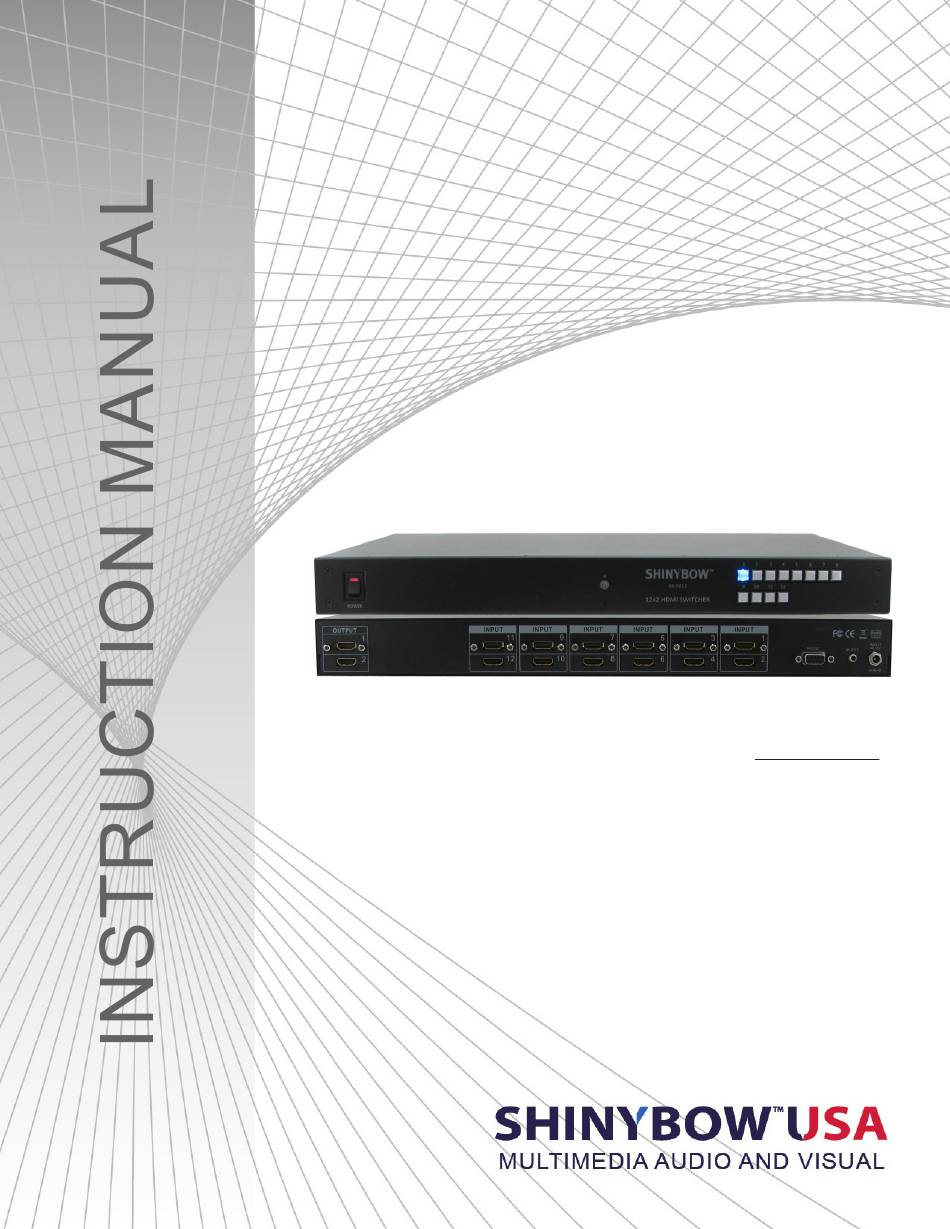

- Page 1 SB-5612 12x2 HDMI Routing Selector Switch (both outputs mirrored) IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Do not attach the power supply cabling to building surfaces. The SB-5612 is a high-performance 12x2 HDMI routing switcher • Use only the supplied power supply unit (PSU). Do not use the for HDMI signals. This switcher supports a wide frequency range PSU if it is damaged. -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES • (12) HDMI digital source devices matrix switched to (2) HDMI devices • HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 1. compliant • Wide frequency range 25MHz ~ 340 MHZ. Supports HDMI 1.3b 3D formats •... - Page 5 FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
-
Page 6: Ir Extender
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug input connector. Ensure that the plug used is of an approved type and DC Jack - Inner OD Ø 2.1mm (+) is of sufficient current carrying connector capacity with the correct Outside OD Ø... - Page 7 REMOTE CONTROL & REMOTE PROTOCOL COMMANDS Before making any connections to the SB-5612. Observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point.
- Page 8 RS-232 & ETHERNET SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V16 Example of the commanded string to select Inputs: FUNCTION COMMAND VARIABLES Select source Output xx; xx = Input Channel 01=Source1 09=Source9 02=Source2 0A=Source10 03=Source3 0B=Source11 04=Source4...
- Page 9 IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
-
Page 10: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using SB-5612 switch (12) sources to (2) displays via HDMI signals via SB-100 IR Receiver. (Max 300M distance). NOTE: 1. SB-5612 12x2 HDMI Switcher: HDMI Input: (12) Sources HDMI Outputs: (2) Ports (same picture) 2. - Page 11 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
- Page 12 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
