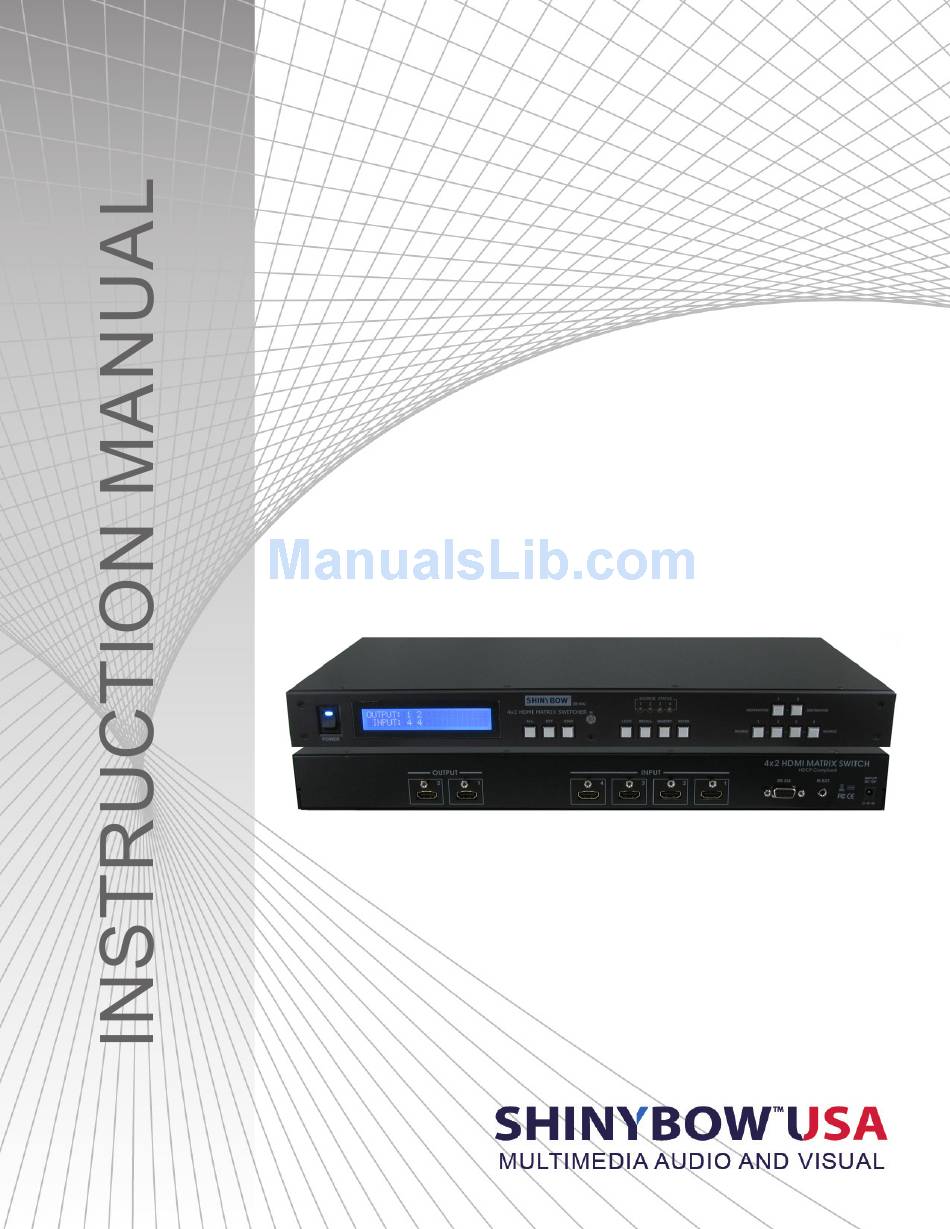

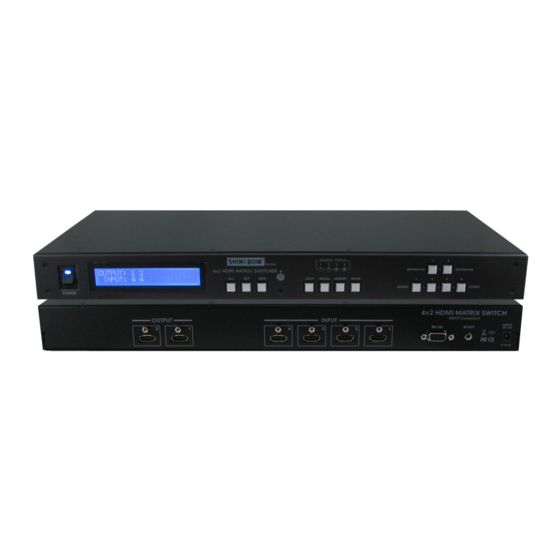

- Page 1 SB-5642LCM 4x2 HDMI Matrix Routing Switcher w/ Full EDID Management/Learning...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI Matrix Switcher Series Thank you for purchasing the SB-5642LCM 4x2 HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 4x2 HDMI Matrix switcher. -
Page 4: Features & Contents
• The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components; • SB-5642LCM Matrix Routing Switcher • Wireless Remote Control with batteries • Rack Mount Kit • IR Extender (SB-100) •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of Switcher: 4x HDMI inputs To 2x HDMI Outputs Matrix Switcher • HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 225Mhz, Total 6.75Gbps bandwidth • Digital Video Support: Full HD resolution: 480i / 480p / 720p / 1080i / 1080p • Digital Audio Support: •... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - OFF: Disables (mute) video to selected channels. Either destinations. - Press OFF button followed by any Destination channel. - Press 1 thru 2 output destination. The display will show “ 0 “ for the selected channel indicating no video selected.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY: The system will show store presets, up to a total of 6. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 2 as the memory preset location. - Configure desired matrices.
-
Page 9: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fitted with a DC power plug input DC Jack - Inner OD ᴓ 2.1mm (+ ) connector. Ensure that the used is of an approved type and is Outside OD ᴓ... -
Page 10: Remote Control
REMOTE CONTROL Before making any connections observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 11 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 1BE4 DATA CODE : POWER ON : 1BE4 A15E POWER OFF : 1BE4 A25D : 1BE4 B04F : 1BE4 B14E EDID : 1BE4 B748 LOCK...
-
Page 12: Edid Functions
EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1 . Press the EDID button The display will show the currently selected EDID mode Step 2 . Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. -
Page 13: Edid Function
EDID FUNCTION EDID FUNCTION : 8X EMBEDDED EDID MODES EDID function : 8x Embedded EDID Modes Mode 1. FSS (Fast Speed Start) Automatic capture of the most suitable EDID from Destination to Source. Mode 2. H24-3D (1080p-24 bits) Audio Support : PCM 2CH Mode 3. - Page 14 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning EDID Single to Single Example : Learn Destination #2 EDID To Source #3. Step 1 . Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2 .
-
Page 15: Ir Extender
IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 16: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0.1 RS-232 SERIAL CONNECT RS-232 PROTOCOL COMMANDS ( RS-232 Control driver V2.0.1 ) The Shinybow switcher can be controlled via the RS-232 serial control Pin RS-232 Definition port to allow for interfacing to a PC, or similar third party control system. -
Page 17: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. Control Projector Over CAT5e/6/7 Extender: SB-6335 HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2. Preview Output : Picture as same OUTPUT-1 3. - Page 18 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T and SB-6335R to control a Satellite Receiver. NOTE : 1. Control Satellite Receiver Over HDMI CAT5e/6/7 Extender from room: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2.
-
Page 19: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 20 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
