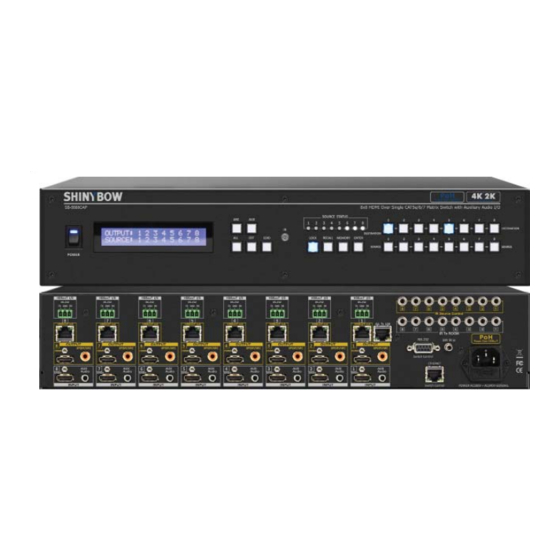

Shinybow USA SB-5688CAP Instruction Manual

8x hdmi inputs/8x hdmi & 8x hdbaset poh outputs uhd 4k2k matrix routing switch w/ edid management/learning w/ auxillary audio i/o, 4k/2k capable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

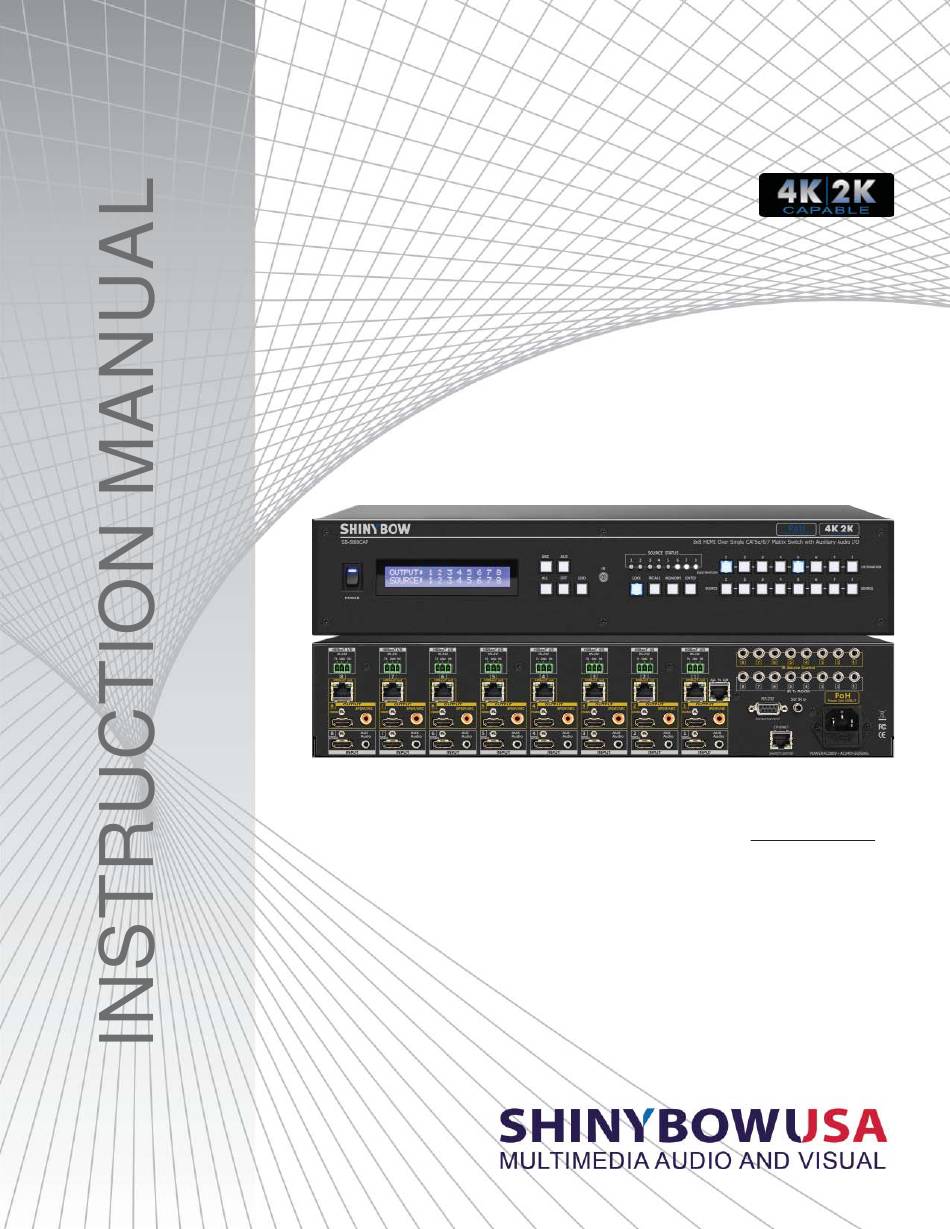

SB-5688CAP
™
8x HDMI Inputs / 8x HDMI & 8x HDBaseT
PoH Outputs
UHD 4K2K Matrix Routing Switch w/ EDID Management/Learning
w/ Auxiliary Audio I/O
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5688CAP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-5688CAP

Summary of Contents for Shinybow USA SB-5688CAP

  • Page 1 SB-5688CAP ™ 8x HDMI Inputs / 8x HDMI & 8x HDBaseT PoH Outputs UHD 4K2K Matrix Routing Switch w/ EDID Management/Learning w/ Auxiliary Audio I/O IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure.
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    AUDIO MATRIX SWITCHER SERIES ™ ™ Thank you for purchasing the SB-5688CAP HDMI-HDBaseT Matrix Switcher with PoH (Power Over HDBaseT ). You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to ™...

  • Page 4: Introduction

    HDMI output port is capable of driving cable lengths for 1080p up to 98 ft (30M) & 4K2K up to 66 ft (20M). Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5688CAP has (1) HDMI and Auxiliary Audio (analog stereo audio) connector per input, effectively making this an (8) In by (16) Out switcher (same signal on both outputs).

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (8) Outputs HDMI over HDBaseT ™ Matrix Switch with Audio and Extension • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats ™ • HDBaseT Support: Bi-directional IR, RS-232, Multi format Audio, Ethernet and PoH function, over one CATx cable •...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last confi guration will be evoked.
  • Page 7 FRONT PANEL-ARC FRONT PANEL-ARC 9. FUNCTION KEY - ARC: Audio Return Channel (ARC) is a feature that sends audio from the TV back down the HDMI cable to its source device, in this case, the switcher. Not all displays support ARC, check your Users Guide for additional information.
  • Page 8 FRONT PANEL-AUX FRONT PANEL- AUX 10. FUNCTION KEY - AUX (The audio additional on the “ Audio / ARC” Port ): The AUX FUNCTION feature allows you to replace the embedded HDMI audio signal with an audio signal that is connected to the switchers Audio AUX Input. Using the AUX function, this replaces the audio and does not mix the audio.
  • Page 9 FRONT PANEL-EDID FRONT PANEL-EDID 12. FUNCTION KEY - EDID (1): Used to display/change current EDID mode. - Press EDID to select new EDID mode or select. - Press SOURCE row #1 or #2 to select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
  • Page 10 FRONT PANEL-ALL-OFF-LOCK-ENTER FRONT PANEL-ALL-OFF-LOCK-ENTER 13. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assigns the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
  • Page 11 FRONT PANEL-RECALL-MEMORY FRONT PANEL-RECALL-MEMORY 17. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of (16). Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 at the memory preset location.

  • Page 12: Back Panel

    BACK PANEL-SWITCH CONTROLS BACK PANEL-SWITCH CONTROLS 1. DC POWER INLET: POWER SOCKET: The switcher is fi tted with a AC power plug Connector Type: IEC 60320 C13 input connector. Be sure it is an approved type and is of suffi cient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 13 BACK PANEL-HDMI INPUT / OUTPUT BACK PANEL-HDMI INPUT / OUTPUT 5. INPUTS- 1,2,3,4,5,6,7, & 8 HDMI: HDMI CONNECTOR: Connects a HDMI signal source HDMI Type A SMD 19pin female direct to the HDMI digital video/audio female HDMI connector. socket connector This HDMI port supports HDMI and DVI digital video sources.
  • Page 14 BACK PANEL-HDBASET CONTROLS ™ BACK PANEL-HDBASET CONTROLS ™ 9. HDBaseT RS-232: 1, 2, 3, 4, 5, 6, 7 & 8 CONNECTIONS: REMOTE PORT: ™ Terminal Block-3pin female socket (8) RS-232 control ports allow for interfacing to a PC. Controls I/O via HDBaseT ™...
  • Page 15 BACK PANEL-HDBASET ™ BACK PANEL-HDBASET ™ 15. OUTPUT: 1, 2, 3, 4, 5, 6, 7 & 8 HDBaseT (Transmitter): HDBASET TRANSMITTER CONNECTOR: ™ ™ Sends (8) HDMI and control signals via the (8) HDBaseT ™ (8) RJ-45 Jack 8P8C female socket Transmitters to link (8) external HDBaseT ™...

  • Page 16: Remote Control

    REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...

  • Page 17: Remote Protocol Commands

    REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 46B9 POWER ON: 46B9 A15E LOCK: 46B9 B54A EDID: 46B9 B748 POWER OFF: 46B9 A25D RECALL: 46B9 B24D ARC: 46B9 B847 ALL: 46B9 B04F MEMORY:...
  • Page 18 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE: 46B9 IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 46B9 11EE SOURCE #1 : 46B9 21DE SOURCE #1 : 46B9 31CE SOURCE #2 : 46B9 12ED...

  • Page 19: Edid Functions

    EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3.
  • Page 20 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status. Step 3.
  • Page 21 EDID FUNCTION EDID function for HDMI Matrix Switcher ® Mode 1. FSS (Fast Speed Start ® Fast Speed Start ® mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may fi rst select one ®...
  • Page 22 EDID FUNCTION LEARNING EDID SINGLE TO SINGLE Learning Destination #2 EDID To Source #3 Step 1. Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #2 button row Copy the Destination #2 Display EDID.
  • Page 23 EDID FUNCTION EDID MULTIPLE LEARNING MODE-2 The MULTIPLE LEARNING MODE-2 feature is part of a fi rmware update released after JUNE 2014. If you do not see the MULTIPLE LEARNING MODE-2 feature then you do not have the latest fi rmware. You should contact your place of purchase for availability of a fi rmware update.

  • Page 24: Typical Application

    INSTALLING DIAGRAM Sample Connection: 1. Using IR External, RS-232 or Ethernet commands to control the SB-5688CAP via PC or SB-100 IR receiver to transmit the SB- 5688CAP’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio.
  • Page 25 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: ™ ™ Using SB-5688CAP HDBaseT Transmitter and one HDBaseT Receiver (SB-6320R) to control a projector via RS-232 or IR signals. NOTE: 1. IR Control Projector Over HDBaseT ™ Extender: SB-5688CAP HDBaseT ™ ™ Transmitter / SB-6320R HDBaseT Receiver ™...
  • Page 26 TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using SB-5688CAP with IR Transmitters (SB-101) via SB-6320R to control a IR signal from Satellite Receiver. NOTE: ™ 1. IR Control Satellite Receiver Over HDBaseT Extender via CAT6/6a/7 cable: HDBaseT ™ Transmitter: SB-5688CAP ™...

  • Page 27: Ir Extender

    IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 28 IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 IR in DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.

  • Page 29: Rs-232 / Ethernet Serial Interface

    ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE TO CONNECT A PC OR CONTROL SYSTEM - VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON...
  • Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 31 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
