Power Supply Specifications:
AC Input:
Output:
Battery:
Stand-by Current:
EOL Resistor:
(end of line)
Stand-by Specifications:
Stand-by Batteries
24VDC/12AH
(use two (2) 12VDC batteries in series)
24VDC/7AH
12VDC/12AH
Installation Instructions:
The AL800ULADA should be installed in accordance with article 760 of The National Electrical Code as well as
NFPA 72 and all applicable Local Codes.
1. Mount the AL800ULADA in a desired location. It is recommended to first review the following tables for screw
terminals, switch selection and LED status indications. This will greatly facilitate installation hook-up.
Carefully review:
Power Supply Specifications
Stand-by Specifications
Output Programming Selection Table
LED Status Indication Table
Terminal Identification Table
Typical Application Diagrams
2. Connect the black and white transformer leads of AL800ULADA to a separate unswitched
AC circuit (115VAC, 60Hz) dedicated to the Fire Alarm System (Fig. 1, pg.3).
Connect green lead to earth ground.
3. Set switch SW1 on Power Supply Board for desired output voltage. Open for 24VDC (factory set), Close for 12VDC.
4. Measure output voltage before connecting devices. This helps avoid potential damage.
5. Connect battery to terminals marked [+ BAT - -] on the Power Supply Board (battery leads included).
Use two (2) 12VDC batteries connected in series for 24VDC operation.
6. Set output selection switches marked (OUT1 through OUT4) to follow corresponding input (IN1 & IN2) and desired
output signal type (Temporal Code 3, Strobe synchronization, Steady output or input to output synchronization)
(Output Programming Selection Table pg. 4).
7. Connect FACP output to desired AL800LGK logic board inputs and notification appliances to desired AL800LGK
logic board outputs (Typical Application Diagrams pg. 7).
8. For connection of smoke detectors, digital dialer (Optional Hookup Diagram pg. 8).
9. To enable ground fault detection remove insulating washer located between standoff and the Power Supply Board
(Fig. 4B, pg. 8) and replace between mounting screw and the Power Supply Board (Fig. 4C, pg. 8).
General Information:
• For all Class B hookups SW1 & SW2 on the AL800LGK logic board must be open.
For all Class A hookups SW1 & SW2 on the AL800LGK logic board must be closed.
• AC Fail condition will report approximately one (1) minute after loss of AC. To delay report for 6 hours cut jumper J1
on the Power Supply Board (AC trouble output delay option).
115VAC / 3.2 amp @ 60Hz
12 - 24VDC. Maximum 2.0 amp per output.
Total of 8 amp in Alarm Condition.
For 12VDC operation use a 12VDC / 12AH battery
For 24VDC operation use two (2) 12VDC / 12AH or two (2)
12VDC / 7AH batteries connected in series.
75mA
2.2K (2200 ohm)
Stand-by Time
Total Amp/Minutes
24 Hours
60 Hours
24 Hours
24 Hours
60 Hours
(pg. 3)
(pg. 3)
(pg. 4)
(pg. 4)
(pg. 5)
(pg. 7)
- 3 -
Alarm Output
8 Amp/15 Minutes
8 Amp/5 Minutes
8 Amp/5 Minutes
8 Amp/15 Minutes
8 Amp/5 Minutes

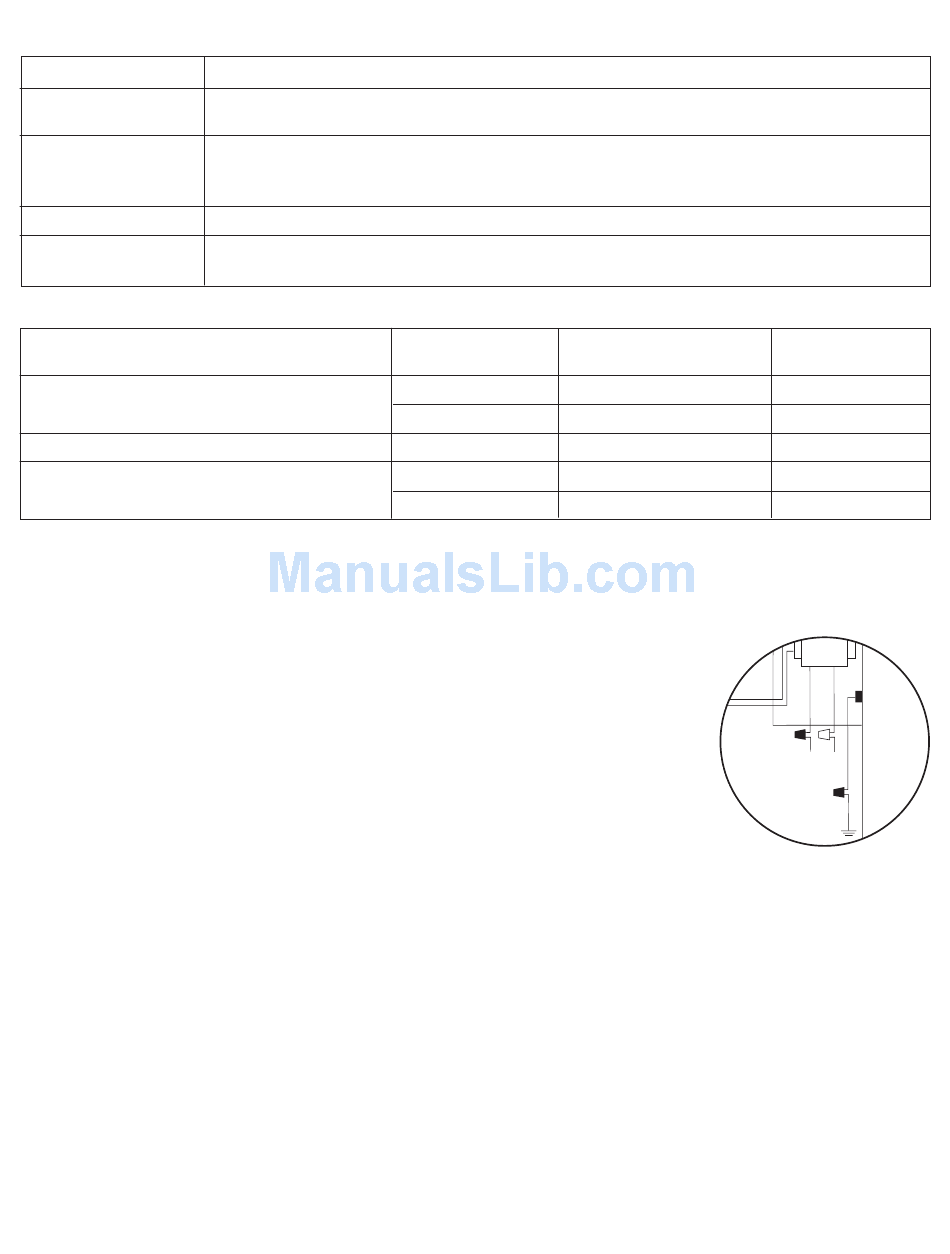

Fig. 1
Aux Output
Current
50mA
-
-
50mA
-
XFMR
Black White
Lead
Lead
115VAC input
50/60 Hz,
3.2 amp
Green
Lead
(ground)
