7.3 MIDI

The SCANCOMMANDER enables to record playback commands like recalling
memories, chasers, sequences and GO button pushes on to a MIDI sequencer.
During playback of the sequencer, the SCANCOMMANDER will receive these
commands as soon as the MIDI input is activated.

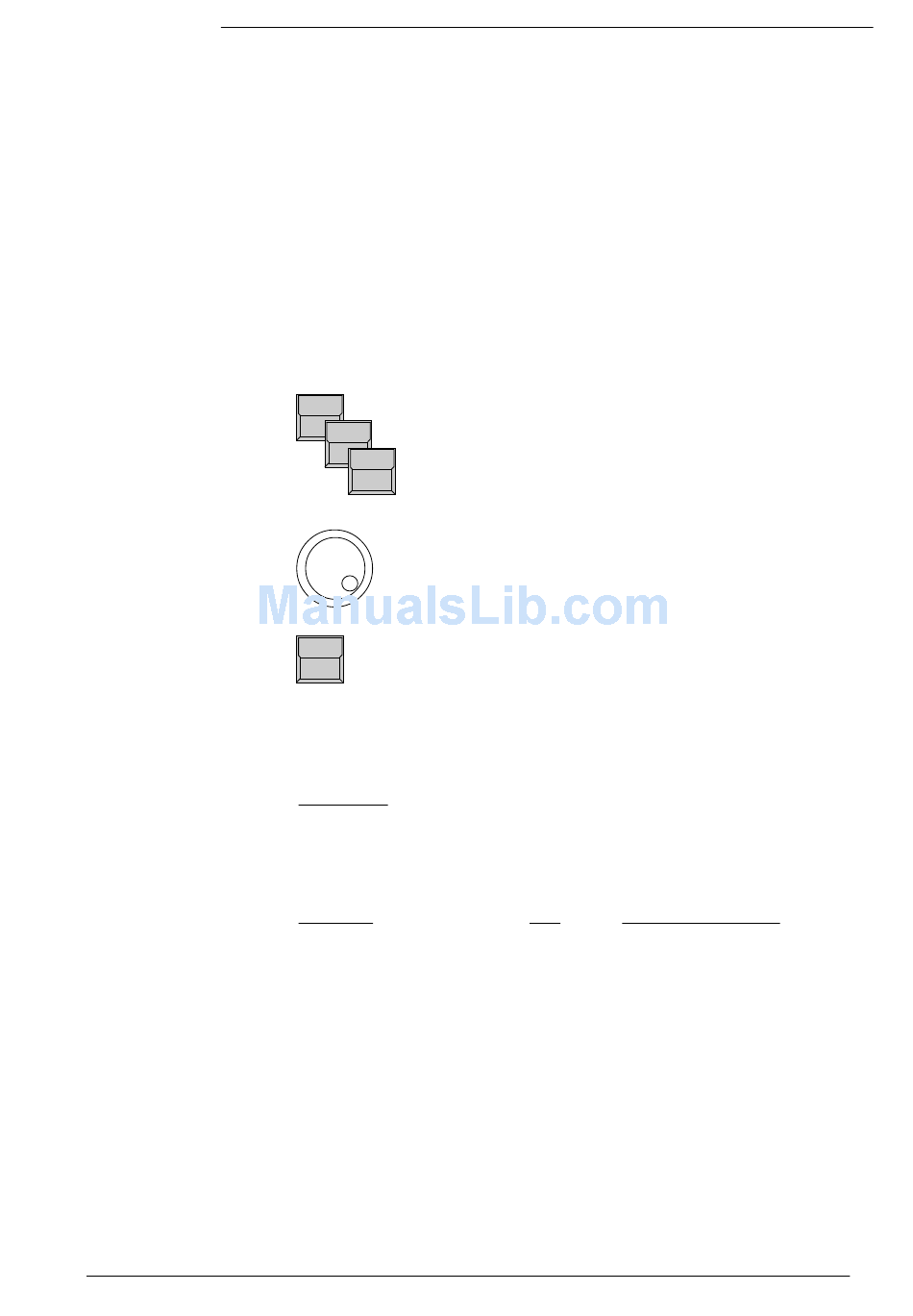

7.3.1 Choosing the MIDI channel

REMOTE at the Top Menu
MIDI
MIDI IN or MIDI OUT will be displayed inverted.
Encoder 1-3
MIDI IN ON/OFF in the Remote top menu
The Scancommander uses Control Change Data exclusively.
Commands:
The command 1011nnnn (Bn hex) (nnnn=MIDI channel) will always be sent as
status byte at first.
Again: "B" means Control Change, "nnnn" the MIDI Channel.
The following two bytes are the data bytes:
Command
push Memory button A1
etc......
push Memory button A30
push Memory button B1
etc......
push Memory button B30
push Memory button C1
etc......
push Memory button C30
push Memory button D1
etc......
push Memory button B30
push Sequence button 1
etc......
push Sequence button 16
push Go+ button
push Go- button
Selection of one of the MIDI channels 1-16.
Switching on and off the MIDI input. (MIDI output
works permanently.)
1.- 2.Data byte______
: 00 + 00
etc... etc...
: 00 + 29
: 00 + 30
etc... etc...
: 00 + 59
: 01 + 00
etc... etc...
: 01 + 29
: 01 + 30
etc... etc...
: 01 + 59
: 02 + 00
etc... etc...
: 02 + 15
: 03 + 00
: 03 + 01
(Memory A1)
etc..
(Memory A30)
(Memory B1)
etc..
(Memory B30)
(Memory C1)
etc..
(Memory C30)
(Memory D1)
etc..
(Memory D30)
(Sequence 1)
etc..
(Sequence 16)
(Go+)
(Go-)
