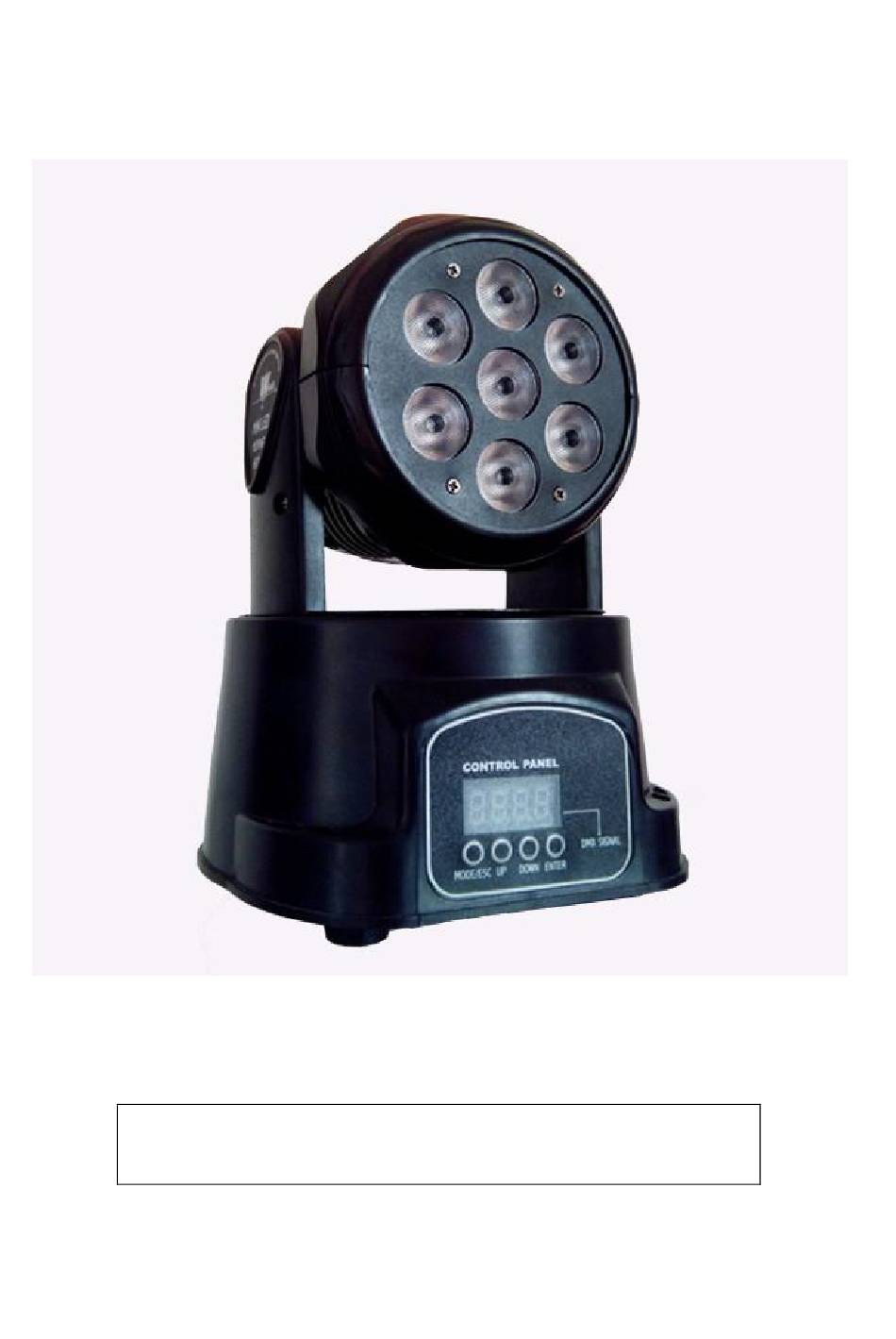

- Page 1 LH-C010 Mini Moving Head Wash User Manual This manual contains important information. Please read before operating fixture.
- Page 2 1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
- Page 3 2. Product introduction Power supply: AC90-240V 50/60HZ Power consumption: 150W LED: 7*10W RGBW 4in1 LED DMX Channels: 9CH / 14CH optional Shuttle: Flash rate: 0-10Hz Dimmer: 0~100% mechanic dimmer Maximum PAN-movement: 630 can be adjusted ...
- Page 4 LCD Display normally LCD Display inversion rdiS 14 Channel mode 14CH 14CH 9 Channel mode X motor 540 turn PA54 PA54 X motor 360 turn PA36 X motor 180 turn PA18 Y motor 270 turn Ti27 Ti27 Y motor 180 turn Ti18 Y motor 90...
- Page 5 4. Channel 9 Channel Mode : Channel Function 0-255 0-255 Tilt No effect 8-134 Dimming 135-239 Strobe from low to fast 240-255 No strobe 0-255 Red Dimming 0-255 Green Dimming 0-255 Blue Dimming 0-255 White Dimming 0-255 Motor speed 150-200 Reset 14 Channel Mode : Channel...
- Page 6 240-255 No strobe 0-255 Red Dimming 0-255 Green Dimming 0-255 Blue Dimming 0-255 White Dimming Color selection 8-231 Color combination 1 232-255 Color jump 0-255 Color change speed 0-142 Auto 143-255 Sound 150-200 Reset 5.Maintenance 1. Please keep the light in dryness and avoiding use in wet place. 2.
- Page 7 6. Statement The product has well capability and intact packing when leave factory. All of the user should comply with above warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 8 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
