Moxa Technologies V2616 Series Quick Installation Manual

V2616 Series

Quick Installation Guide

First Edition, August 2011

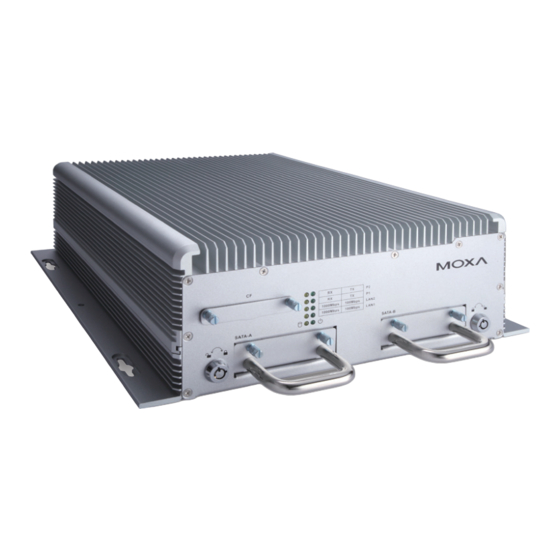

Overview

The V2616 Series EN 50155-certified embedded computers use
the Intel Core 2 Duo SP9300 x86 processor and feature 2
RS-232/422/485 serial ports, dual LAN ports, and 3 USB 2.0 hosts.
In addition, the V2616 computers provide VGA and DVI-D outputs,
and are EN 50155 certified, making them robust enough for
railway and industrial applications.

Package Checklist

Before installing the computers, verify that the package contains
the following items:
• V2616 embedded computer.
• Wall mounting kit
• PS2 to KB/MS Y-type cable
• Documentation and Software CD or DVD
• Quick installation guide (printed)
• Product Warranty Statement (printed)
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

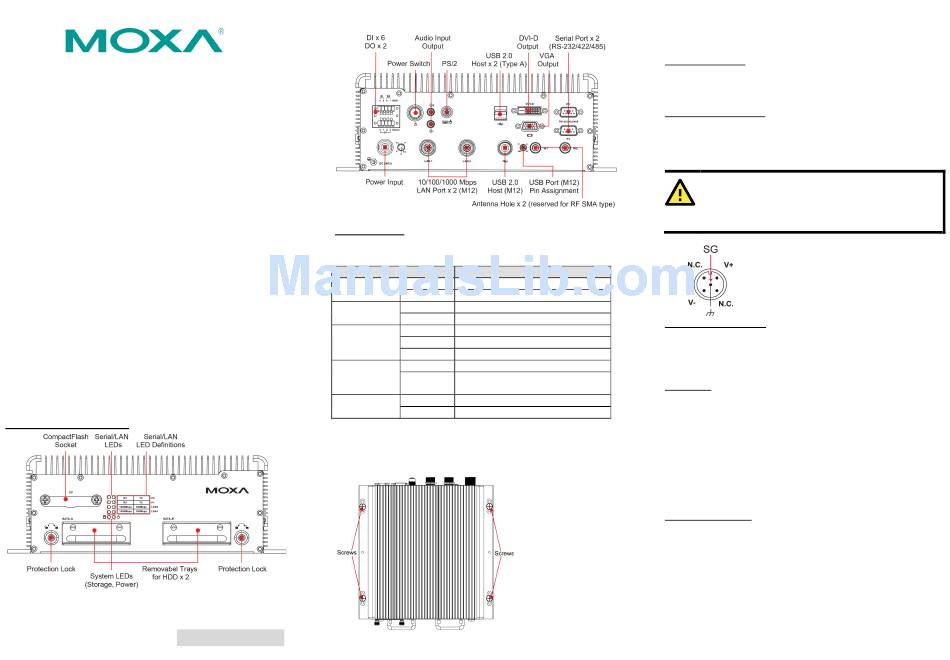

V2616 Panel Layout

V2616 Front & Rear Views
P/N: 1802026160010
– 1 –

LED Indicators

The following table describes the LED indicators located on the
front and rear panels of the V2616.
LED Name LED Color LED Function
Power Green Power is on and functioning normally
Off Power is off, or power error exists
Storage Yellow CF/HDD card is detected
Off CF/HDD card is not detected
LAN (1, 2) Green 100 Mbps Ethernet mode
Yellow 1000 Mbps Ethernet mode
Off 10 Mbps or no activity
Tx (P1-P2) Green Serial ports P1-P2 transmitting data
Off Serial ports P1-P2 not transmitting
data
Rx (P1-P2) Yellow Serial ports P1-P2 receiving data
Off Serial ports P1-P2 not receiving data

Installing the V2616

The V2616 comes with two wall-mounting brackets. Use two
screws on each side to attach the V2616 to a wall or cabinet.
– 2 –

Connector Description

Power Connector

Connect the 24 VDC power line with M12 connectors to the V2616
computer. If the power is supplied properly, the Power LED will
light up. The OS is ready when the Ready LED glows a solid green.

Grounding the V2616

Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to connecting
the power.
ATTENTION
This product is intended to be mounted to a well-grounded
mounting surface, such as a metal panel.
SG: The Shielded Ground (sometimes called
Protected Ground) contact is the central pin
of the power input connector. Connect the
SG wire to an appropriate grounded metal
surface.

VGA and DVI Outputs

The V2616 comes with a D-Sub 15-pin female connector for a VGA
monitor; it also comes with a DVI-D connector for the DVI display.
These output interfaces are all located on the front panel. Use the
proper cable when connecting devices to the V2616.

PS/2 Port

The V2616 embedded computer comes with a PS/2 mini-DIN
connector to connect to a PS/2 keyboard and PS/2 mouse. Use the
Y-type cable to convert the mini-DIN connector into two 6-pin
mini-DIN connectors to connect both a PS/2 keyboard and PS/2
mouse at the same time. You may also use the USB ports to
connect your USB-based keyboard and mouse. Note that without a
Y-type cable, the PS/2 connector on the V2616 can only work with
a PS/2 keyboard. A PS/2 mouse will not function when directly
connected to the PS/2 connector on the V2616 embedded
computer.

CompactFlash Slot

The V2616 has a CompactFlash slot located on the front panel for
storing the operating system. It supports CF Type-I/II with DMA
mode. To install a CompactFlash card, remove the outer cover, and
then insert the CF card in the socket. When finished, push the
cover into the socket and fasten the screws.
Note that the operating system (Linux or Windows XP Embedded)
has already been stored on the CompactFlash card. If you change
the CompactFlash card, you will need to re-install the V2616's
– 3 –
