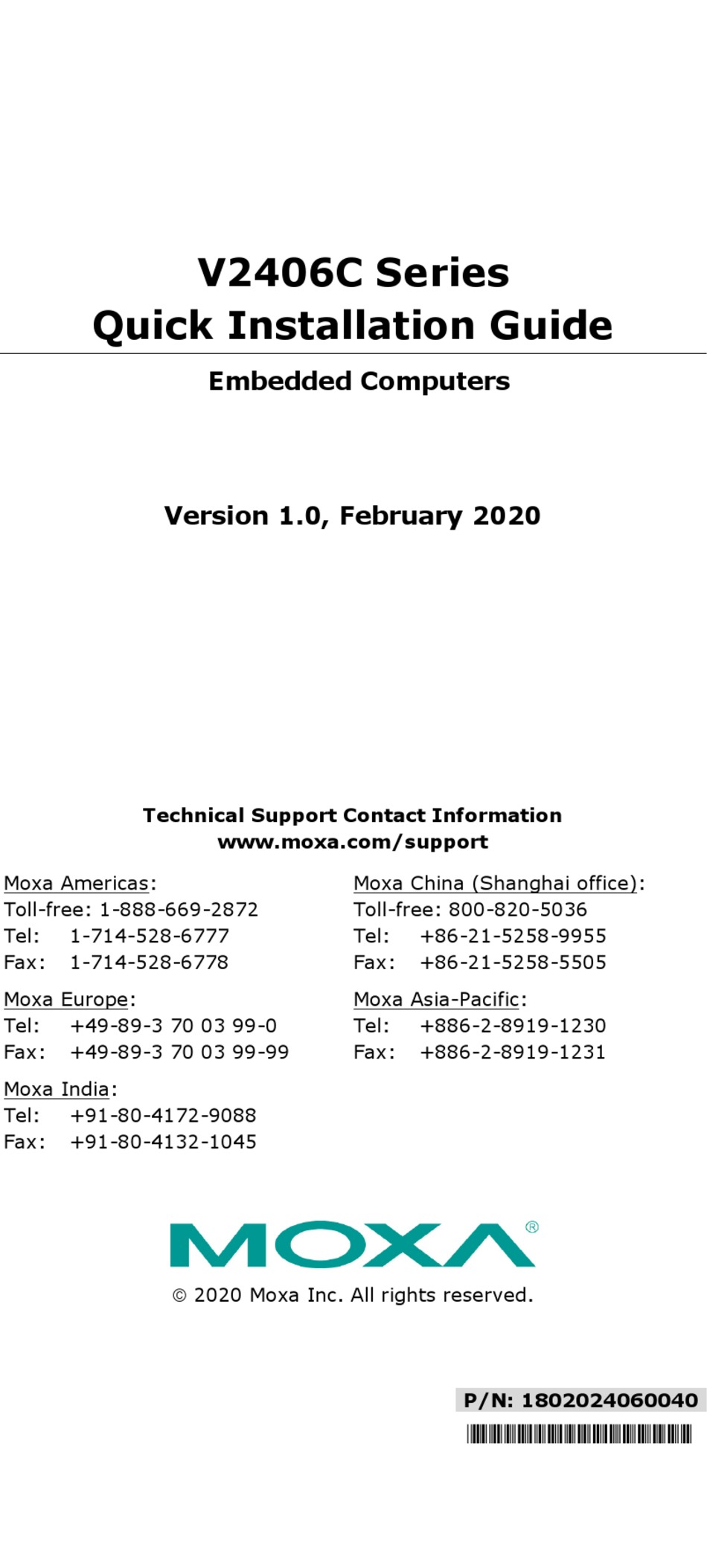

- Page 1 V2406C Series Quick Installation Guide Embedded Computers Version 1.0, February 2020 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
-
Page 2: Package Checklist
Overview The V2406C Series embedded computers are based on the Intel® 7th generation processor and feature 4 RS-232/422/485 serial ports, dual LAN ports, and 4 USB 3.0 ports. The V2406C computers come with 1 VGA output and 1 HDMI port with 4k resolution support. The computers... - Page 3 Rear View LED Indicators The following table describes the LED indicators located on the front and rear panels of the V2406C computer. LED Name Status Function Power Green Power is on (On power No power input or any other power button) error Ethernet...
- Page 4 Installing the V2406C The V2406C computer comes with two wall-mounting brackets. Attach the brackets to the computer using two screws on each side. Ensure that the mounting brackets are attached to the V2406C computer in the direction shown in the following figure. The four screws for the mounting brackets are included in the product package.
- Page 5 Connecting the Power The V2406C computers are provided with M12 power input connectors on the front panel. Connect the power cord wires to the connectors and then tighten the connectors. Push the power button; the Power LED (on the power button) will light up to indicate that power is being supplied to the computer.
-
Page 6: Digital Inputs
Refer to the following table for pin assignments: Pin RS-232 RS-422 RS-485 RS-485 (4-wire) (2-wire) TxDA(-) TxDA(-) – TxDB(+) TxDB(+) – RxDB(+) RxDB(+) DataB(+) RxDA(-) RxDA(-) DataA(-) – – – – – – – – – Ethernet Ports The V2406C has 2 100/1000 Mbps RJ45 Ethernet ports with M12 connectors on the rear panel. - Page 7 3. Turn the disk and tray arrangement around to view the rear side of the tray. Fasten the four screws to secure the disk to the tray. 4. Unfasten the screw on 5. Find the location of the disk the storage slot cover tray rail.
- Page 8 NOTE This unit is intended to be supplied by a DC Busway, output rated 24 to 110 VDC, minimum 2.74 A, and a DC Power source with voltage tolerance of +20% and -15%. For example, a UL Listed power source suitable for use at a Tma 75°C minimum, rated at 24 to 110 VDC and 2.74 A minimum.
- Page 9 4. Separate the connector and remove the two screws on the metal plate. 5. Replace the new battery in the battery holder, place the metal plate on the battery and fasten the two screws tightly. 6. Reconnect the connector, place the battery holder into the slot, and secure the cover of the slot by fastening the two screws on the cover NOTE Be sure to use the correct type of battery.
