Moxa Technologies V2616 Series Quick Start Manual

Railway Computers
V2616 Series
x86-based embedded computer with Intel Core 2 Duo, dual LANs (M12
connectors), serial ports, 6 DIs, 2 DOs, VGA, DVI-D, 3 USB ports, 1
SATA storage connector, 2 removable storage trays, CompactFlash
Introduction
V2616 Series embedded computers are based on the Intel Core 2 Duo
x86 processor, and feature 2 RS-232/422/485 serial ports, dual LAN
ports, and 3 USB 2.0 hosts. V2616 computers also provide VGA and
DVI-I outputs, and are also compliant with the essential sections of EN
50155 covering operating temperature, power input voltage, power
surges, ESD, and vibration, making them particularly well-suited for
railway and industrial applications.
The V2616's CompactFlash socket provides these computers with the
reliability needed for industrial applications that require data buffering

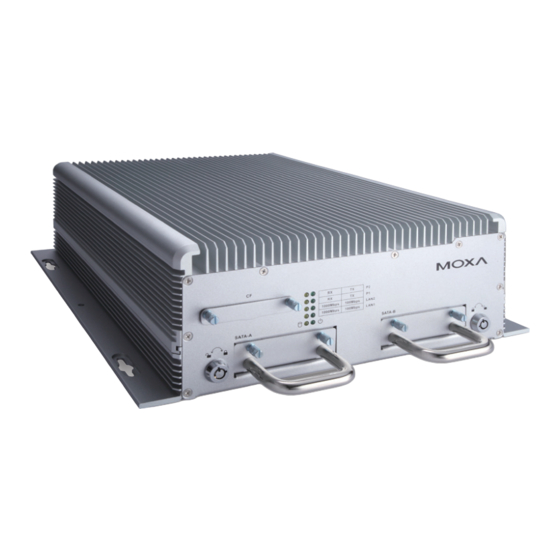

Appearance
Front View
Protection Lock
1
Seria/LAN
CompactFlash
LEDs
Socket
System LEDs
(Storage, Power)
›
High performance network video recorder for rolling stock
applications
›
Compliant with EN 50121-4 and essential sections of EN 50155
›
IEC 61373 certified for shock and vibration resistance
›
Two removable drive trays for 2.5" SSDs or HDDs
›
Supports RAID 1/0 functions for data reliability
and storage expansion. Most importantly, the V2616 computers come
with 2 removable slots for inserting additional storage media, such as
hard disks or SSD drives, and can offer RAID 0 and RAID 1 functions
for data reliability.
The V2616 series come pre-installed with Linux or Windows
Embedded Standard 2009 to provide programmers with a familiar
environment in which to develop sophisticated, bug-free application
software at a low cost.
Serial/LAN
LED Definitions
Removabel Trays
for HDD x 2
Protection Lock
