Checking Package Contents; Connecting The Hardware - AV TOOL AVT-3350 Instruction Manual

3.0

CHECKING PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
• 1x AVT-3350 Video to PC Up Converter
• 1x 100~240VAC to 5VDC Power Adapter
• 1x User Manual
• 1X HD-15 to 3 RCA Cable
Note: Please retain the original packing material should the need ever arise to
return the unit. If you find any items are missing, contact your reseller or TV One
immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0

CONNECTING THE HARDWARE

Connect a Video Source to the input of the AVT-3350 Analog Video to PC/HD
Scaler, connect its output to a PC monitor or HD capable component TV and

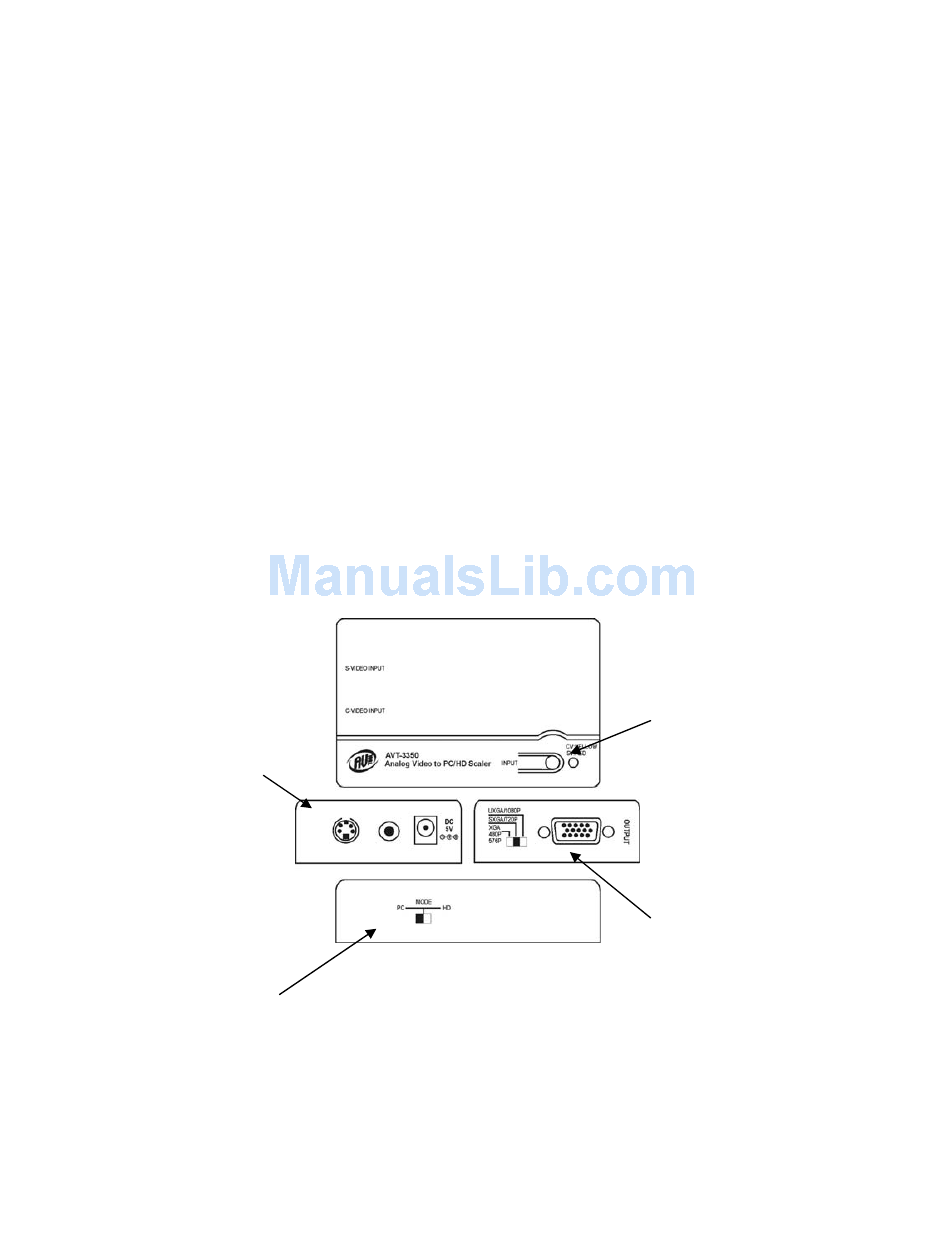

lastly connect the AC to DC Power Adapter. The drawing below shows the
locations of the input, outputs, power switch and power connector.
The input side
of the AVT-3350
is where the
Composite
Video, S-Video
and the 5VDC
Power Adapter
connectors are
located.
The remaining switch,
labeled "MODE", controls
the timing aspect of the
output signal type: PC or
HD.
The output side of the
AVT-3350 is where the
HD-15 PC Video con-
nector and the Output
Resolution Switch are
located.
5
The Input Select
Switch and Input
Indicator LED are
located on the top
of the unit.
