Instruction Manual
CDM-830TR and CDM-830T
Multi-System Converter
And TBC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDM-830TR and is the answer not in the manual?

Questions and answers

Summary of Contents for AV TOOL CDM-830TR

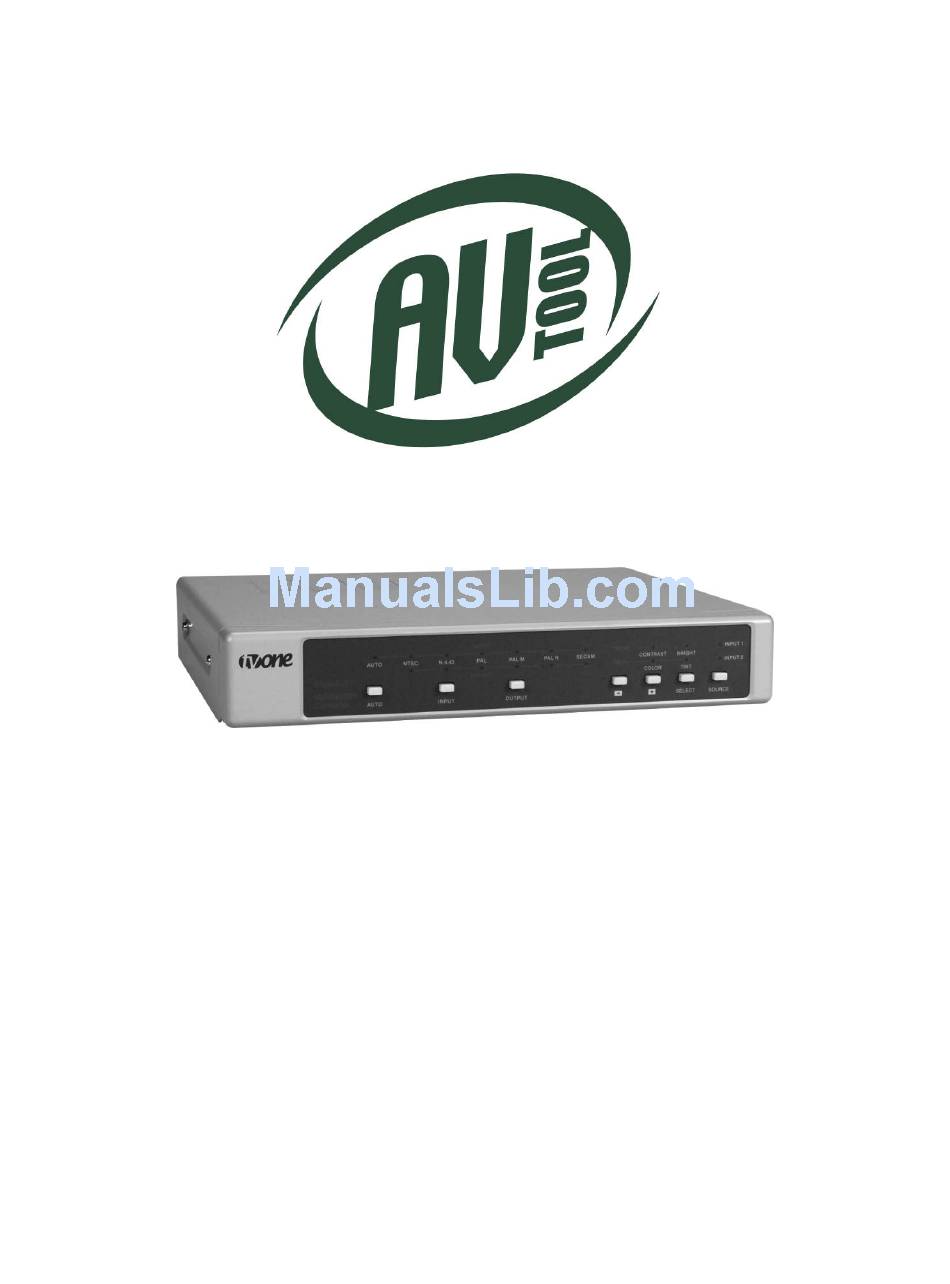

  • Page 1 Instruction Manual CDM-830TR and CDM-830T Multi-System Converter And TBC...
  • Page 3: Table Of Contents

    Table Of Contents Introduction Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information...
  • Page 4: Introduction

    INTRODUCTION Thanks for purchasing this CDM-830TR/CDM-830T Multi-System Converter from AV Toolbox. The CDM-830TR/CDM-830T is designed to convert between the world’s television standards and also correct time base errors present in Video Tape playback. Our Video conversion products have been serving the industry for many years.
  • Page 5 FEATURES The CDM-830TR/CDM-830T Standards Converter and Time Base Correctors have several features that enable them to perform in a superior manner. Among those features you will find:  Automatic Selection of Appropriate Input  Multi-Standard Conversion for Worldwide TV Standards ...
  • Page 6: Specifications

    SPECIFICATIONS Inputs Composite Video 2x via BNC Connector S-Video (Y/C 2x via 4-PIN Mini-DIN Connector Stereo Audio 2x via RCA Connectors (R/L) Genlock 1x Composite Video via BNC Outputs Composite Video 1x via BNC Connector S-Video (Y/C) 1x via 4-PIN Mini-DIN Connector YUV Component 1x via 3x BNC Connectors Stereo Audio...
  • Page 7: Package Contents

    Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton:  1x CDM-830TR or CDM-830T Standards Converter/TBC  1x 6’ BNC to BNC Cable  1x 6’ 4-PIN S-V to 4 Pin SV Cable ...
  • Page 8: Operating The Unit

    Connect the supplied AC to DC adapter to the rear of the unit, insuring that the power switch is in the off position. Next connect the adapter to an available AC source. Connect the appropriate cables to one or both of the inputs and also to the appropriate output of the Converter/TBC and then to the external devices.
  • Page 9 will be PAL so the “Auto” LED will light as well as the “PAL” LED. Finally, in France, the “Auto” and “SECAM” LEDs will light. Input Button Functions To force a manual selection of the input standard, Press the “Auto” button and note that the “Auto”...
  • Page 10: Troubleshooting

    5 seconds, ALL controls will be reset to their default settings. TROUBLESHOOTING Most problems with the CDM-830TR/CDM-830T Multi-System Converter/Time Base Corrector are related to misuse of the buttons and signal adjustment controls. If you find that the picture is not acceptable, place the unit in the automatic detection mode and then press and hold the + and - buttons for 5 seconds to restore factory defaults.
  • Page 11: 8.0 Regulatory Compliance

    8.0 REGULATORY COMPLIANCE The CDM-830TR and the CDM-830T have been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines.
  • Page 12 AV Toolbox USA AV Toolbox Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-235-3280 Tel +44 (0)1843 873307 Tel 859-647-1077 Fax +44 (0)1843 873312 Fax 859-282-8225 sales.europe@avtoolbox.com sales@avtoobox.com www.avtoolbox.com www.avtoolbox.com AV Toolbox Latin America AV Toolbox Mercosur 6991 NW 82nd Avenue #8...
