Summary of Contents for AV TOOL AVT-3900

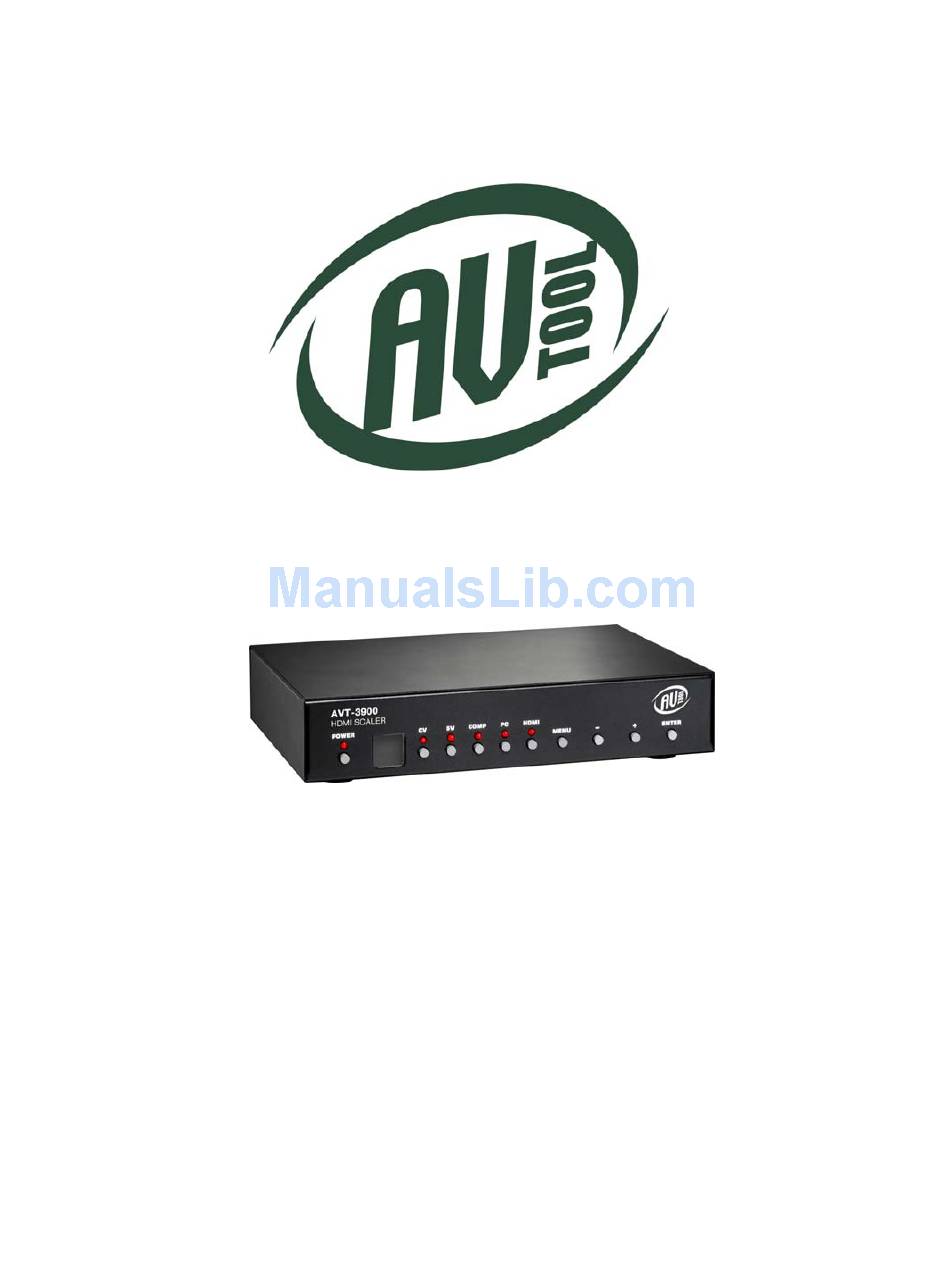

- Page 1 Instruction Manual AVT-3900 HDMI Scaler...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION The AVT-3900 HDMI Scaler is a high bandwidth, professional quality product that accepts HDMI signals, DVI signals (via DVI to HDMI adapter cable), PC generated RGB signals (up to WUXGA), HD Component signals (YPbPr/YCbCr, 480i up to 1080p), S-Video and Composite Video signals as valid inputs. It scales these signals to provide a fully compliant HDMI output with up to 1080p resolution. - Page 5 FEATURES The AVT-3900 has many features that enable it to perform in a superior manner. Among those features you will find: • HDMI Output Resolutions to 1080p or WUXGA@60Hz • HDMI and DVI Input Resolutions to 1080p or WUXGA@60Hz • Accepts and Processes HDCP Compliant Signal •...
-
Page 6: 2.0 Specifications
2.0 SPECIFICATIONS Video Inputs HDMI 1.2 Video Via 1x HDMI Connector PC RGB Video Via 1x HD-15 Connector Analog HDTV Video Via 3x RCA Connectors S-Video Via 1x 4-pin Mini Din Composite Video Via 1x RCA Connector Audio Inputs Digital Audio (S/PDIF) Via 1x Coax Connector Analog Audio (Stereo) Via 6x RCA and 2x 3.5mm... - Page 7 3xRCA to 3xRCA 1x Cable 3XRCA to 3XRCA (video, stereo audio) 2.1 Supported Resolutions The AVT-3900 HDMI Scaler provides excellent resolution capability for both PC and TV input and output signals. The table below shows the available resolutions: Input Signals...
-
Page 8: Checking Package Contents
Front Panel Controls: The front panel has controls to manually control the AVT-3900 HDMI Scaler. The numbers below the drawing relate to the control directly above the number. Power On/Off... - Page 9 Rear Panel Connectors: The rear panel has the connectors required to interface the AVT-3900 to the External Inputs, Outputs and Power Supply. The numbers above and below the drawing relate to the control directly above or below the number. Refer to the corresponding number and functional description on page 8.
-
Page 10: Operating The Unit
OPERATING THE UNIT The AVT-3900 can be operated from either the front panel controls or via the included Infrared Remote Control. Since Infrared is the control method used most often by the majority of users, please take the time to familiarize yourself with the location and function of the various control buttons on the Controller. - Page 11 Section 5.2 below for a detailed discussion of the OSD. Using the On Screen Display Menus Regardless of whether you operate the AVT-3900 from the front panel or using the Remote Controller, you will need to become familiar with the OSD (On Screen Display) menu structure if you wish to take full advantage of the capability of the product.
- Page 12 downwards on the OSD. The “Enter” push-button is used to select the High Level area you wish to enter (Video, Color, Output, OSD Characteristics, Audio, Information or Exit). You then repeat the above process once you’re within the high level selection to make a specific adjustment selection. When you select the specific area you wish to adjust (using the “Enter”...
-
Page 13: Troubleshooting
AVT-3900’s outputs directly to the source using a short length of cable. (In other words, bypass the AVT-3900 to make certain that the problem is not with the source or destination devices.) If the signal is present under those conditions, make certain that the power is present to the AVT-3900. -
Page 14: Limited Warranty
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting AV Toolbox. Should the dealer’s technical personnel be unable to assist you, contact AV Toolbox via our support website: http://tvone.crmdesk.com. Create a technical support request on the site and our support team will respond within a short period of time. -
Page 15: Regulatory Compliance
REGULATORY COMPLIANCE The AVT-3900 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. These Products and Power Adapters are RoHS Compliant.
