Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts...

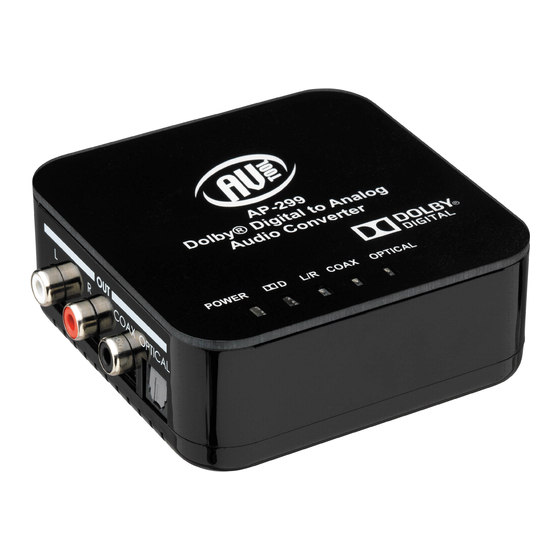

INTRODUCTION Thanks for purchasing this AP-299 Dolby® Digital to Analog Audio Converter from the AV Toolbox division of TV One. The AP-299 is a versatile tool that provides conversion capabilities between Optical, Coaxial and L/R Analog audio signals. The AP-299 has the ability to convert digital signals into analog and analog signals into digital format and also allows simultaneous conversion of audio formats.
External Power Supply 5VDC@1A Regulatory Approvals Audio Extractor FCC, CE, RoHS Power Adapter UL, CUL, CE, PSE, GS, RoHS Accessories Included 1x Power Adapter US, UK or Euro 1x Operations Manual Product Item Number AP-299 Dolby® Digital to Analog Audio Converter...
AP-299. Next, connect the AP-299’s Optical, Coaxial and/or analog L and R outputs to the destination audio equipment. Set the Input Select Switch on the side of the AP-299 to the desired audio input mode (Optical, Coax or L/R).
LED Mode Indicators To assist you knowing that power is applied to the AP-299, which input selection has been made, and if Dolby® signal encoding is present, LED mode indicators are provided on the top of the device.
In the event that the unit appears to be non-functional, make certain that the AC power outlet is active for the source and destination equipment as well as the AP-299. Next, Make certain that the source and destination equipment is functioning properly. Lastly, substitute each cable in use with a known good cable to remove that variable.
REGULATORY COMPLIANCE The AP-299 Dolby® Digital to Analog Audio Converter has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. These Products and Power Adapters are RoHS Compliant.
