Instruction Manual
AVT-3800 ImageMAX PLUS
Video Scaler

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ImageMAX PLUS AVT-3800 and is the answer not in the manual?

Questions and answers

Summary of Contents for AV TOOL ImageMAX PLUS AVT-3800

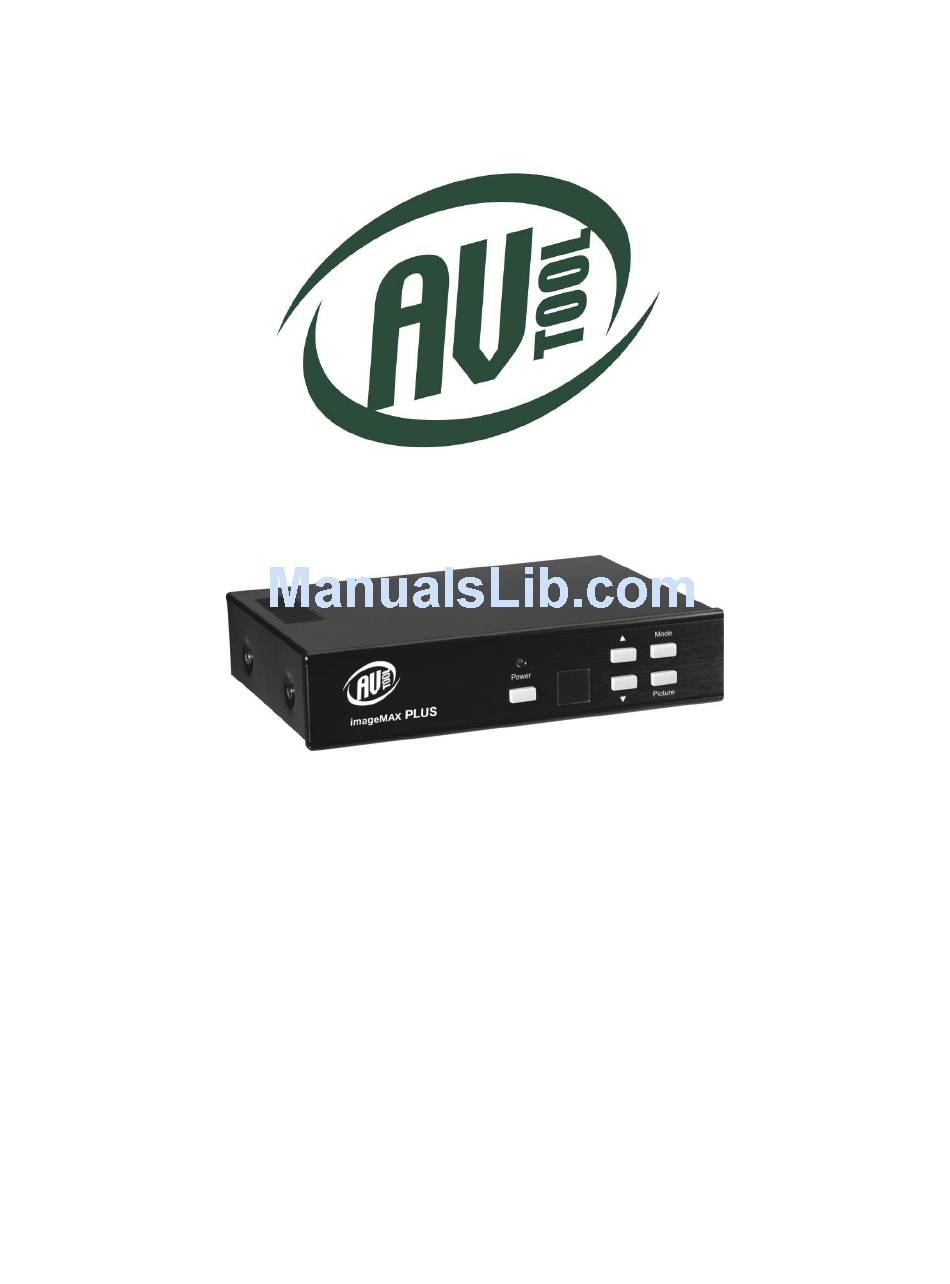

  • Page 1 Instruction Manual AVT-3800 ImageMAX PLUS Video Scaler...
  • Page 3: Table Of Contents

    Table Of Contents Introduction Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information...
  • Page 4: Introduction

    INTRODUCTION Thanks for purchasing the AVT-3800 ImageMAX PLUS Video Scaler from AV Toolbox. This unit is designed to convert Composite Video, S-Video or YCbCr Component Video signals to a variety of computer and HDTV resolutions for viewing on most LCD, Plasma and HDTV displays available today. Our Video conversion products have been serving the industry for many years.
  • Page 5 FEATURES  Video inputs are de-interlaced and scaled to the selected resolution.  Automatic detection of NTSC, PAL or SECAM worldwide TV Standards.  High performance Adaptive 3D Comb Filter.  Per-pixel motion compensated de-interlacing for artifact-free video images.  16:9 or 4:3 Aspect Ratio ...
  • Page 6: 2.0 Specifications

    2.0 SPECIFICATIONS Input Signal Specifications PC Input (For Loop-thru) RGBHV or YPbPr Max PC Input Resolution 1600x1200 PC Input Connector Type HD15 Female Video Inputs/Connector Type Composite Video on RCA Connector S-Video on 4-Pin Mini-DIN Connector YCbCr Component Video on 3 RCA Connectors Video Standards NTSC, SECAM, PAL-B, PAL-G, PAL-I, PAL-D Manual Control...
  • Page 7: Connecting The Hardware

    CONNECTING THE HARDWARE The f irst step is to connect a video source to the input of the imageMAX PLUS and to connect its output to a display device. Below is a drawing of the unit. Connecting the Video Inputs The Video Scaler can accept a Composite Video, S -Video or YCbCr Component Video input signal for scaling, as well as a computer signal input that can be passed through.
  • Page 8: Operating The Unit

    Connecting Power to the Unit The imageMAX PLUS is shipped with a Switching Power Adapter to convert 100- 240VAC@50-60Hz to 12VDC. Connect the DC Output Cord from the Power Adapter to the back of the unit and then plug the Power Adapter into an AC Receptacle.
  • Page 9 Picture Button Press the Picture Button repeatedly to toggle through the following picture adjustment parameters, then use the Buttons to adjust the level.  Contrast: The range of this adjustment is 0~48. The Factory Default is 40.  Bright: The range of this adjustment is 0~48. The Factory Default is 24. ...
  • Page 10 Infrared Control Most functions of the imageMAX PLUS can be controlled from the CR-20 Infrared Remote Control unit. Below is a brief description of the commands. ♦ Turns Power On/Off  Display: Turn Resolution Information OSD On/Off  C-Video: Selects Composite Video Input ...
  • Page 11: Troubleshooting

    TROUBLESHOOTING Problem Possible Solution No picture on If the unit’s Power Switch in ON, but the Power LED is not the output illuminated, check that the proper AC Power Adapter is being monitor used. If the LED is illuminated, check that there is a correct Video Input signal and that the display device connected to the output is switched on and set to the correct input and its Brightness and Contrast are set correctly.
  • Page 12: Limited Warranty

    LIMITED WARRANTY LIMITED WARRANTY – With the exceptions noted in the next paragraph, AV Toolbox warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of one year from the date of purchase.
  • Page 13: Contact Information

    CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location. AV Toolbox USA AV Toolbox Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-235-3280...
