Summary of Contents for AV TOOL AVT-3420

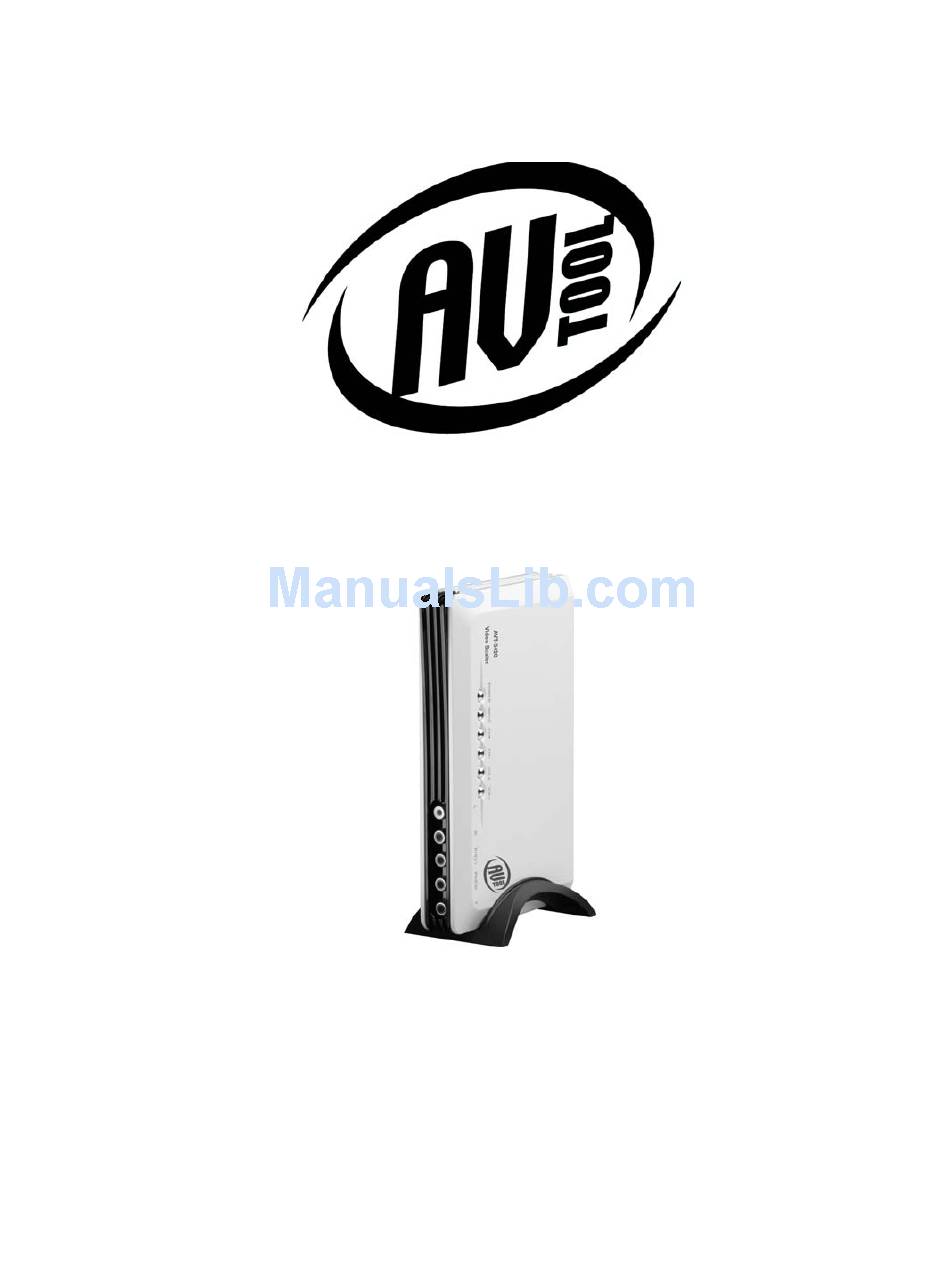

  • Page 1 AV Toolbox Instruction Manual AVT-3420 Video Scaler...
  • Page 3: Table Of Contents

    Table Of Contents Introduction Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information...
  • Page 4: Introduction

    INTRODUCTION Thanks for purchasing this AVT-3420 Video Scaler from AV Toolbox division of TV One. The AVT-3420 is designed to up convert a standard, composite interlaced television image, a PC video input or a standard YPbPr component image to a high definition image with a resolution as high as 1920 x 1200. The output is suitable for display on PC type displays or other high resolution, progressively scanned monitors.
  • Page 5 FEATURES The AVT-3420 Video Scaler has many features that enable it to perform in a superior manner. Among those features you will find: • Plug and Play Operation – No Software Required • Watch TV, DVDs, or Play TV Based Computer Games on your PC Monitor •...
  • Page 6: Specifications

    UL, CUL, PSE, GS, RoHS Mechanical Dimensions–HxWxD 1.3"x7.6"x4.7" (33x193x119mm) Weight 1.00lbs (450g) Power Requirement External Power Supply 100~240VAC to 5VDC/1A Adapter Accessories Included 1x Power Adapter 1x User Manual Miscellaneous IR Remote, Cables, Custom Stand Model Number AVT-3420 AVT-3420 Video Scaler...
  • Page 7: Package Contents

    CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1x AVT-3420 • 1x Vertical Mtg. Stand • 1x Remote Control • 1x HD-15 VGA to 9 Pin Cable •...
  • Page 8: Connecting The Hardware

    CONNECTING THE HARDWARE Please study the drawings below and become familiar with the inputs, outputs and control locations on the AVT-3420.
  • Page 9 “SPEAKER” on the back panel of AVT-3420. Take the AC/DC adaptor from the shipping carton and connect the Adaptor first to the +5VDC input on the AVT-3420 and then to the AC socket. Turn on the Power to the AVT-3420 and to the CRT or LCD.
  • Page 10 AVT-3420. • Turn on the power to the external device and the AVT-3420. • Using the Input button on the AVT-3420, the remote control or the OSD, select CVBS as the input type.
  • Page 11 Remote Control Since you will likely be using the Remote Control to operate the unit, please take the time to become familiar with the location and operation of the various buttons. Volume Control +/- Channel Selection +/- MTS (Not Used) Power: TV/PC Mode Audio Mute Input Selection...
  • Page 12: Operating The Unit

    Operating the AVT-3420 Operating the AVT-3420 is intuitive and easily learned. The operation at the unit itself is accomplished via the buttons mounted within the case. Although easily learned due the clear labeling of the functions, it should be understood that operating the unit via these buttons is also a somewhat limited way to control it because all functions are not available from these buttons.
  • Page 13 Menu Structure When you press the Menu button on your remote, you will see the OSD (On Screen Display) appear on the monitor. The operation of each menu item is explained below. OPERATION PICTURE Press the ▲or ▼ key for to highlight the desired item, BRIGHTNESS press the ”Select”...
  • Page 14 RESOLUTION OPERATION Press the ▲ or ▼key to select the desired item and then press ”Select” key to confirm your selection. 1024 x 768 Note: Make certain that your monitor will support 1280 x 1024 your resolution selection. If you make a selection 1280 x 768 that is not supported by your monitor, the picture 1366 x 768...
  • Page 15 SLEEP RESET Note: Selecting the Reset Function. If you wish to return the AVT-3420 to the factory default setting, navigate to the Reset function and press the Select button. Factory Defaults for all adjustments, except resolution, will be restored.
  • Page 16: Troubleshooting

    • Continue selecting matrix positions and channels using the same procedure as explained above. • Press the Exit button to return to regular operation of the AVT-3420. FC Scan Button: If you press this button, you will enable a display of the previously programmed Favorite Channels.
  • Page 17: Limited Warranty

    Determine that the AC outlet into which you have plugged the AC adapter is furnishing power properly and also make certain that all connections, including the DC power lead from the AC adapter are fully plugged in to the AVT-3420. Check that the devices connected to the AVT-3420 are performing properly before you assume that the AVT-3420 is at fault.
  • Page 18: Regulatory Compliance

    8.0 REGULATORY COMPLIANCE The AVT-3420 Video Scaler has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations...
  • Page 19: Contact Information

    CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact AV Toolbox at the location shown below. TV One USA TV One Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 859-282-7303...
