Summary of Contents for AV TOOL VS-223

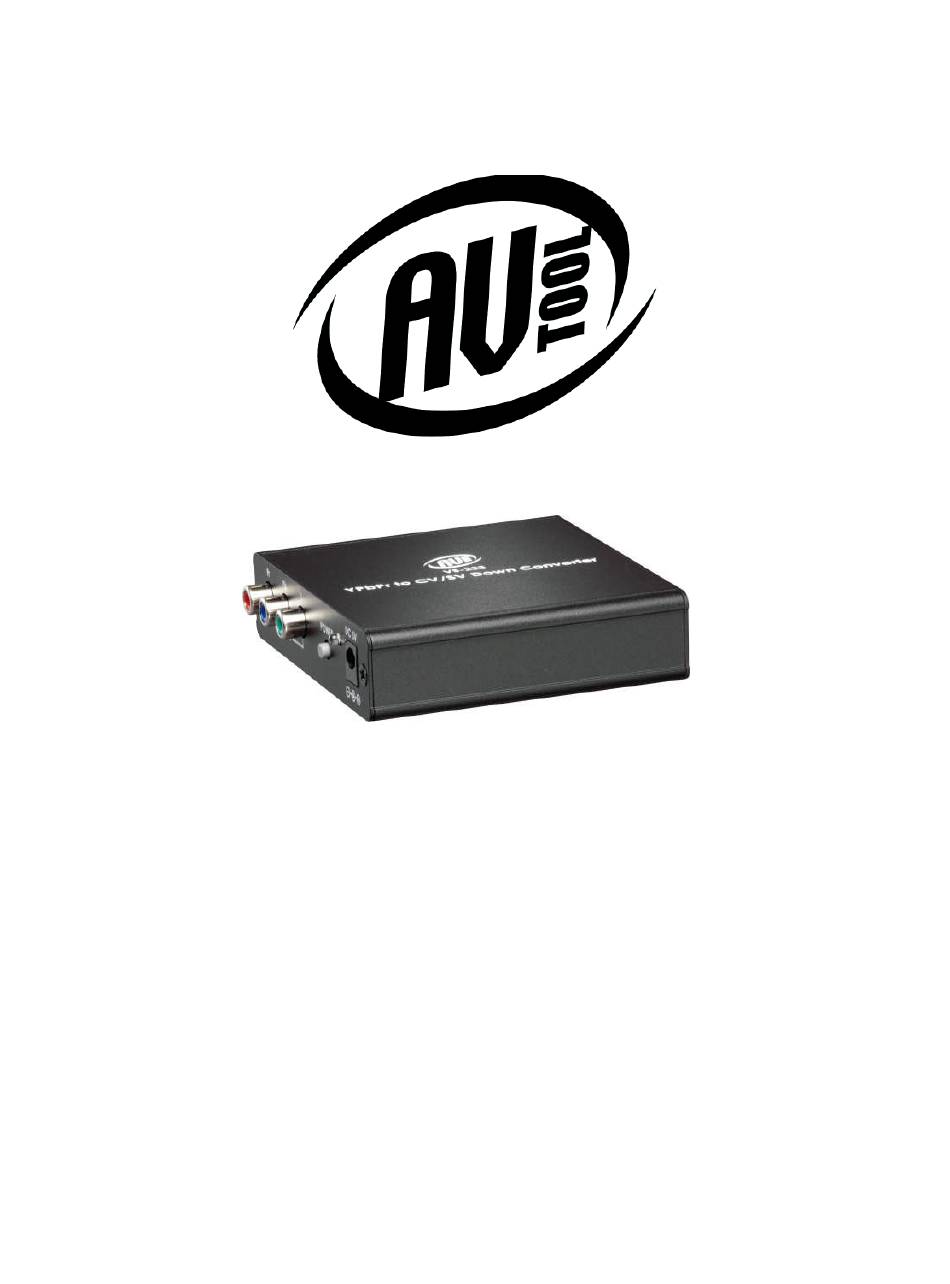

- Page 1 Instruction Manual VS-223 YPbPr to CV/SV Scan Converter...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Thanks for purchasing this product from the AV Toolbox Division of TV One. The VS-223 YPbPr to Video Scan Converter is designed to convert a variety of HDTV images, ranging from 480p to 1080p, to interlaced NTSC or PAL Video. The VS-... - Page 5 Getting the Best Results There are many factors affecting the quality of results when scaling video signals. Some basic precautions will ensure the best possible performance from your Scan Converter. Output display device – The quality of the output signal will depend largely upon the type and quality of display device used.
-
Page 6: Specifications
CONNECTING THE HARDWARE The first step is to connect an HDTV video source to the input of the VS-223 Scan Converter, connect its output to a display device and lastly connect the AC to DC converter. The series of drawings below show the locations of the input, outputs, power switch and power connector. - Page 7 Before using the VS-223, make certain that the HDTV source is producing a picture on its regular monitor. If it is, disconnect the monitor and connect three 75 coax cables between the output of the HDTV source and the input of the VS-223. Connecting the Output Determine if the display you will be using accepts an S-Video input or a Composite Video input or both.
-
Page 8: Operating The Unit
OPERATING THE UNIT After connecting the input of the VS-223 to an HDTV source and the output to an appropriate display, apply power and the unit will automatically detect the resolution being output by the HDTV source. Select the proper television standard (NTSC/PAL) and an image will appear on the display. -
Page 9: 8.0 Regulatory Compliance
8.0 REGULATORY COMPLIANCE The VS-223 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with... -
Page 10: Contact Information
appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant. CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location. TV One USA TV One Europe 2791 Circleport Drive...
