Summary of Contents for AV TOOL AVT-3310

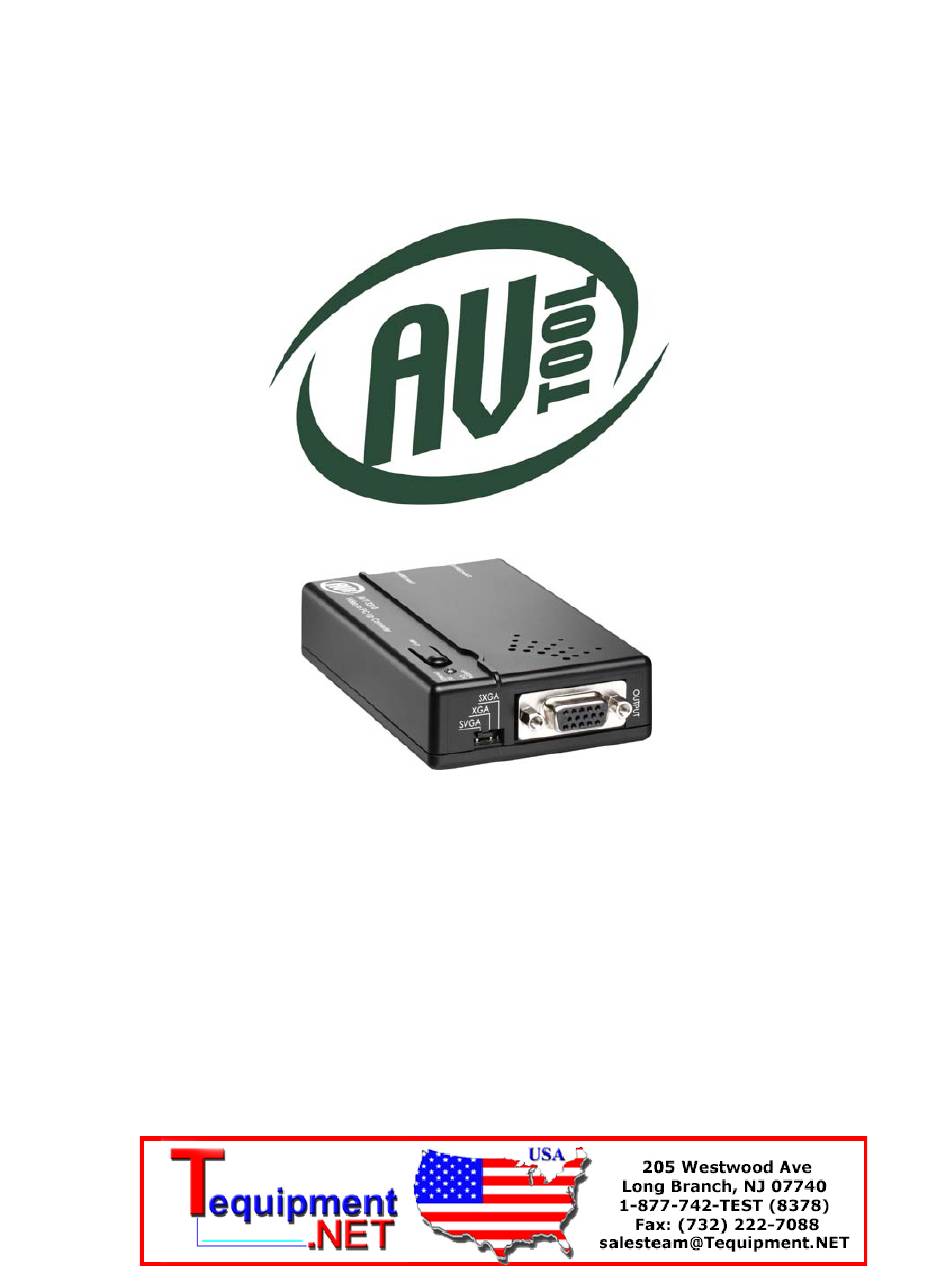

- Page 1 Instruction Manual AVT-3310 Video to PC Up Converter...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this product from the AV Toolbox Division of TV One. The AVT-3310 Video to PC Up Converter is designed to convert interlaced NTSC or PAL Video––S-Video or Composite Video format––to SVGA, XGA or SXGA resolutions which allows the viewing of standard television images on your PC monitor. - Page 5 Getting the Best Results There are many factors affecting the quality of results when scaling video signals. Some basic precautions will ensure the best possible performance from your Up Converter. • Output display device – The quality of the output signal will depend largely upon the type and quality of display device used.
-
Page 6: Specifications
CONNECTING THE HARDWARE The first step is to connect a Video Source to the input of the AVT-3310 Up Converter, connect its output to a PC monitor and lastly connect the AC to DC Power Adapter. The drawings below show the locations of the input, outputs, power switch and power connector. -
Page 7: Operating The Unit
If you have connected a Composite Video signal to the AVT-3310, press the input switch on the top of the unit until the LED indicator turns Green. If you have connected an S-Video (Y/C) signal, press the... -
Page 8: Troubleshooting
Make certain you have a good NTSC/PAL input signal and the Power Adapter is securely plugged in both to the AC receptacle and to the AVT-3310. After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting TV One. -
Page 9: 8.0 Regulatory Compliance
8.0 REGULATORY COMPLIANCE The AVT-3310 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. -
Page 10: Contact Information
CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact AV Toolbox at the location shown below. AV Toolbox USA AV Toolbox Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-235-3280...
