Page 1: Instruction Manual

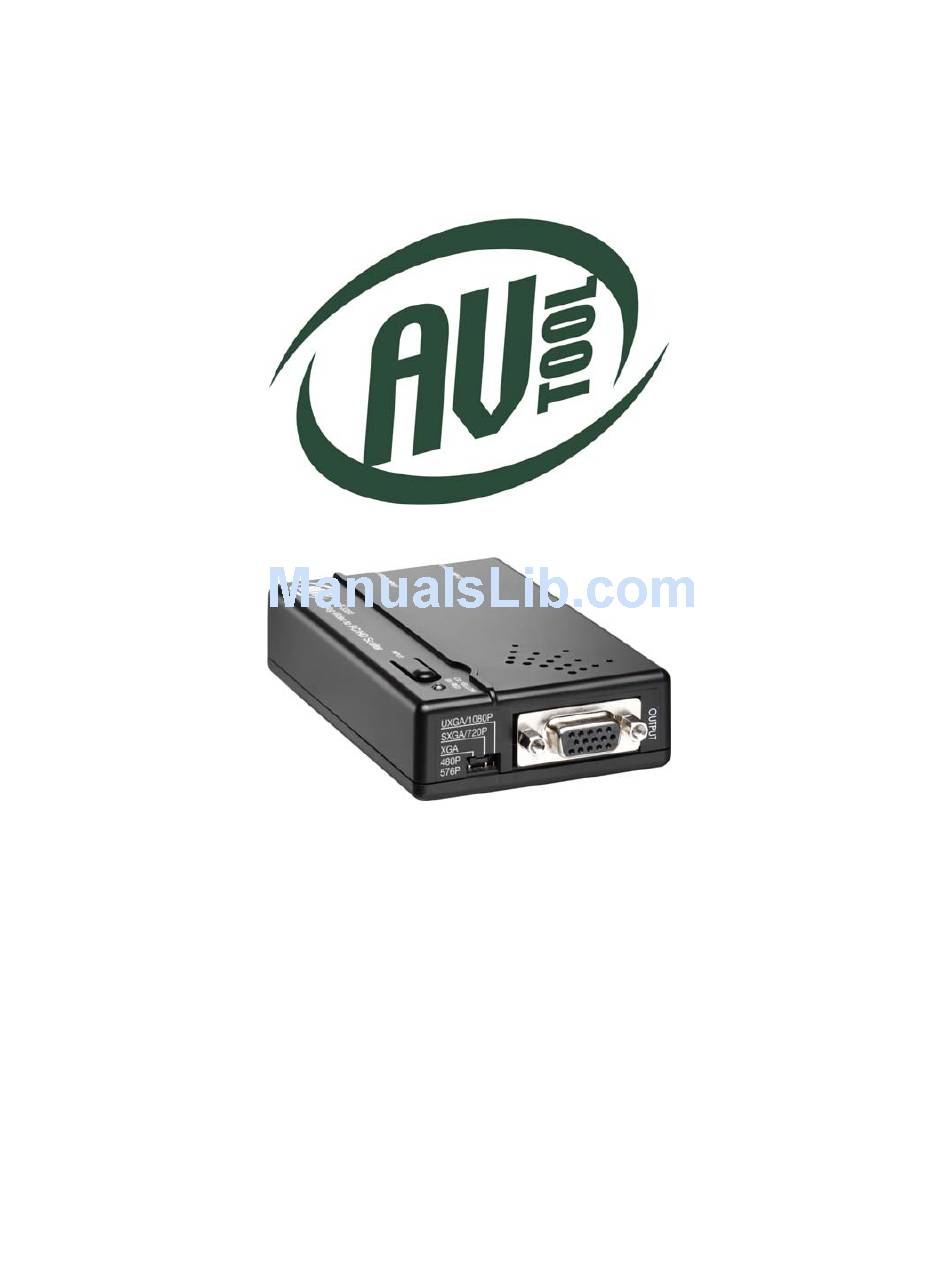

Instruction Manual AVT-3350 Analog Video to PC/HD Scaler... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this product from the AV Toolbox Division of TV One. The AVT-3350 Analog Video to PC/HD Scaler is designed to convert interlaced NTSC or PAL Video––S-Video or Composite Video format––to XGA, SXGA or UXGA resolutions which allows the viewing of standard television images on your PC monitor. - Page 5 Getting the Best Results There are many factors affecting the quality of results when scaling video signals. Some basic precautions will ensure the best possible performance from your Up Converter. • Output display device – The quality of the output signal will depend largely upon the type and quality of display device used.
-
Page 6: Specifications
UL, CUL, CE, PSE, GS, RoHS Mechanical Dimensions–HxWxD 0.9”x3.9”x2.5” (24x100x64mm) Weight 0.19lbs (88g) Power Requirement External Power Supply 100~240VAC to 5VDC Adapter Accessories Included 1x Power Adapter US, UK or Euro 1x User Manual Model Number AVT-3350 Analog Video to PC/HD Scaler... -
Page 7: Checking Package Contents
CONNECTING THE HARDWARE Connect a Video Source to the input of the AVT-3350 Analog Video to PC/HD Scaler, connect its output to a PC monitor or HD capable component TV and lastly connect the AC to DC Power Adapter. The drawing below shows the locations of the input, outputs, power switch and power connector. -
Page 8: Operating The Unit
PC or HD component source device can produce a picture on it before attempting to use it with the AVT-3350. If all is well, connect the monitor or HD component TV to the output of the AVT-3350 using a high quality cable. -
Page 9: Troubleshooting
OSD Display Your AVT-3350 has an On Screen Display (OSD) which will show the basic operating conditions of the unit. To display this information, press and hold the input switch on the top of the unit for 3 seconds. When in the PC mode, the display will show Input format and output timing, source type (CV or SV), the PC monitor’s recovered EDID data (resolution) and the AVT-3350 firmware version. -
Page 10: 8.0 Regulatory Compliance
AV Toolbox assumes no liability to distributors, dealers or end-users for any loss of use, revenue or profit. -
Page 11: Contact Information
Tel +44 (0)1843 873307 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@avtoolbox.com sales.europe@avtoolbox.com www.avtoolbox.com www.avtoolbox.co.uk AV Toolbox Latin America TV One Mercosur A division of TV One L.A. Av. Diaz Velez 3965 #PB 6991 NW 82 Avenue #8 (1200) Capital Federal Miami, FL 33166...
