Description of the device

Features
The LED Commander Pro is a light controller from Showtec and features:
• The LED Commander Pro is the successor of the LED commander
• The upgrade is simple but unique and very useful
• Easy to use
• Control 8 RGB fixtures
• Adjustable Speed control
• Adjustable fade time
• Free patchable RGB and dimmer channels
• Power supply: AC 12V- 1A
• Power connector: Adapter (included)
• All functions and faders patchable
• Memory for 16 scenes and 16 chases
• 2 Auxiliary channels to control foggers and strobes
• 3 Bright LCD displays
• 3 and 5 pole XLR output
• Auto program
• Music Control
• 19" rackmounting
• DMX-512: XLR 3 pole
• Record Function to Record Colors and Chases
• Speed & Fade faders for Chase control
• Free patchable channels
• Run mode: Auto, Music, Manual
• Fixtures: 8 + 2 Aux channels
• Control 8 LED fixtures up to 8 channels each
• DMX-512: 66 Channels
• USB: 5VDC for mini-light
• Audio input: RCA, 100mv - 1Vpp
• MIDI: In, Out, Thru
• MIDI connector: 5P DIN
• Power consumption: 20W
• Dimensions: 482 x 178 x 75mm (LxWxH)
• Weight: 3,1Kg
NOTE:
Knowledge of DMX is required to fully utilize this unit.

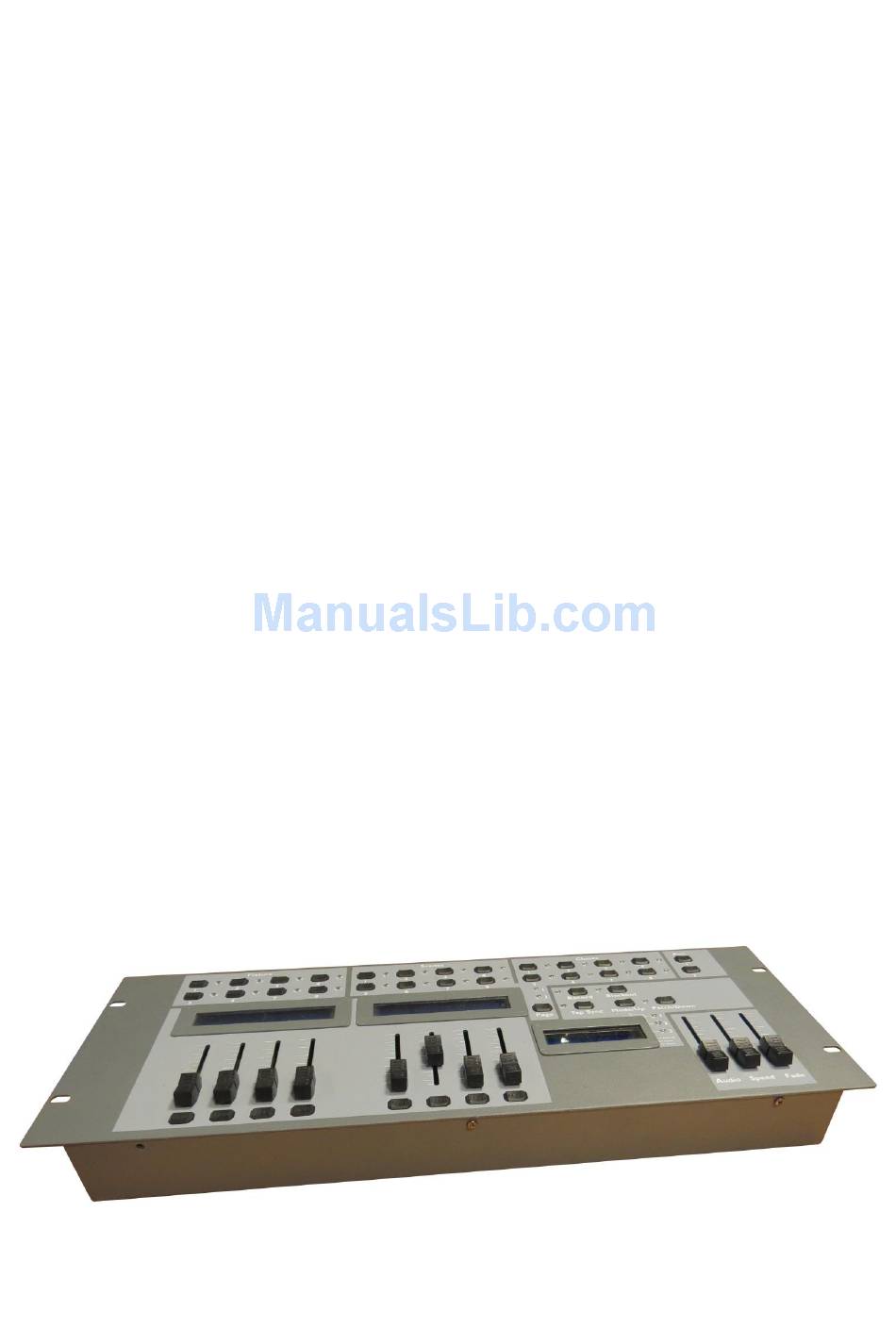

Overview

Fig. 1
