Controller Backside

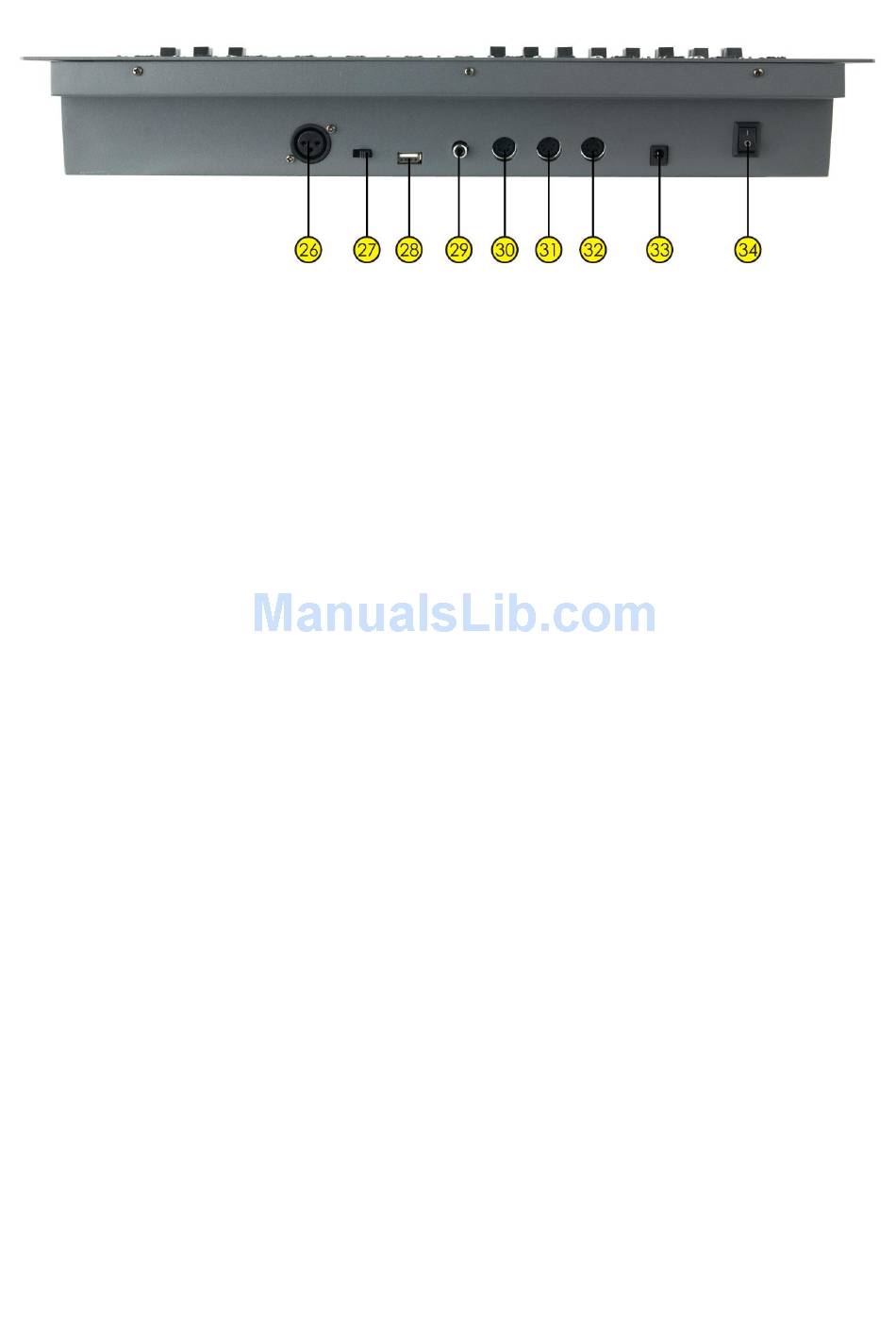

Fig. 3
26) DMX OUT
27) DMX Polarity Switch
28) USB Light
29) Audio Input: This jack accepts a line level audio input signal ranged from 100 mV to 1Vpp.
30) MIDI Thru: MIDI port for connection to a sequencer or MIDI device.
31) MIDI Out: MIDI port for connection to a sequencer or MIDI device.
32) MIDI In: MIDI port for connection to a sequencer or MIDI device.
33) DC power DC 12V 1A
34) ON/OFF

Set Up and Operation

Remove all packing materials from the LED Commander Pro. Check that all foam and plastic padding is
removed. Connect all cables.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Remove all packing materials from the LED-Foot 4. Check that all foam and plastic padding is removed.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
