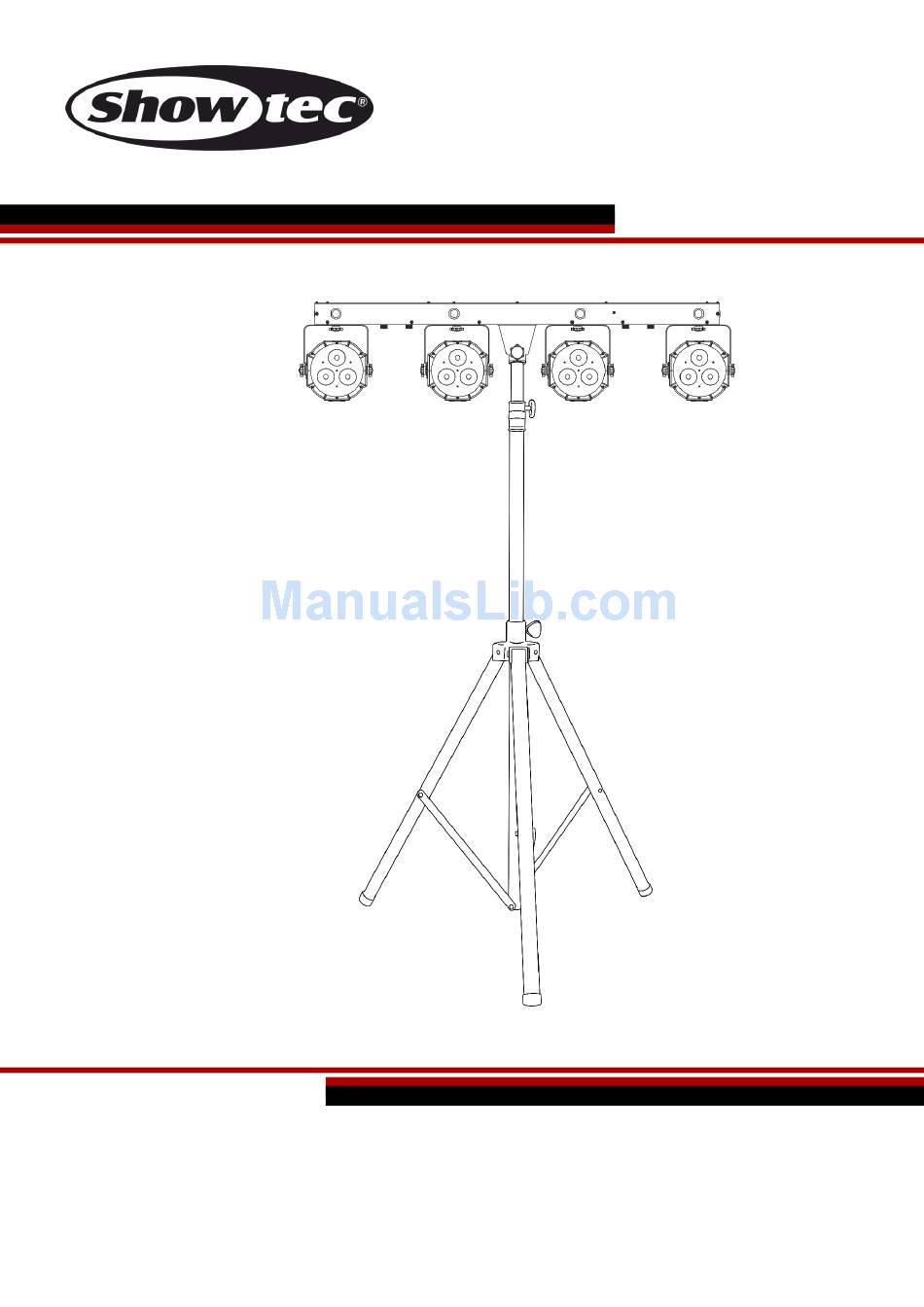

- Page 1 MANUAL ENGLISH Compact Power Lightset RGB-UV Ordercode: 30278 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact Power Lightset RGB-UV Table of contents Warning ....................................2 Safety Instructions ................................. 3 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Compact Power LIghtset RGB-UV IEC power cable (4,70 m) ... -
Page 4: Safety Instructions
Compact Power Lightset RGB-UV Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Connection With The Mains
Compact Power Lightset RGB-UV The Compact Power Lightset RGB-UV can be fitted to a wall with mounting brackets or mounted to a tripod. Improper installation can cause serious injuries and damage of property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. -
Page 7: Return Procedure
Compact Power Lightset RGB-UV Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

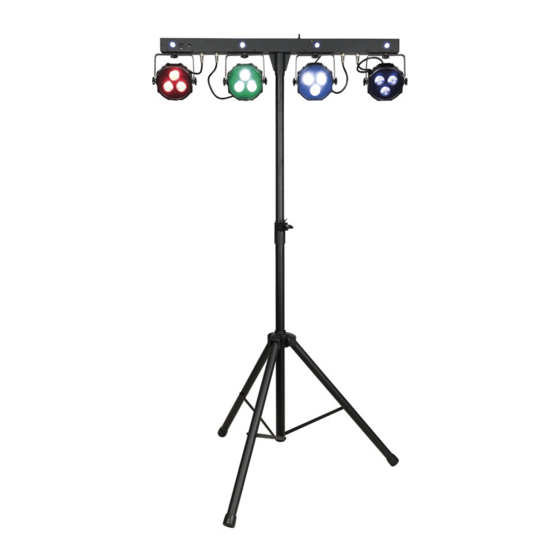

Compact Power Lightset RGB-UV Description of the device Features The Compact Power Lightset RGB-UV is a lightset which combines a traditional lightset with extra effects. It offers 4 LED strobes in order to create an extra effect to your show. Moreover the parcans are equipped with UV Led' as well in order to create creepy blacklight effects. -
Page 9: Overview
Compact Power Lightset RGB-UV Overview Fig. 01 01) 4-in-1 RGB-UV LEDs 02) 4x 1W White, 4x 1W UV 03) Built-in Microphone 04) IR sensor (Not functional) Fig. 02 05) 3-pin DMX signal connector OUT 06) 3-pin DMX signal connector IN 07) Ground/earth connection 08) IEC power connector 100-240V OUT 09) IEC power connector 100-240V IN + Fuse 1,5L/250V... -
Page 10: Installation
Compact Power Lightset RGB-UV Installation Remove all packing materials from the Compact Power Lightset RGB-UV. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Multiple Compact Power Lightsets (Dmx Control)
Compact Power Lightset RGB-UV Multiple Compact Power Lightsets Master/Slave Set Up Fig. 02 Multiple Compact Power Lightsets (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 12: Fixture Linking
Compact Power Lightset RGB-UV Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Compact Power Lightset RGB-UV Control Panel A) LED display MODE button C) UP button D) DOWN button ENTER button Fig. 04 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller (when you select the DMX address and save it, the controller will display the saved DMX address the next time). -
Page 14: Menu Overview
Compact Power Lightset RGB-UV Menu Overview Ordercode: 30278... -
Page 15: Main Menu Options
Compact Power Lightset RGB-UV Main Menu Options Auto Mode Sound-controlled Mode Manual Mode (Static Color Mode) Master/Slave Mode DMX-512 Mode Settings The Compact Power Lightset will only show its version number at start-up ! 1. Auto Mode With this menu you can you can set the built-in programs. 01) Press the MODE button on the device, until the display shows 02) Press the ENTER button to open this menu. -
Page 16: Flash Mode
Compact Power Lightset RGB-UV 1.3 Flash mode 01) Use the Up / Down buttons to choose a mode 02) You can use the ENTER button to change the settings. 03) Use the Up / Down buttons to change the Flash mode from 04) You can use the ENTER button to change the settings. -
Page 17: Master / Slave Mode
Compact Power Lightset RGB-UV 4. Master / Slave Mode 01) Use the Up / Down buttons to choose a mode 02) You can use the ENTER button to set the Compact Power Lightset to 5. DMX Mode With this menu you can you can select the DMX mode, and set the DMX address. 01) Press the MODE button on the device, until the display shows 02) Press the ENTER button to open the menu. -
Page 18: Footswitch Function (Footswitch Included!)
Compact Power Lightset RGB-UV 7. Footswitch Function (footswitch included!) 01) Insert a V23GA 12V battery (ordercode SPAC0000) into the bottom of the footpedal. 02) Put the antenna of the footpedal in the upright position. 03) First make sure the Power Lightset has the correct settings: 04) Step on the Auto pedal to enter the auto running mode. -
Page 19: Dmx Channels
Compact Power Lightset RGB-UV DMX Channels 4 Channels Channel 1 –MIX Show Blackout 6-86 AM01/SM01 87-169 AM02/SM02 170-255 AM03/SM03 Note：when CH1 is set to black out, CH2, CH3 will work. Channel 2 – PAR Show Blackout 6-21 AP01/SP01 22-38 AP02/SP02 39-54 AP03/SP03 55-71... -
Page 20: Channels
Compact Power Lightset RGB-UV 8 channels Channel 1 – Red ( Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green ( Dimmer must be open 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue ( Dimmer must be open 0-255 Gradual adjustment Blue, from 0-100%... -
Page 21: Channels
Compact Power Lightset RGB-UV 25 channels Channel 1 – Red Par 1 ( Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green Par 1 ( Dimmer must be open 0-255 Gradual adjustment Green, from 0-100% Channel 3 –... - Page 22 Compact Power Lightset RGB-UV Channel 16 – Red Par 4 ( Dimmer must be open 0-255 Gradual adjustment Red, from 0-100% Channel 17 – Green Par 4 ( Dimmer must be open 0-255 Gradual adjustment Green, from 0-100% Channel 18 – Blue Par 4 ( Dimmer must be open 0-255 Gradual adjustment Blue, from 0-100%...
- Page 23 Compact Power Lightset RGB-UV 170-189 AF09/SF09 190-210 AF10/SF10 211-230 AF11/SF11 231-255 AF12/SF12 Channel 25 – Running Speed 0-250 Running speed SLOW to fast 251-255 Sound program Note：when CH22 is set to black out, CH23, CH24 will work. Ordercode: 30278...
-
Page 24: Maintenance
01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Compact Power Lightset RGB-UV to your Showtec dealer. 03) The fuse. Replace the fuse. See page 23 for replacing the fuse. -
Page 25: No Response To Dmx
Compact Power Lightset RGB-UV No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 26: Product Specifications
Max. ambient temperature t 40°C Max. housing temperature t 80°C Minimum distance: Minimum distance from flammable surfaces: 0,5 m Minimum distance to lighted object: Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl Ordercode: 30278... -
Page 27: Dimensions
Compact Power Lightset RGB-UV Dimensions Ordercode: 30278... - Page 28 Compact Power Lightset RGB-UV Ordercode: 30278...
- Page 29 Compact Power Lightset RGB-UV Ordercode: 30278...
- Page 30 Compact Power Lightset RGB-UV Ordercode: 30278...
- Page 31 Compact Power Lightset RGB-UV Ordercode: 30278...
- Page 32 ©2017 Showtec...
