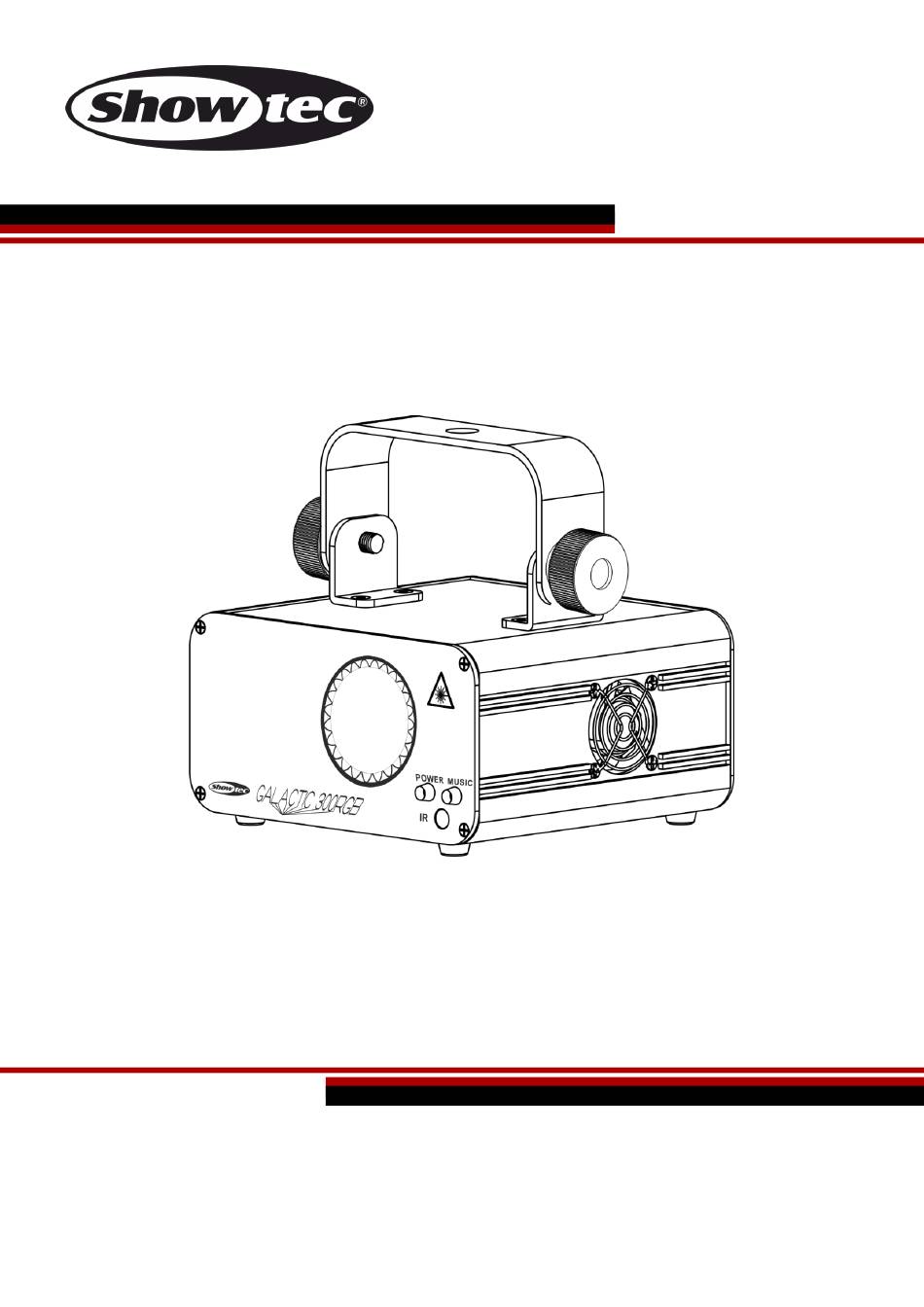

- Page 1 MANUAL ENGLISH Galactic RGB300 Ordercode: 51345 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Galactic RGB300 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 3 Operating Determinations ............................5 Laser safety for a Class 3B Laser Product ......................... 5 Rigging .................................... 7 Connection with the mains............................7 Return Procedure ................................8 Claims .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Galactic RGB300 ● IEC Power cable (1,5 m) ●... -
Page 4: Safety Instructions
Galactic RGB300 Safety Instructions Every person involved with the installation, operation and maintenance of this device have to: ● be qualified ● follow the instructions of this manual Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. - Page 5 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Galactic RGB300 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 1 meter. - Page 7 Galactic RGB300 Product Classification and Manufacturing Label Identification Laser Classification Class 3B Cooling Cooling fans and TE Cooling Laser medium Wavelength 650 nm / Red (Laser Diode) ; Output >150mW Wavelength 515 nm / Green (DPSS); Output >50mW Wavelength 450 nm / Blue (Laser Diode) ; Output >100mW...
-
Page 8: Rigging
Galactic RGB300 Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: ● If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 9: Return Procedure
Galactic RGB300 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 10: Description Of The Device
Galactic RGB300 Description of the device Features The Showtec Galactic RGB300 is a laser effect with high output and great effects. ● When using multiple units together, you can make a great and cost effective beam-show ● Sound-controlled via built-in microphone ●... -
Page 11: Backside
Galactic RGB300 Backside Fig. 02 07) 3-pin DMX signal connector OUT 08) 3-pin DMX signal connector IN 09) Safety eye 10) Ground/earth connection 11) Interlock 12) Remote control plug 13) Control panel + menu buttons 14) Built-in microphone 15) IEC Power connector AC 100-240V... - Page 12 Galactic RGB300 The Interlock plug/remote plug and safety keys are included in the box. The interlock is the “included-in-the-box” successor for the optional remote interlock (51316). They should be kept with the Galactic laser !!! The following safety precautions should be followed: ●...
-
Page 13: Control Modes
Galactic RGB300 Control Modes There are 4 modes: Auto Program Sound-controlled Master/slave DMX-512 (10CH) One Galactic (Auto Program) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 14: Multiple Galactics (Dmx Control)
Galactic RGB300 Multiple Galactics (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 15: Fixture Linking
FL083 (3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m). ● DAP Audio DMX adapter: 5-pin/3-pin. Ordercode FLA29. ● DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Galactic RGB300 can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 51345... -
Page 16: Control Panel
Galactic RGB300 Control Panel A) LED display FUNC button C) UP button D) DOWN button ENTER button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) -
Page 17: Menu Overview
Galactic RGB300 Menu Overview The Galactic RGB300 will only show its version number at start-up ! Main Menu Options Auto Run Programs Sound-controlled Mode Sound sensitivity DMX Channels Slave mode IR remote control mode Test mode You can only change a certain setting when the display is blinking. If you cannot change a certain value, please press the FUNC button once and then change the value. -
Page 18: Auto Run Programs
Galactic RGB300 1. Auto Run Programs With this menu you can start several Auto run programs. 01) Press the FUNC button until the display shows 02) Press the UP/DOWN buttons to choose between 7 types of built-in programs 03) Choose the desired built-in program and press the ENTER button to confirm. -
Page 19: Ir Remote Control Mode
Galactic RGB300 6. IR remote control mode With this menu you can activate the IR-remote mode. 01) Press the FUNC button until the display shows 02) Press the ENTER button to confirm. 03) Now you can use the included IR-remote. -
Page 20: Dmx Channels
Galactic RGB300 DMX Channels 10 channels Channel 1 – Auto Programs 0-14 Auto program mode 15-29 Auto program 1 30-44 Auto program 2 45-59 Auto program 3 60-74 Auto program 4 75-89 Auto program 5 90-104 Auto program 6 105-119... -
Page 21: Patterns
Galactic RGB300 Channel 6 – X-axis Moving 0-127 128 different positions fixed X-Axis rolling 128-191 Clockwise moving from slow to fast 192-255 Counterclockwise moving from slow to fast Channel 7 – Y-axis Moving 0-127 128 different positions fixed Y-Axis rolling... -
Page 22: Maintenance
Galactic RGB300 Maintenance The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 23 Galactic RGB300 Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures do not cables are plugged in. function at all. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 24: Product Specifications
Galactic RGB300 Product Specifications Model: Galactic RGB300 Input Voltage: 100-240V AC, 50/60Hz Continuous Power: Fuse: T1L/250V Dimensions: 168 x 148 x 80 mm (LxWxH) (excl. bracket) Weight: 1,38 kg Operation and Programming Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+) - Page 25 Galactic RGB300 Dimensions Ordercode: 51345...
-
Page 26: Notes
Galactic RGB300 Notes Ordercode: 51345... - Page 27 Galactic RGB300 Ordercode: 51345...
- Page 28 ©2019 Showtec...
