- Page 1 MANUAL ENGLISH Compact Par 60 COB RGBW Ordercode: 42583 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact Par 60 COB RGBW Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Compact Par 60 COB RGBW IEC power cable (1,5 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Compact Par 60 COB RGBW • The user is responsible for correct positioning and operating of the Compact Par 60 COB RGBW. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. •... -
Page 6: Connection With The Mains
Compact Par 60 COB RGBW The Compact Par 60 COB RGBW can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Compact Par 60 COB RGBW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

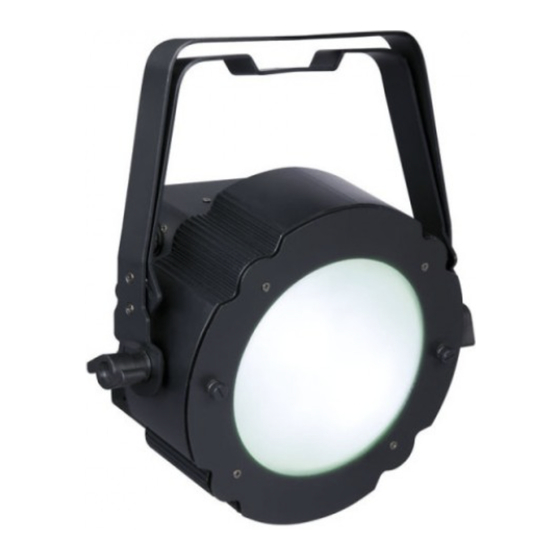

Description of the device Features The Showtec Compact par 60 COB is a COB LED parcan in a compact housing. It offers RGBW colors powered by 1 single 60 watt COB LED. The COB technology ensures a high definition perfect color mix. It has a big reflector with a large soft 120°... -
Page 9: Backside
Compact Par 60 COB RGBW Backside Fig. 02 04) IEC power connector OUT 05) 3-pin DMX signal connector OUT 06) Cooling fan 07) 4-digit LED display + menu buttons 08) IEC power connector IN 09) 3-pin DMX signal connector IN Installation Remove all packing materials from the Compact Par 60 COB RGBW. -
Page 10: Beam Angle Adjustment
Compact Par 60 COB RGBW Beam angle adjustment The Compact Par 60 COB RGBW can be used with a 20° beam angle or a 120° beam angle. Please follow the instructions below to change the beam angle. 01) Loosen the screws in the indicated direction. 02) Take the Fresnel lens from the fixture. -
Page 11: Control Modes
Compact Par 60 COB RGBW Control Modes There are 6 modes: • Auto run • Built-in programs • Static Color • Sound-controlled • Master/slave • DMX-512 (4CH, 6CH or 11CH) One Compact Par 60 COB RGBW (Auto Run Mode, Built-in programs and Static Color Mode) 01) Fasten the effect light to a firm trussing. -
Page 12: Multiple Compact Pars 60 Cob Rgbw (Dmx Control)
Compact Par 60 COB RGBW Multiple Compact Pars 60 COB RGBW (Master/Slave control) Fig. 03 Multiple Compact Pars 60 COB RGBW (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). - Page 13 Compact Par 60 COB RGBW Multiple Compact Pars 60 COB RGBW DMX Set Up Fig. 04 Note : Link all cables before connecting electric power Ordercode: 42583...
-
Page 14: Fixture Linking
Compact Par 60 COB RGBW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Compact Par 60 COB RGBW Control Panel A) LED display Mode button C) Setup button D) Up button Down button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) DMX Addressing The control panel on the side of the device allows you to assign DMX fixture addresses, which is the first... -
Page 16: Menu Overview
Compact Par 60 COB RGBW Menu Overview Main Menu Options Auto run Built in programs Master-Slave DMX address / DMX configuration Sound-controlled Mode Static Color Mode Settings Info Ordercode: 42583... -
Page 17: Auto Run Mode
Compact Par 60 COB RGBW Auto Run Mode With this menu you can start the Auto Run program of the Compact Par 60 COB RGBW. 01) Press the Mode button and then the Up/Down buttons, until the display shows 02) The Compact Par will start immediately the Auto Run program. Built-in Programs With this menu you can set the built-in programs. -
Page 18: Sound Control Mode
Compact Par 60 COB RGBW Sound control mode With this menu you can set the sensitivity of the sound mode. 01) Press the Mode button and then the Up/Down buttons, until the display shows 02) Press the Setup button to open this menu. 03) Use the Up/Down buttons to change the values. -
Page 19: Info
Compact Par 60 COB RGBW 07) With option you can set the Dimmer Speed, smooth or fast. 08) With option you can reset the device to the factory settings. If you choose “Yes” the fixture will reset and start up in the Auto Run mode. 09) With option you can set the fixture to “HOLD”... -
Page 20: Dmx Channels
Compact Par 60 COB RGBW DMX Channels 4 channels Channel 1 – Red Dimmer intensity 0-255 Red from 0-100% Channel 2 – Green Dimmer intensity 0-255 Green from 0-100% Channel 3 – Blue Dimmer intensity 0-255 Blue from 0-100% Channel 4 – White Dimmer intensity 0-255 White from 0-100% 6 channels... - Page 21 Compact Par 60 COB RGBW Channel 4 – Color presets ( CH1 must be set between 001-255 No function 8-13 Color 1 (R255, G000, B000, W000) 14-20 Color 2 (R255, G000, B000, W100) 21-27 Color 3 (R255, G000, B000, W200) 28-34 Color 4 (R255, G050, B000, W000) 35-41...
- Page 22 Compact Par 60 COB RGBW Channel 6 – Speed color running 0-255 Gradual speed adjustment, from slow to fast Channel 7 – Sounde mode 0-50 No function 51-255 Gradual adjustment Sensitivity, from 0-100% Channel 8 – Red Dimmer intensity ( CH1 must be set between 001-255 0-255 Red from 0-100% Channel 9 –...
-
Page 23: Maintenance
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Compact Par to your Showtec dealer. 03) The fuse. Replace the fuse. See page 22 for replacing the fuse. -
Page 24: No Response To Dmx
Compact Par 60 COB RGBW No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 25: Product Specifications
Compact Par 60 COB RGBW Product Specifications Model: Showtec Compact Par 60 COB RGBW Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 64W (full output) Drive Current: 450mA Refresh rate 12 kHz DMX linking: 30 pcs Protection rate: IP-20 Fuse: T1L/250V... -
Page 26: Dimensions
Compact Par 60 COB RGBW Dimensions Ordercode: 42583... -
Page 27: Notes
Compact Par 60 COB RGBW Notes Ordercode: 42583... - Page 28 ©2016 Showtec...
