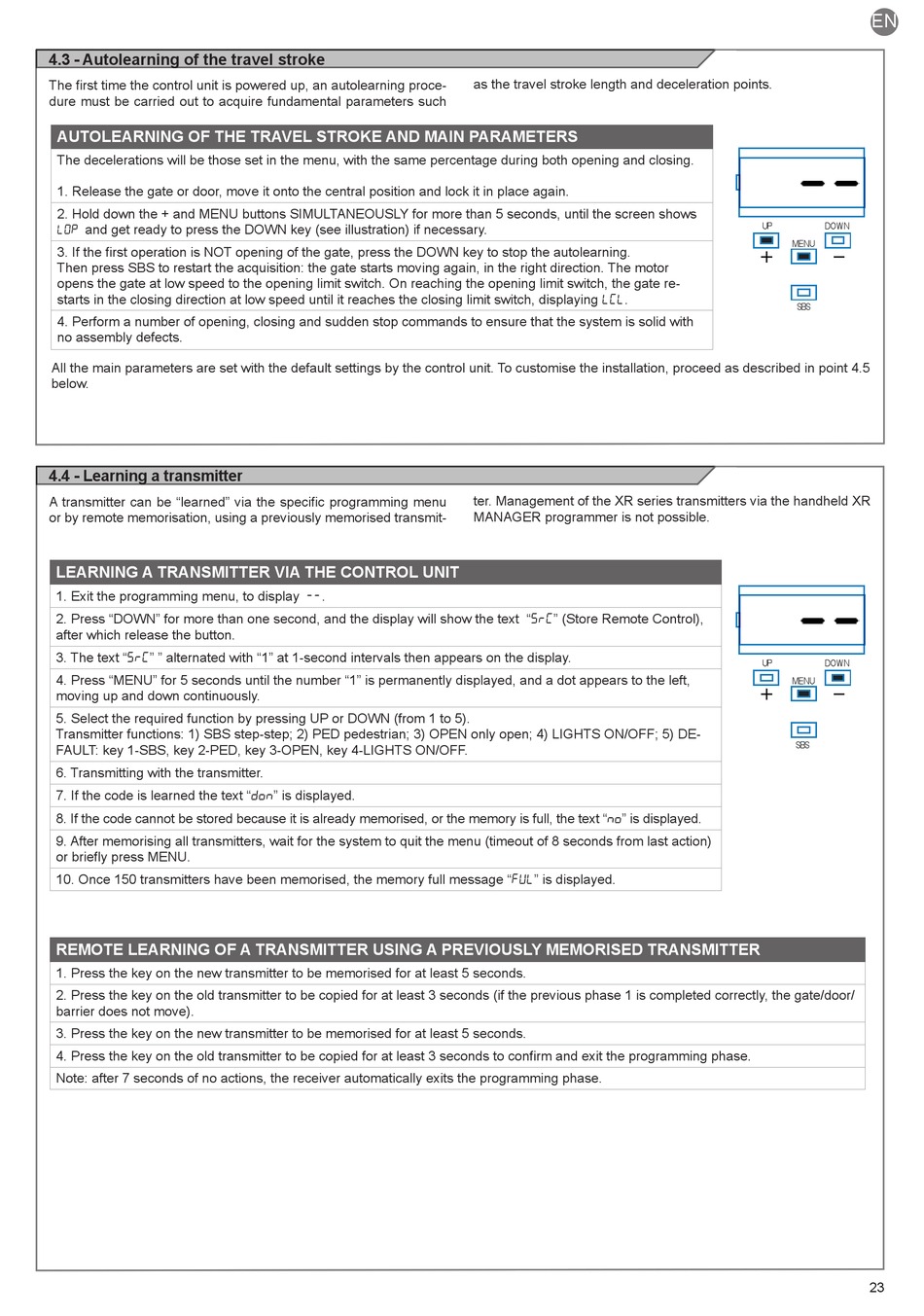

4.3 - Autolearning of the travel stroke

The irst time the control unit is powered up, an autolearning proce-
dure must be carried out to acquire fundamental parameters such
AUTOLEARNING OF THE TRAVEL STROKE AND MAIN PARAMETERS
The decelerations will be those set in the menu, with the same percentage during both opening and closing.
1. Release the gate or door, move it onto the central position and lock it in place again.
2. Hold down the + and MENU buttons SIMULTANEOUSLY for more than 5 seconds, until the screen shows
LOP and get ready to press the DOWN key (see illustration) if necessary.
3. If the irst operation is NOT opening of the gate, press the DOWN key to stop the autolearning.
Then press SBS to restart the acquisition: the gate starts moving again, in the right direction. The motor
opens the gate at low speed to the opening limit switch. On reaching the opening limit switch, the gate re-
starts in the closing direction at low speed until it reaches the closing limit switch, displaying
4. Perform a number of opening, closing and sudden stop commands to ensure that the system is solid with
no assembly defects.
All the main parameters are set with the default settings by the control unit. To customise the installation, proceed as described in point 4.5
below.
4.4 - Learning a transmitter
A transmitter can be "learned" via the speciic programming menu
or by remote memorisation, using a previously memorised transmit-
LEARNING A TRANSMITTER VIA THE CONTROL UNIT
1. Exit the programming menu, to display
2. Press "DOWN" for more than one second, and the display will show the text "
after which release the button.
SRC
3. The text "
" " alternated with "1" at 1-second intervals then appears on the display.
4. Press "MENU" for 5 seconds until the number "1" is permanently displayed, and a dot appears to the left,
moving up and down continuously.
5. Select the required function by pressing UP or DOWN (from 1 to 5).
Transmitter functions: 1) SBS step-step; 2) PED pedestrian; 3) OPEN only open; 4) LIGHTS ON/OFF; 5) DE-
FAULT: key 1-SBS, key 2-PED, key 3-OPEN, key 4-LIGHTS ON/OFF.
6. Transmitting with the transmitter.
7. If the code is learned the text "
8. If the code cannot be stored because it is already memorised, or the memory is full, the text "
9. After memorising all transmitters, wait for the system to quit the menu (timeout of 8 seconds from last action)
or briely press MENU.
10. Once 150 transmitters have been memorised, the memory full message "
REMOTE LEARNING OF A TRANSMITTER USING A PREVIOUSLY MEMORISED TRANSMITTER
1. Press the key on the new transmitter to be memorised for at least 5 seconds.
2. Press the key on the old transmitter to be copied for at least 3 seconds (if the previous phase 1 is completed correctly, the gate/door/
barrier does not move).
3. Press the key on the new transmitter to be memorised for at least 5 seconds.
4. Press the key on the old transmitter to be copied for at least 3 seconds to conirm and exit the programming phase.
Note: after 7 seconds of no actions, the receiver automatically exits the programming phase.
--
.
don
" is displayed.
as the travel stroke length and deceleration points.
LCL
.
ter. Management of the XR series transmitters via the handheld XR
MANAGER programmer is not possible.
SRC
" (Store Remote Control),
no
" is displayed.
FUL
" is displayed.
EN
UP DOWN
MENU
SBS
UP DOWN
MENU
SBS
