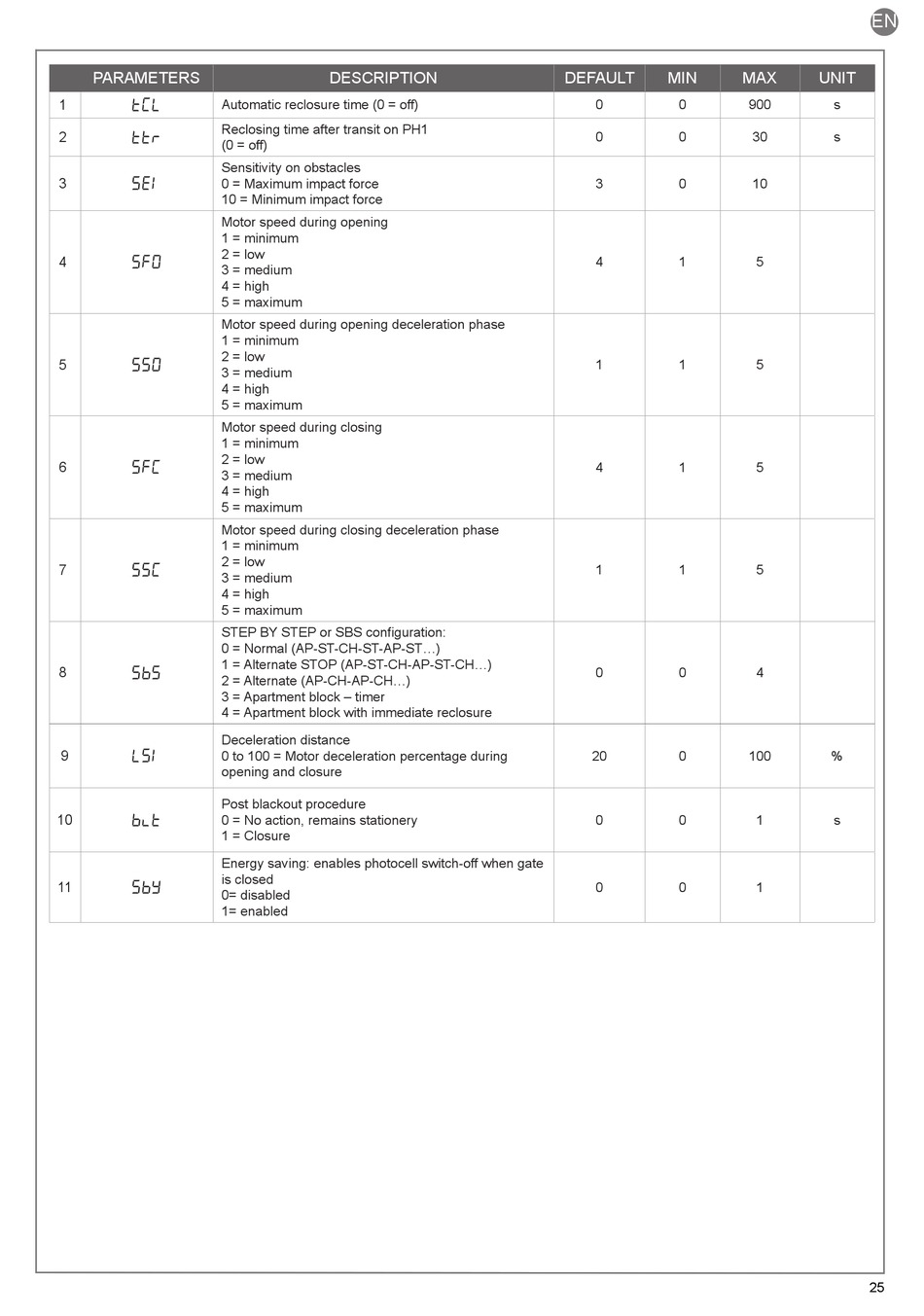

PARAMETERS
TCL
1 Automatic reclosure time (0 = off)
ttr
Reclosing time after transit on PH1
2
(0 = off)
SEI
Sensitivity on obstacles
3 0 = Maximum impact force
10 = Minimum impact force
Motor speed during opening
1 = minimum
SFO
2 = low
4
3 = medium
4 = high
5 = maximum
Motor speed during opening deceleration phase
1 = minimum
SSO
2 = low
5
3 = medium
4 = high
5 = maximum
Motor speed during closing
1 = minimum
SFC
2 = low
6
3 = medium
4 = high
5 = maximum
Motor speed during closing deceleration phase
1 = minimum
SSC
2 = low
7
3 = medium
4 = high
5 = maximum
STEP BY STEP or SBS coniguration:
0 = Normal (AP-ST-CH-ST-AP-ST...)
SBS
1 = Alternate STOP (AP-ST-CH-AP-ST-CH...)
8
2 = Alternate (AP-CH-AP-CH...)
3 = Apartment block – timer
4 = Apartment block with immediate reclosure
LSI Deceleration distance
9
0 to 100 = Motor deceleration percentage during
opening and closure
BlT Post blackout procedure
10 0 = No action, remains stationery
1 = Closure
Energy saving: enables photocell switch-off when gate
SBY
is closed
11
0= disabled
1= enabled
DESCRIPTION DEFAULT
MIN
0 0
0 0
3 0
4 1
1 1
4 1
1 1
0 0
20 0
0 0
0 0
EN
UNIT
MAX
900 s
30 s
10
5
5
5
5
4
100 %
1 s
1
25 25
