2 - INTRODUCING THE PRODUCT
2.1 - Description of the control unit
The CT10224 control unit is the most modern, eficient system for the
control of Key Automation motors for the electric opening and closure
of sliding gates, up-and-over doors and electromechanical barrier.
All other, improper, use of the control unit is forbidden. The CT10224
1
4
BATTERY

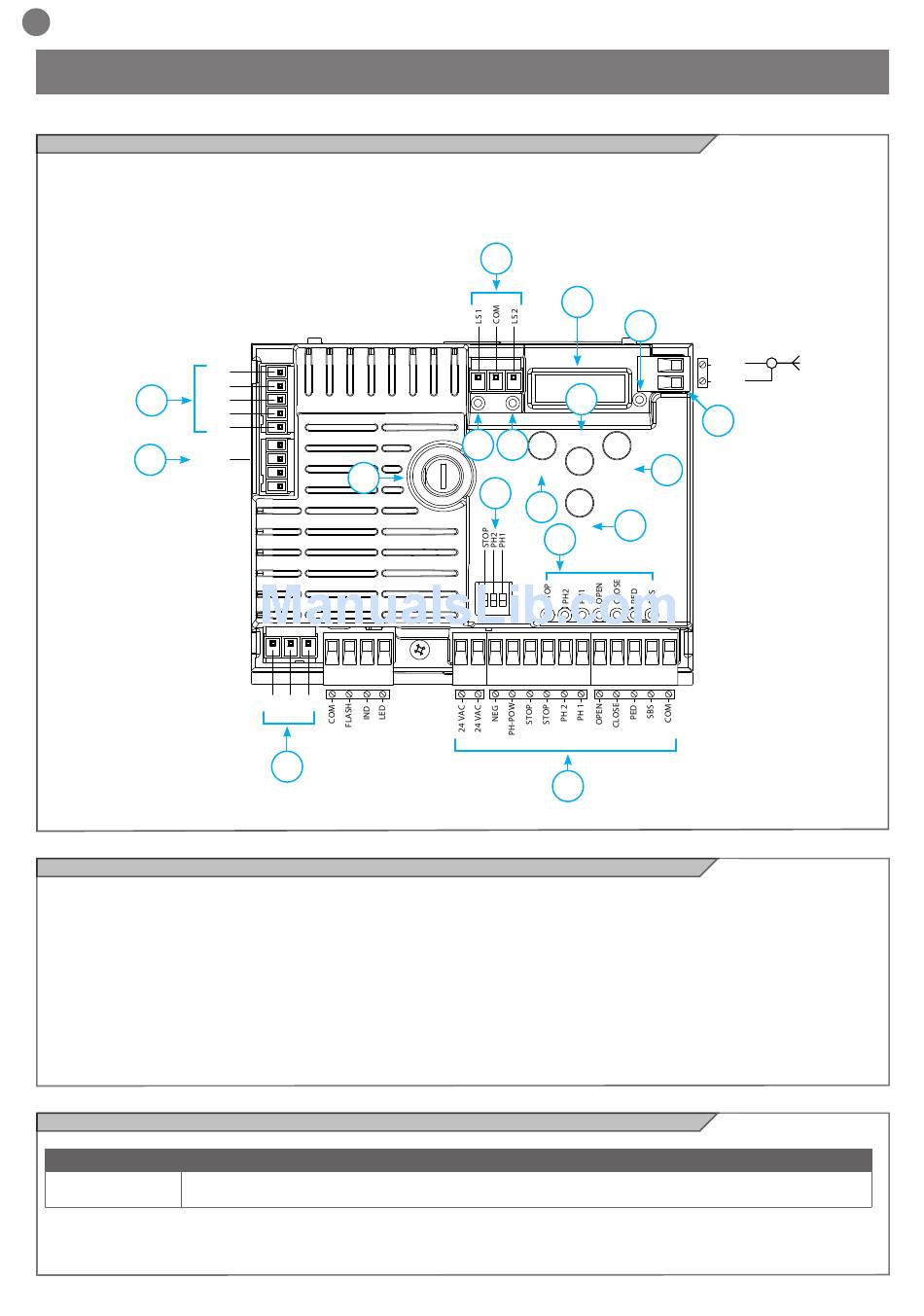

2.2 - Description of the connections
1- Motor power supply connections and encoder
2- Transformer power supply connections
3- 24Vdc and 24Vac output connections to controls and safety
devices
4- Connector for battery charger KBP
5- Limit switch connector
6- Functions display
7- Safety device dip switch
8- Fuse 2A slow-acting
9- STOP-PH2-PH1-OPEN-CLOSE-PED-SBS safety led and led
input led
2.3 - Models and technical characteristics
DESCRIPTION
CODE
900CT10224
24V control unit for sliding gates, up-and-over doors or electromechanical barrier
18
M +
M -
V +
ENC
NEG
8
POWER SUPPLY
2
has a display allowing easy programming and constant monitoring
of the input status; the menu structure also allows easy setting of
working times and operating modes.
5
6
17
14
10 11
MENU
DOWN
UP
(RADIO)
7
13
12
SBS
9
3
10- Limit switch indicator LED LSC
11- Limit switch indicator LED LSO
12- STEPPING SBS button
13- UP + button
14- MENU button
15- DOWN - button
16- Antenna
17- KEY led
ANT
SHIELD
KEY
16
