Altronix AL1012ULX Installation Manual page 5

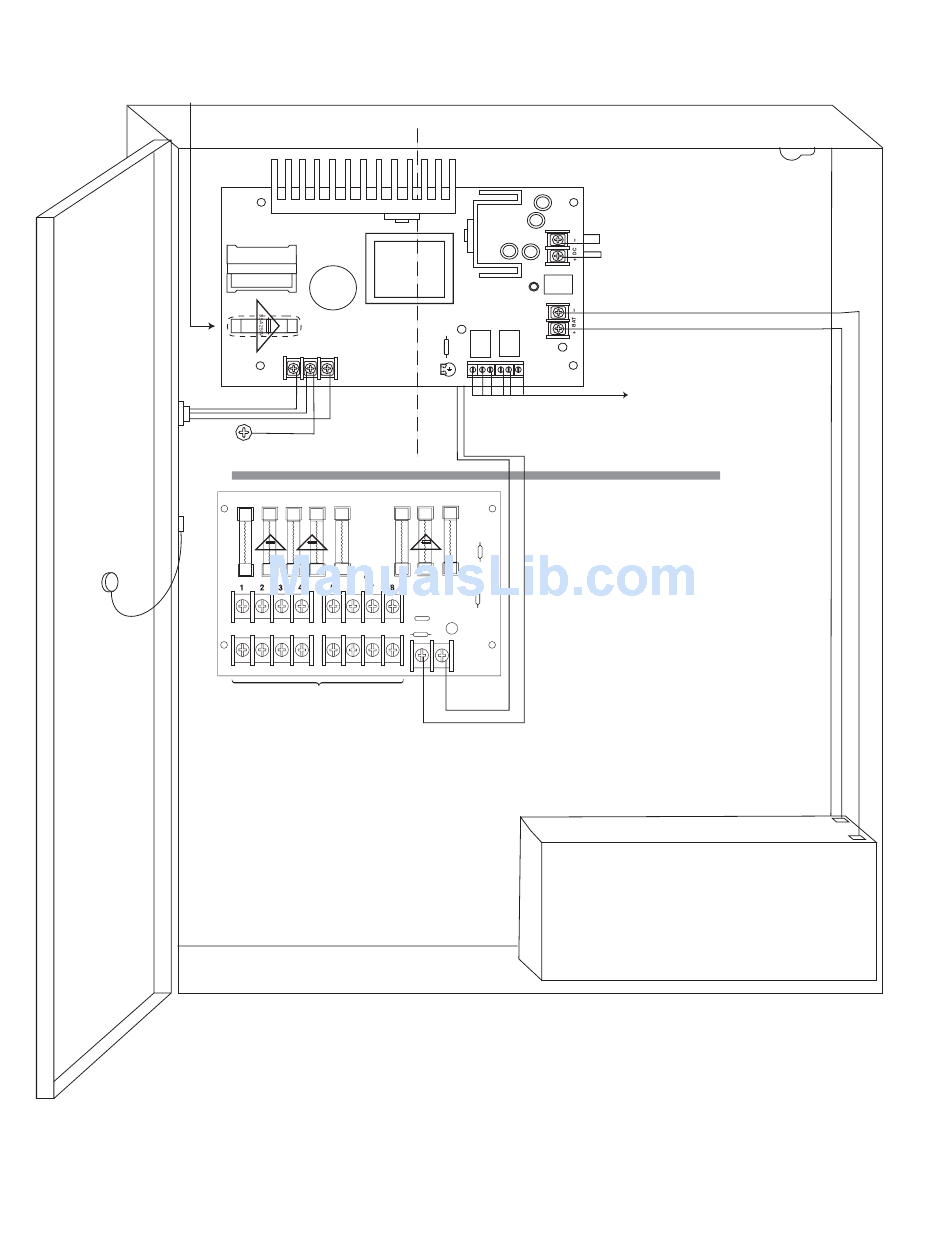

Fig. 1
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuse with the same type
and rating 3.5A, 250V. Replace fuse cover before energizing.
Door
Wire Strap
(from
Enclosure
to Door)
L G N
115 power
mains
(non-power
limited)
Green Lead
Class 1
3.5A 250V 3.5A 250V
P
F U S E D P O W E R O U T P U T S
N
C O M M O N P O W E R O U T P U T S
DC Output to devices
(non-power limited)
Battery connection (non-power limited)
AC
DC
BAT FAIL NC C NO NC C NO
AC FAIL
3.5A 250V
Provide 1/4" separation between
power limited and all other circuits
D1
LED
R1
1 2
INPUT
Battery
- 5 -
Non-power limited
Battery and AC
Supervision Circuit
(power limited)
Use separate knockout
Divider
