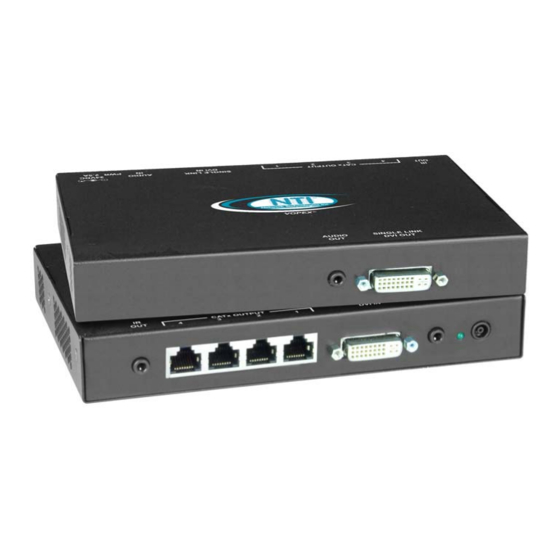

VOPEX-C6DVIA-LA-4 (Front and Rear View)
1275 Danner Dr
Tel:330-562-7070
Fax:330-562-1999
Aurora, OH 44202
www.networktechinc.com
VOPEX
VOPEX-C6DVI(A)-4
Splitter/Extender
Series
®
ST-C6DVIA-IR-300 Remote Unit
(not included)
MAN151 Rev Date 1/21/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NTI Vopex-C6DVIA-4
Summary of Contents for NTI Vopex-C6DVIA-4
- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com VOPEX Series ® VOPEX-C6DVI(A)-4 DVI Video/Audio or DVI Video Only Splitter/Extender Installation and Operation Manual VOPEX-C6DVIA-LA-4 (Front and Rear View) ST-C6DVIA-IR-300 Remote Unit (not included) MAN151 Rev Date 1/21/2014...
- Page 2 Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result. Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................5 Preparation for Installation .............................. 5 VOPEX Installation................................6 VOPEX-C6DVI(A)-x..............................6 VOPEX-C6DVI(A)-LA-x ............................... 7 Remote Unit Installation ..............................8 ST-C6DVI(A)-R-300..............................8 Connect the CATx cable ..............................9 Infrared Control ................................ -
Page 4: Introduction
• Digital transmission of audio signals reduces any loss in quality. • Compatible with all NTI A/V switches and splitters, enabling the joining of products to create a system that satisfies all networking needs. • Broadcast real-time DVI video to multiple display locations. -
Page 5: Materials
ST-C6DVIA-IR-300 VOPEX-C6DVIA-LA-4 Contact your nearest NTI distributor or NTI directly for all of your KVM needs at 800-RGB-TECH (800-742-8324) in US & Canada or 330-562-7070 (Worldwide) or at our website at www.networktechinc.com and we will be happy to be of assistance. -
Page 6: Features And Functions
NTI VOPEX SERIES DVI SPLITTER/EXTENDER FEATURES AND FUNCTIONS VOPEX LABEL CONNECTOR DESCRIPTION Audio Out 3.5mm Stereo jack For connecting self-powered stereo speakers (models with Audio support and Local Access feature only) Single Link DVI DVI female video for connecting the local display device (only models with Local Access... - Page 7 NTI VOPEX SERIES DVI SPLITTER/EXTENDER XTENDEX Remote Unit (Sold Separately) LABEL CONNECTOR DESCRIPTION 1.0mm Power Jack 24VDC 1.0A Not used in this application IR In 3.5mm Stereo Jack for connecting the IR Receiver CATx RJ45 Female for connecting the CAT5e/6/6a/7 cable between the VOPEX and...
-
Page 8: Limitations
Note: CAT5 connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. -
Page 9: Vopex Installation
NTI VOPEX SERIES DVI SPLITTER/EXTENDER VOPEX INSTALLATION VOPEX-C6DVI(A-LA)-4 Note: VOPEX-C6DVI-4 Video Only Splitter/Extender does not have audio support. If the audio support is not present, please disregard all audio references. 1. Make connections between the VOPEX and the audio and video source(s). (See Fig. 1.) Connect one end of the DVI-IS-3-MM (supplied) to the DVI connector on the video source. -
Page 10: Figure 2- Connect Local User Components To Vopex-C6Dvia-La-4
NTI VOPEX SERIES DVI SPLITTER/EXTENDER VOPEX-C6DVIA-LA-4 Once the DVI video and stereo audio source connections have been made, if the Local Access (LA) option is present, a monitor and (where applicable) self-powered stereo speakers can be connected. 1. Connect the cable from the local user's HDTV display to the DVI female connector marked "DVI Video Out" on the VOPEX. -
Page 11: Remote Unit Installation
NTI VOPEX SERIES DVI SPLITTER/EXTENDER REMOTE UNIT INSTALLATION ST-C6DVI(A)-R-300 Position a ST-C6DVIA-R-300 Remote Unit such that the CATx cable, the monitor cable, and speaker cable can each reach the Remote Unit comfortably. Connect the remote user's monitor cable to the female DVI video connector on the Remote Unit. -
Page 12: Connect The Catx Cable
NTI VOPEX SERIES DVI SPLITTER/EXTENDER CONNECT THE CATX CABLE Make sure the CATx cable has been installed in accordance with the “Preparation for Installation” instructions on page 5. Connect a CATx cable to one of the ports marked “CATx Output” on the VOPEX. -
Page 13: Infrared Control
NTI VOPEX SERIES DVI SPLITTER/EXTENDER INFRARED CONTROL The VOPEX includes a port for connecting an infrared emitter that when used with an infrared receiver (connected at the Remote Unit end) will work in conjunction with the IR remote control used to operate the video/audio source. -
Page 14: Plug-In And Boot Up
NTI VOPEX SERIES DVI SPLITTER/EXTENDER PLUG-IN AND BOOT UP Plug the power cord from each video device and the power supply for each audio device into a power outlet. 2.5A Connect the 24VDC AC adapter power connector to the power port on the VOPEX (16-port models have a country-specific line cord). -
Page 15: Cascading
NTI VOPEX SERIES DVI SPLITTER/EXTENDER CASCADING The VOPEX-C6DVI-LA-4 can be cascaded for larger configurations and greater flexibility. By connecting the “DVI Video Out” port (models with Local Access feature only) on one VOPEX with the “DVI-Video In” port on another VOPEX (4, 8, or 16 port, doesn’t matter what size), your configuration can increase in size with a minimum of effort. -
Page 16: Technical Specifications
NTI VOPEX SERIES DVI SPLITTER/EXTENDER TECHNICAL SPECIFICATIONS Video Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p Video Connectors DVI Female Input Video Signal TMDS Video Color Format Up to 36 bit DVI Support DVI 1.0... - Page 17 NTI VOPEX SERIES DVI SPLITTER/EXTENDER Distances and Resolutions for CAT5e,CAT6, CAT6a and CAT7 Cables Solid and Stranded Unshielded (UTP) and Shielded (STP) Twisted Pair Resolutions Cable Length ft. Max. Resolution 1080p / 8-bit 1920x1200/ 60Hz CAT5e 1080i / 12-bit Solid UTP...
-
Page 18: Interconnection Cable Wiring Method
Brown Figure 8- View looking into RJ45 female Note: CATx connection cable used between NTI XTENDEX Series Local and Remote or any XTENDEX Series products should not be run underground, outdoors or between buildings. WARNING: Outdoor or underground runs of CATx cable could be dangerous and will void the warranty. -
Page 19: Warranty Information
NTI VOPEX SERIES DVI SPLITTER/EXTENDER Problem Cause Solution • • Monitor sometimes goes Electrical power system is very Make sure the interconnection cable is not near any blank for an instant or the noisy, particularly the ground. power lines. video is noisy •...
