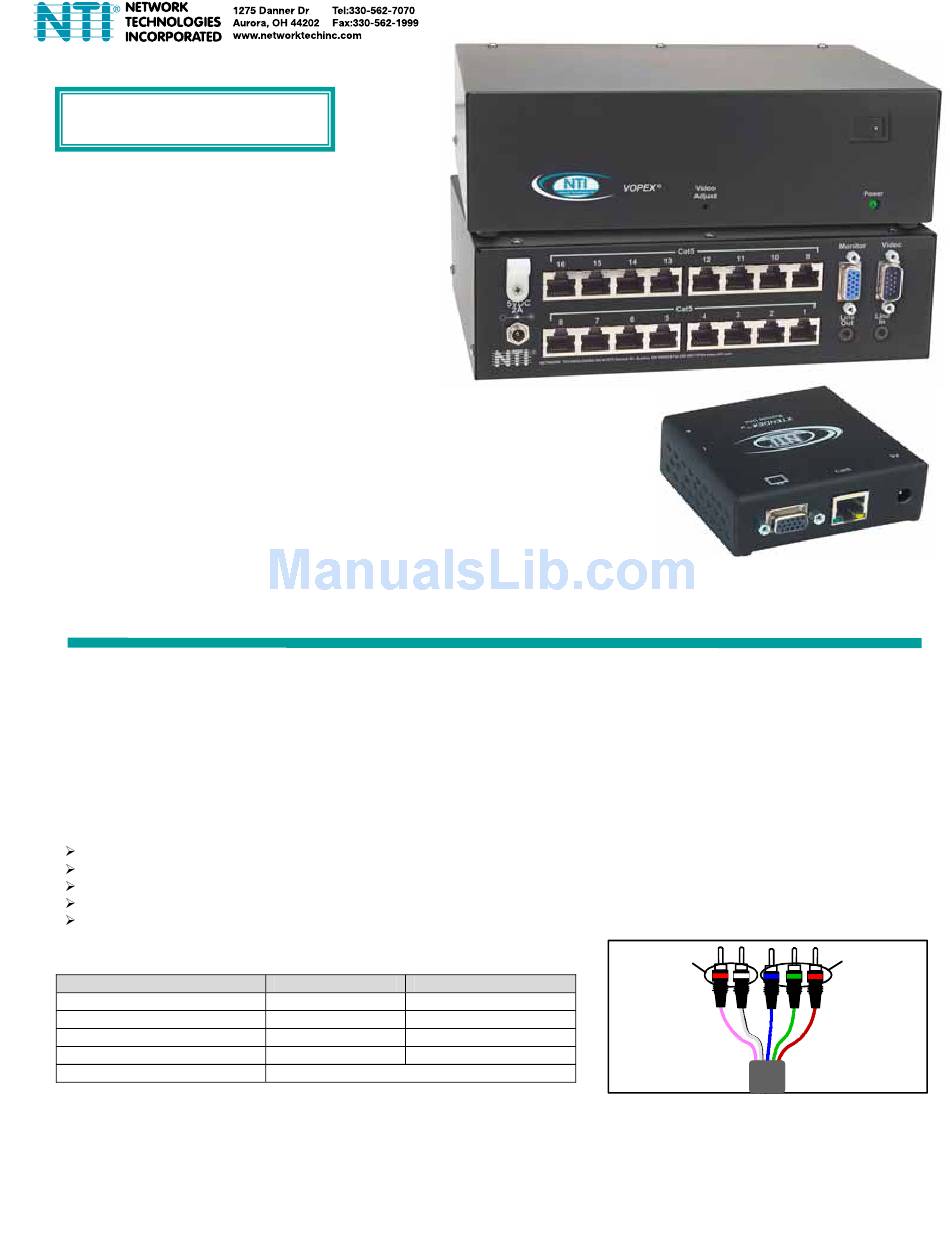

NTI VOPEX-C5VA-x Quick Installation Manual

®
VOPEX Series
VOPEX-C5VA-x
VOPEX-C5V-x
VOPEX-C5SVA-x
VOPEX-C5SV-x
VOPEX-C5HDTV-x
VOPEX-C5HDA-x
VIDEO/AUDIO or VIDEO ONLY
SPLITTER/EXTENDER
Quick Installation Guide

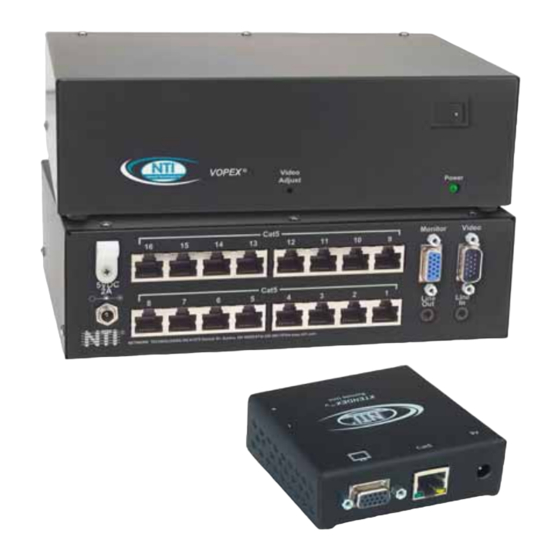

The VOPEX Series Cat5 Video/Audio Splitter/Extender (VOPEX) is designed to enable one Video/Audio source to be viewed and
heard in 4, 8, or 16 different remote locations. Remote video and audio devices can be located as much as 600 feet away from the
source via Category 5 unshielded twisted-pair cable. The VOPEX also allows a local video and audio device to be located near the
source.
Position the VOPEX such that all connections can be made without straining the cables. The CAT5 cables should be routed away
from any sources of magnetic fields or electrical interference that might reduce the quality of the video and audio signals (i.e. AC
motors, welding equipment, etc.).
Materials Included with this kit:
VOPEX-C5VA-x / -C5V-x / -C5SVA-x / -C5SV-x / -C5HDTV-x / -C5HDA-x (one of these)
120VAC or 240VAC at 50 or 60Hz-9VDC/1.5A AC Adapter
Line cord, country specific
CD with a pdf file of this manual and pdf file of the Quick Installation Guide
This Quick Installation Guide
Additional materials Included:
For Model
VOPEX-C5VA-x
VOPEX-C5V-x
VOPEX-C5SVA-x
VOPEX-C5SV-x
VOPEX-C5HDTV-x
Legend:
•
x= 4, 8, or 16 for number of ports
•
MM- indicates male-male connectors
•
VEXT-3- 15HD male-female video cable for connecting the VOPEX to the video source
•
SA-3-MM 3.5mm stereo plug -stereo plug cable for connecting the VOPEX to the audio source
•
SVEXT-3-MM 4-pin miniDIN male-male s-video cable- for connecting the VOPEX-C5SVA / -C5SV-x to the video source
Video Cable Stereo plug Cable
VEXT-3 SA-3-MM
VEXT-3 Not applicable
SVEXT-3-MM SA-3-MM
SVEXT-3-MM Not applicable
CMPSAEXT-1.5-MM (see image-right)
Stereo Audio
connectors
CMPSAEXT-1.5-MM
(Viewed with the
cable laid flat)
1
(Receiver not included)
Component
Video
connectors
MAN072 Rev 7-24-06
