NTI
NETWORK
R
TECHNOLOGIES
INCORPORATED
DVI Video/Audio or DVI Video Only
Installation and Operation Manual

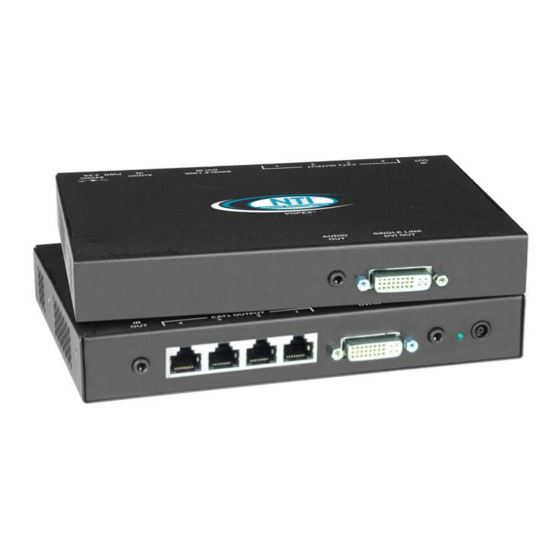

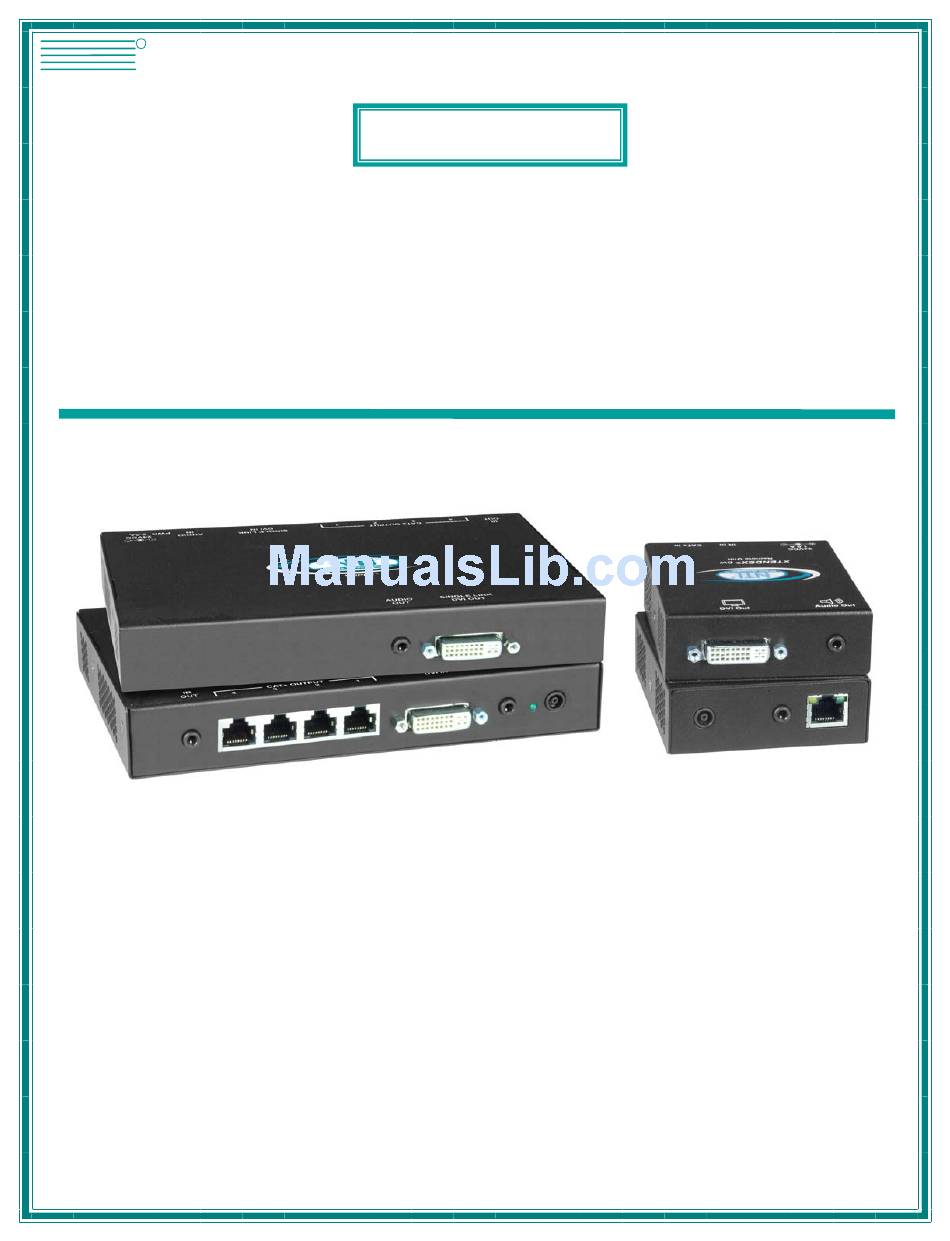

VOPEX-C6DVIA-LA-4 (Front and Rear View)
1275 Danner Dr
Tel:330-562-7070
Fax:330-562-1999
Aurora, OH 44202
www.networktechinc.com
VOPEX
VOPEX-C6DVI(A)-4
Splitter/Extender
®
Series
ST-C6DVIA-IR-300 Remote Unit
(not included)
MAN151 Rev Date 1/21/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NTI VOPEX-C6DVIA-4
Summary of Contents for NTI VOPEX-C6DVIA-4
- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com ® VOPEX Series VOPEX-C6DVI(A)-4 DVI Video/Audio or DVI Video Only Splitter/Extender Installation and Operation Manual VOPEX-C6DVIA-LA-4 (Front and Rear View) ST-C6DVIA-IR-300 Remote Unit (not included) MAN151 Rev Date 1/21/2014...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Features and Functions..............................3 Limitations ..................................5 Preparation for Installation .............................. 5 VOPEX Installation................................6 VOPEX-C6DVI(A)-x..............................6 VOPEX-C6DVI(A)-LA-x ............................... 7 Remote Unit Installation ..............................8 ST-C6DVI(A)-R-300..............................8 Connect the CATx cable ..............................9 Infrared Control ................................ -
Page 4: Introduction
NTI VOPEX SERIES DVI SPLITTER/EXTENDER INTRODUCTION The VOPEX® Series Cat5 DVI DVI Splitter/Extender (VOPEX) simultaneously distributes high resolution single link digital DVI video from one video source to 4 displays, each located up to 300 feet away using a single CAT5e/6/6A/7 (CATx) cable. Remote video and audio devices can be located as much as 300 feet away from the source via Category 5e/6/6A/7 unshielded or shielded (see chart on page 14) twisted-pair cable. -
Page 5: Materials
NTI VOPEX SERIES DVI SPLITTER/EXTENDER MATERIALS Materials Included with this kit: VOPEX-C6DVI(A)-(LA)-4 120VAC or 240VAC at 50 or 60Hz-24VDC/2.5A AC Adapter Line cord, country specific DVI-IS-3-MM 3 Foot DVI Male-Male Single-Link Cable SA-3-MM 3 Foot 3.5mm male-male stereo plug -stereo plug cable (only models with audio option) CD with a pdf file of this manual 3 Foot IR-EMITTER (IR-EMTR-3) Additional materials not supplied but are required:... -
Page 6: Features And Functions
NTI VOPEX SERIES DVI SPLITTER/EXTENDER FEATURES AND FUNCTIONS VOPEX LABEL CONNECTOR DESCRIPTION Audio Out 3.5mm Stereo jack For connecting self-powered stereo speakers (models with Audio support and Local Access feature only) Single Link DVI DVI female video for connecting the local display device (only models with Local Access connector feature) IR Out... - Page 7 NTI VOPEX SERIES DVI SPLITTER/EXTENDER XTENDEX Remote Unit (Sold Separately) LABEL CONNECTOR DESCRIPTION 1.0mm Power Jack 24VDC 1.0A Not used in this application 3.5mm Stereo Jack for connecting the IR Receiver IR In CATx RJ45 Female for connecting the CAT5e/6/6a/7 cable between the VOPEX and Remote unit Yellow LED traffic indicator- illuminates when there is communication between the...
-
Page 8: Limitations
NTI VOPEX SERIES DVI SPLITTER/EXTENDER LIMITATIONS • The audio input of the VOPEX-C6DVIA-(LA)-4 is compatible with the following standard CPU audio outputs: • Line out - typically lime green in color • Speaker out- typically orange in color • Headphone out- typically located on the CD-ROM •... -
Page 9: Vopex Installation
NTI VOPEX SERIES DVI SPLITTER/EXTENDER VOPEX INSTALLATION VOPEX-C6DVI(A-LA)-4 Note: VOPEX-C6DVI-4 Video Only Splitter/Extender does not have audio support. If the audio support is not present, please disregard all audio references. 1. Make connections between the VOPEX and the audio and video source(s). (See Fig. 1.) Connect one end of the DVI-IS-3-MM (supplied) to the DVI connector on the video source. -
Page 10: Figure 2- Connect Local User Components To Vopex-C6Dvia-La-4
NTI VOPEX SERIES DVI SPLITTER/EXTENDER VOPEX-C6DVIA-LA-4 Once the DVI video and stereo audio source connections have been made, if the Local Access (LA) option is present, a monitor and (where applicable) self-powered stereo speakers can be connected. 1. Connect the cable from the local user's HDTV display to the DVI female connector marked "DVI Video Out" on the VOPEX. -
Page 11: Remote Unit Installation
NTI VOPEX SERIES DVI SPLITTER/EXTENDER REMOTE UNIT INSTALLATION ST-C6DVI(A)-R-300 Position a ST-C6DVIA-R-300 Remote Unit such that the CATx cable, the monitor cable, and speaker cable can each reach the Remote Unit comfortably. Connect the remote user's monitor cable to the female DVI video connector on the Remote Unit. Connect the remote user's speakers (where applicable) to the 3.5mm female stereo connector on the Remote Unit. -
Page 12: Connect The Catx Cable
NTI VOPEX SERIES DVI SPLITTER/EXTENDER CONNECT THE CATX CABLE Make sure the CATx cable has been installed in accordance with the “Preparation for Installation” instructions on page 5. Connect a CATx cable to one of the ports marked “CATx Output” on the VOPEX. Connect the other end of that cable to the “Cat x”... -
Page 13: Infrared Control
NTI VOPEX SERIES DVI SPLITTER/EXTENDER INFRARED CONTROL The VOPEX includes a port for connecting an infrared emitter that when used with an infrared receiver (connected at the Remote Unit end) will work in conjunction with the IR remote control used to operate the video/audio source. Connect the receiver to the “IR IN”... -
Page 14: Plug-In And Boot Up
NTI VOPEX SERIES DVI SPLITTER/EXTENDER PLUG-IN AND BOOT UP Plug the power cord from each video device and the power supply for each audio device into a power outlet. 2.5A Connect the 24VDC AC adapter power connector to the power port on the VOPEX (16-port models have a country-specific line cord). -
Page 15: Cascading
NTI VOPEX SERIES DVI SPLITTER/EXTENDER CASCADING The VOPEX-C6DVI-LA-4 can be cascaded for larger configurations and greater flexibility. By connecting the “DVI Video Out” port (models with Local Access feature only) on one VOPEX with the “DVI-Video In” port on another VOPEX (4, 8, or 16 port, doesn’t matter what size), your configuration can increase in size with a minimum of effort. -
Page 16: Technical Specifications
NTI VOPEX SERIES DVI SPLITTER/EXTENDER TECHNICAL SPECIFICATIONS Video Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p Video Connectors DVI Female Input Video Signal TMDS Video Color Format Up to 36 bit DVI Support DVI 1.0 DDC Support DDC2b HDCP Version... - Page 17 NTI VOPEX SERIES DVI SPLITTER/EXTENDER Distances and Resolutions for CAT5e,CAT6, CAT6a and CAT7 Cables Solid and Stranded Unshielded (UTP) and Shielded (STP) Twisted Pair Resolutions Cable Length ft. Max. Resolution 1080p / 8-bit 1920x1200/ 60Hz CAT5e 1080i / 12-bit Solid UTP 720p / 12-bit 720p/ 8-bit 1280x1024/60Hz...
-
Page 18: Interconnection Cable Wiring Method
WARNING: Outdoor or underground runs of CATx cable could be dangerous and will void the warranty. TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. -
Page 19: Warranty Information
NTI VOPEX SERIES DVI SPLITTER/EXTENDER Problem Cause Solution • • Monitor sometimes goes Electrical power system is very Make sure the interconnection cable is not near any blank for an instant or the noisy, particularly the ground. power lines. • •...
