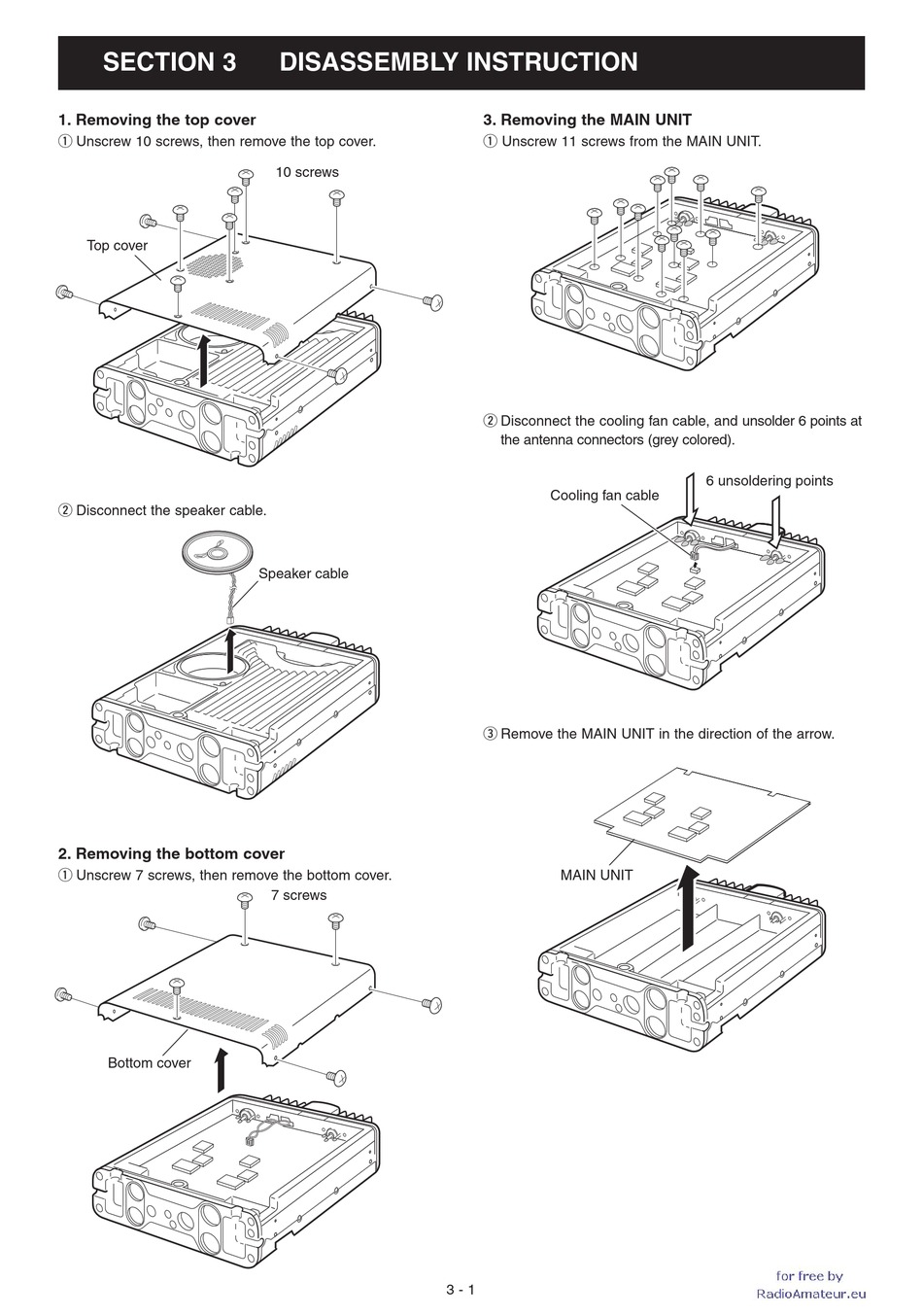

SECTION 3
1. Removing the top cover
q Unscrew 10 screws, then remove the top cover.
Top cover
w Disconnect the speaker cable.
2. Removing the bottom cover
q Unscrew 7 screws, then remove the bottom cover.
Bottom cover
DISASSEMBLY INSTRUCTION
10 screws
Speaker cable
7 screws
3. Removing the MAIN UNIT
q Unscrew 11 screws from the MAIN UNIT.
w Disconnect the cooling fan cable, and unsolder 6 points at
the antenna connectors (grey colored).
Cooling fan cable
e Remove the MAIN UNIT in the direction of the arrow.
MAIN UNIT
3 - 1
6 unsoldering points
