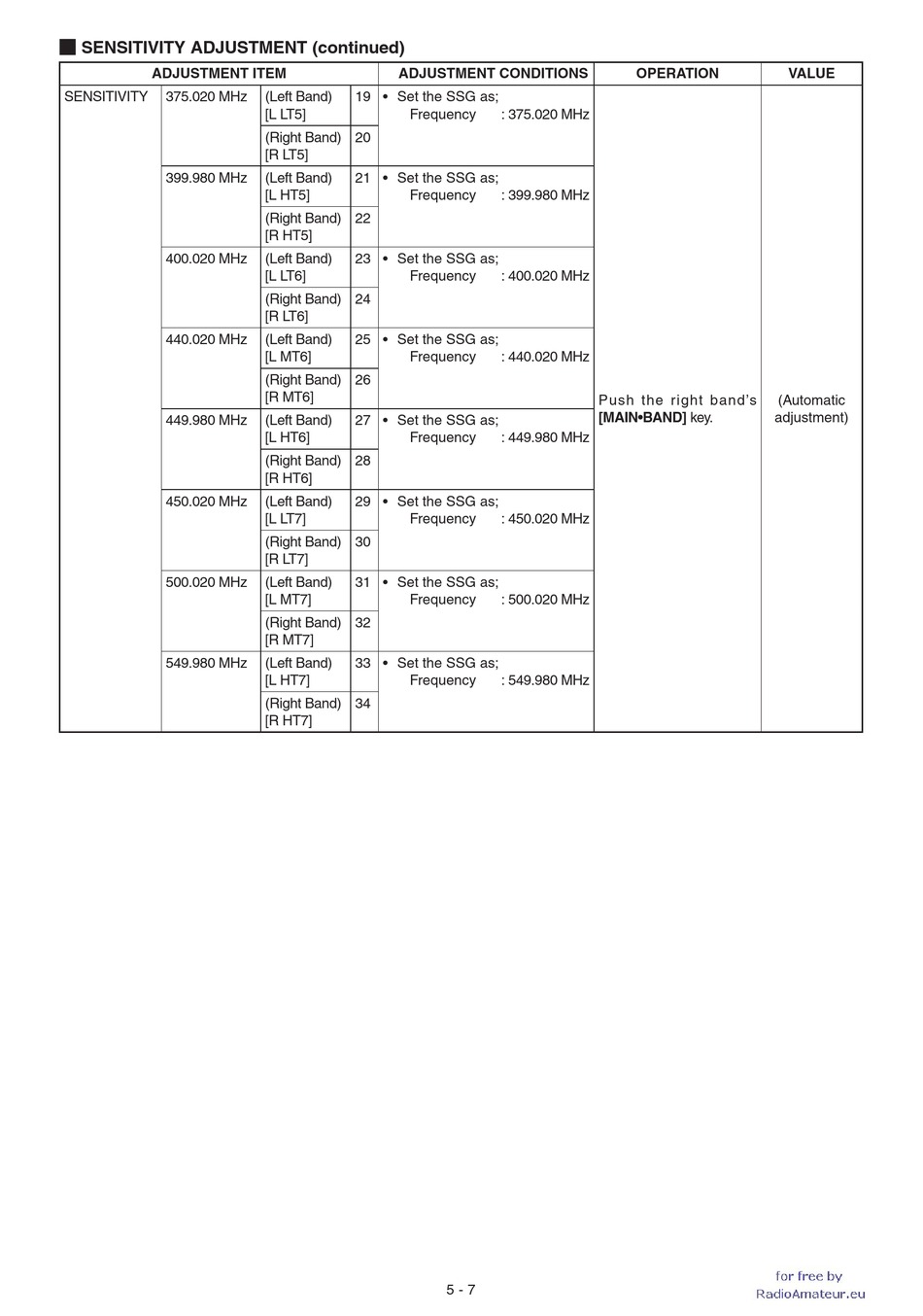

¤ SENSITIVITY ADJUSTMENT (continued)
ADJUSTMENT ITEM
SENSITIVITY 375.020 MHz
399.980 MHz
400.020 MHz
440.020 MHz
449.980 MHz
450.020 MHz
500.020 MHz
549.980 MHz
ADJUSTMENT CONDITIONS
(Left Band) 19 • Set the SSG as;
[L LT5] Frequency
(Right Band) 20
[R LT5]
(Left Band) 21 • Set the SSG as;
[L HT5] Frequency
(Right Band) 22
[R HT5]
(Left Band) 23 • Set the SSG as;
[L LT6] Frequency
(Right Band) 24
[R LT6]
(Left Band) 25 • Set the SSG as;
[L MT6] Frequency
(Right Band) 26
[R MT6]
(Left Band) 27 • Set the SSG as;
[L HT6] Frequency
(Right Band) 28
[R HT6]
(Left Band) 29 • Set the SSG as;
[L LT7] Frequency
(Right Band) 30
[R LT7]
(Left Band) 31 • Set the SSG as;
[L MT7] Frequency
(Right Band) 32
[R MT7]
(Left Band) 33 • Set the SSG as;
[L HT7] Frequency
(Right Band) 34
[R HT7]
: 375.020 MHz
: 399.980 MHz
: 400.020 MHz
: 440.020 MHz
Push the right band's
[MAIN•BAND] key.
: 449.980 MHz
: 450.020 MHz
: 500.020 MHz
: 549.980 MHz
5 - 7
OPERATION VALUE
(Automatic
adjustment)
