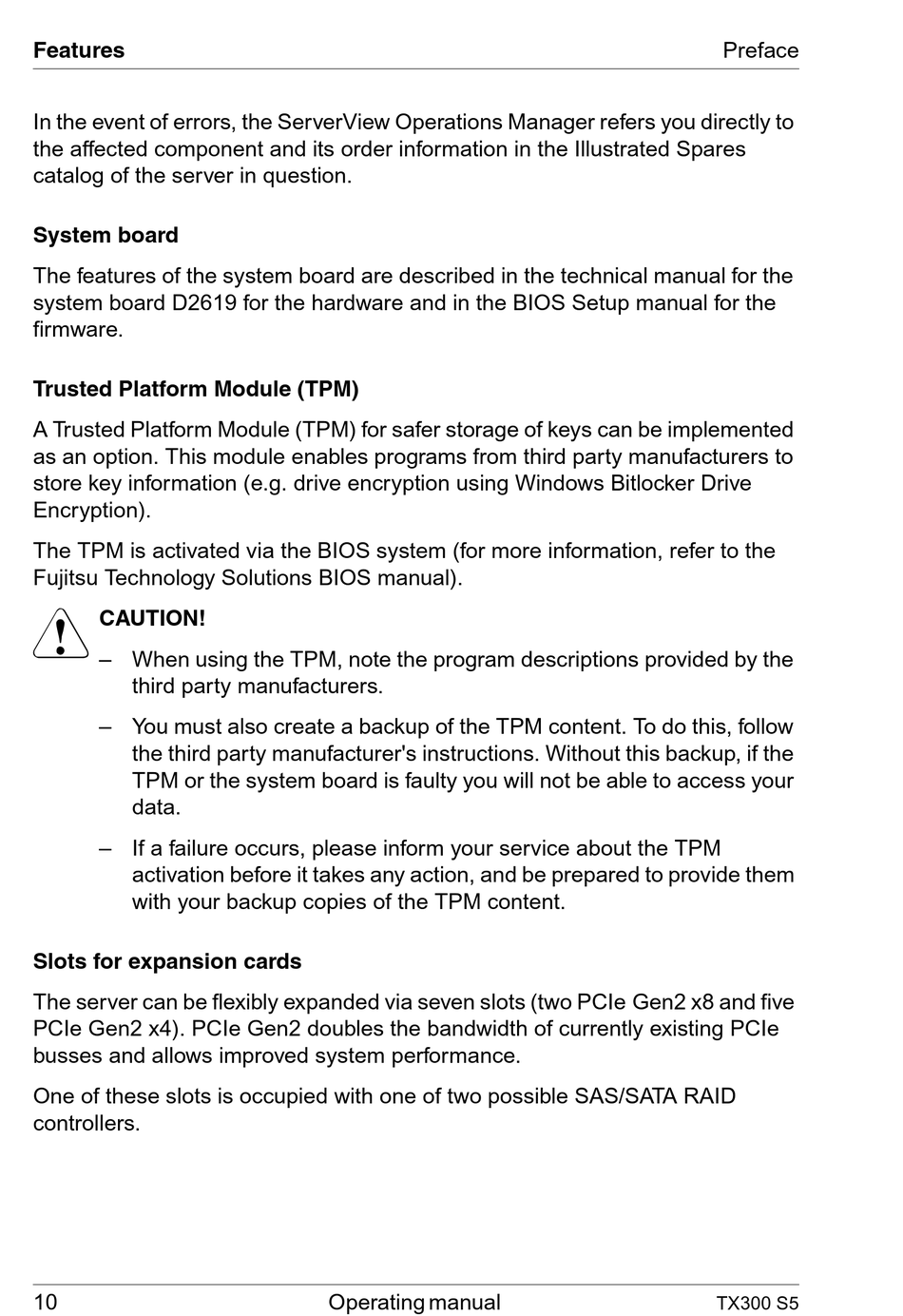

Fujitsu PRIMERGY TX300 S5 Operating Manual page 10

Features
In the event of errors, the ServerView Operations Manager refers you directly to
the affected component and its order information in the Illustrated Spares
catalog of the server in question.
System board
The features of the system board are described in the technical manual for the
system board D2619 for the hardware and in the BIOS Setup manual for the
firmware.
Trusted Platform Module (TPM)
A Trusted Platform Module (TPM) for safer storage of keys can be implemented
as an option. This module enables programs from third party manufacturers to
store key information (e.g. drive encryption using Windows Bitlocker Drive
Encryption).
The TPM is activated via the BIOS system (for more information, refer to the
Fujitsu Technology Solutions BIOS manual).
V
CAUTION!
– When using the TPM, note the program descriptions provided by the
third party manufacturers.
– You must also create a backup of the TPM content. To do this, follow
the third party manufacturer's instructions. Without this backup, if the
TPM or the system board is faulty you will not be able to access your
data.
– If a failure occurs, please inform your service about the TPM
activation before it takes any action, and be prepared to provide them
with your backup copies of the TPM content.
Slots for expansion cards
The server can be flexibly expanded via seven slots (two PCIe Gen2 x8 and five
PCIe Gen2 x4). PCIe Gen2 doubles the bandwidth of currently existing PCIe
busses and allows improved system performance.
One of these slots is occupied with one of two possible SAS/SATA RAID
controllers.
10 Operating manual
Preface
TX300 S5
