User Manual
• High Density 1/3" EX-VIEW CCD & Effio-E DSP
• 700TVL High Resolution
• Advanced IR Optimizer eliminates washout and dramatically
reduces over saturation of IR illuminated video without engaging
the Image Signal Processor chip
• 40 Infrared LEDs at 850nm enable viewing in total darkness up
to 150 feet
• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
• E-WDR by Adaptive Tone Reproduction
• 2.8-10mm Varifocal Auto Iris Lens with External Adjustments for
Focus and Zoom
• True Day/Night by ICR - Infrared Cut Removal
• 2DNR Noise Reduction
• Motion Detection, Privacy Masking & Highlight Masking
• Dual Glass Compartments to Eliminate Glare
• OSD (On Screen Display) menu and Camera ID
• Heavy Duty IP68 rated weather/vandal resistant aluminum
construction is 100% water and dust proof
• OSD (On Screen Display) and Secondary Video Output
• 24VAC/12VDC Dual Voltage

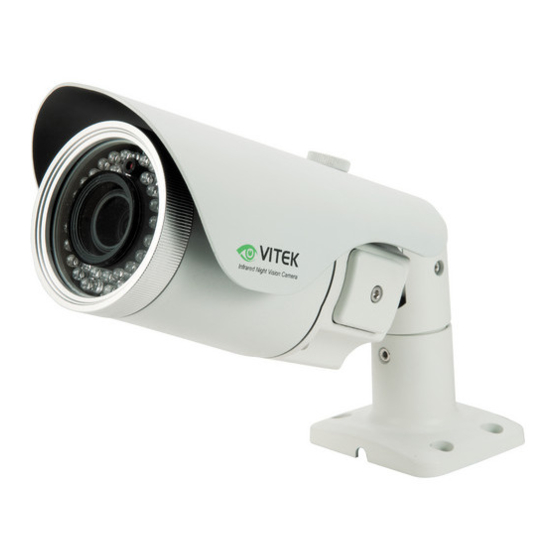

VTC-IRE40/2810
Long Range IR Bullet Camera
Advertisement
Related Manuals for Vitek VTC-IRE40
Summary of Contents for Vitek VTC-IRE40

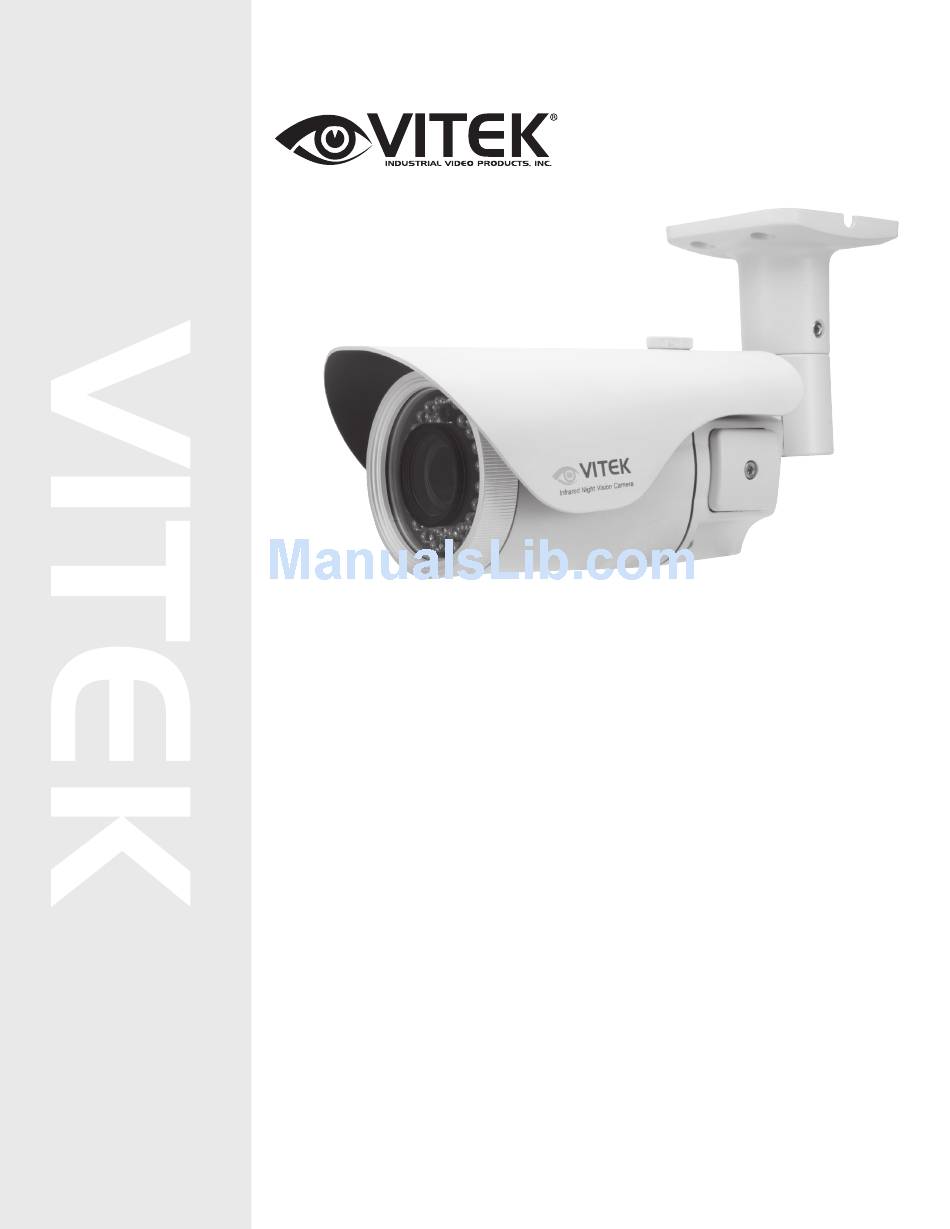

- Page 1 VTC-IRE40/2810 Long Range IR Bullet Camera • High Density 1/3” EX-VIEW CCD & Effio-E DSP • 700TVL High Resolution • Advanced IR Optimizer eliminates washout and dramatically reduces over saturation of IR illuminated video without engaging the Image Signal Processor chip •...
-
Page 2: Table Of Contents
Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Dimensional Drawings ……………………………………………............ -
Page 3: Safety Instructions And Notes
To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: General Descriptions
2. General Descriptions This camera is an ultra clear resolution camera that realizes over 700TVL resolution and a crisp color reproduction with Sony 960H EX-view CCD and Effio-E image signal processor. Effio-E digital imaging system: • Delivers crystal clear images with over 700TVL resolution that accurately captures every aspect of any scene •... -
Page 5: Supplied Items
3. Supplied Items • 1x VTC-IRE40/2810 Long range Weatherproof IR Bullet camera • 1x Installation and Operating Instructions • 1x Mounting template • 1x ⓖ Sunshield with ⓐ Attachment thumb screw for Sunshield panel • 1x ① 3mm Hex L-wrench •... -
Page 6: Installation Instructions
4.2 Rear side view ⓛ Focus adjustment ⓚ Zoom adjustment ⓛ ⓚ 5. Installation Instructions • Make sure the power is not applied before the installation. • Once the camera is installed, you may first connect the low voltage (AC24V or DC12V) wire to the camera power connector, then plug the AC adapter to the AC outlets to avoid an improper reset from power jitter and possible damage from voltage surge. - Page 7 5.2. Power Supply Connections The VTC-IRE40/2810 can operate on either 24AC or 12VDC, dual voltage power. It is required that the polarity-matched connection is made for 12VDC supply, otherwise IR LEDs, will not operate at night. Primary and secondary grounds are completely isolated to avoid possible ground-loop problems.
-
Page 8: Setup Menu
3. Inclination limit (horizontal image alignment) Inclination limited to +/-90° max. 6. SETUP Menu 6.1 In the menu The Setup menu can be accessed and controlled by the OSD control joy stick on the side of the camera. Five commands are available with the joy stick. SYMBOL descriptions for joystick operation;... - Page 9 6 .2 .1 MAI N me nu - 1 MAIN menu-1 Default Descriptions SHUTTER Sets the parameters related to the shutter mode and AGC for AUTO and AUTO /AGC MANUAL settings. See '6.3 SHUTTER/AGC menu' for details. Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens LENS AUTO only.
- Page 10 6.2.1 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE and Y LEVEL, C LEVEL. See '6.10 NR menu' for details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See '6.11 MOTION DET menu' for the parameter settings. Sets ON/OFF for enabling/disabling PRIVACY.
- Page 11 6.3.1 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Sets the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when in MAIN>LENS>AUTO menu, but it is fixed to SHUT if in the MAIN>LENS>MANUAL menu. AU TO IR IS - Light level is controlled by an auto iris lens only. For proper auto iris operation, the auto iris operation mode in MAIN>...
- Page 12 6.3.2 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000,1/4000 or 1/10000. (1/50) Manual shutter is only useful for scenes where luminance is unchanged. Sets AGC gain in dB.
- Page 13 6.5 DAY/NIGHT menu To enter DAY/NIGHT menu, press ● button at MAIN menu-1>DAY/NIGHT. IMPORTANT ACTIVITY!!! D AY->NIGH T and NIGH T->D AY operations mus t be examined and verified at the final installation. Block the lens for a few seconds for NIGHT mode then release and let it return to DAY mode. If camera stays at NIGHT mode for more than 10sec, slightly decrease NIGHT→DAY THRES and repeat the fore-mentioned steps.
- Page 14 6.6 PICT ADJUST menu To enter PICT ADJUST menu, press ● button at MAIN menu-1>PICT ADJUST. PICT ADJUST Default Descriptions MIRROR Picture will be flipped horizontally if it turns ON. Increases or decreases the brightness of the picture. This is different from that of DC iris lens and simply increases or decreases BRIGHTNESS the digital gain of the video.
- Page 15 6.7 W HITE BAL menu White balance can be set to ATW, PUSH, USER1, USER2, ANTI CR, MANUAL or PUSH LOCK. ATW (Auto Tracking White balance) and PUSH (Full pull-in) is continuously monitoring/analyzing the color temperature of the incoming light and correcting the white balance. ATW limits the color temperature range to about 2,500˚K~8,500˚K to reduce the excessive compensation for a large object that has a single color.
- Page 16 MANUAL WB Default Descriptions LEVEL Adjusts the manual white balance by LEVEL, (B-GAIN). 6.8 ATR (Adaptive Tone Reproduction) Menu The ATR feature improves the dynamic range and the visibility of the image by providing optimal gradation compensation of the image in one field. This is achieved by two ways of image processing, luminance compression and contrast enhancement, so that the tone can be enhanced in highlight and dark areas.
- Page 17 6.9 BACKLIGHT menu To enter BACKLIGHT menu, press ● button in MAIN menu-1>BACKLIGHT. The Backlight Compensation – BLC – function is used to brighten an image in the foreground with a highly lit area behind it such as sunlight, limiting the affect of silhouetting. BLC ON BLC OFF The Highlight Compensation –...
- Page 18 Default Descriptions NR MODE Selects OFF, Y, C or Y/C, which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal. Y LEVEL A higher value performs a stronger noise reduction, which makes the image less sharp. Indicates the noise reduction strength for the chrominance signal.
- Page 19 6.12 PRIVACY menu Up to 8 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET>MONITOR AREA is ON. The privacy areas are masked with the color selected by PRIVACY>COLOR. To enter PRIVACY menu, press ●...
- Page 20 6.14 CAMERA ID menu Up to 40 characters can be used/input for camera ID. To enter CAMERA ID menu, press ● button in MAIN menu-2>CAMERA ID. CAMERA ID input line COMMAND LINE Use ▲,▼,◀,▶ buttons to move a block cursor over the character table and press ● button to input the selected character.
-
Page 21: Specifications
. Specifications VTC-IRE40/2810 Image Device 1/3” High Density Sony EX-VIEW CCD & Effio-E DSP (960H) Resolution 700 TV lines Minimum illumination 0.003Lux / F1.2 (0 Lux with IR LEDs ON) Effective Pixels 976(H) x 494(V) S/N Ratio More than 52dB with AGC OFF at 50IRE Electronic Iris 1/60 to 1/100,000 sec. -
Page 22: Dimensional Drawings
8. Dimensional Drawings 2.95” (75mm) 1.4” (35mm) 3.5” (90mm) 2.75” (70mm) 12.48” (317mm) 10.7” (270.5mm) 3.56” (90.5mm) 3.4” (86mm) 4.35” (110.5mm) - Page 23 THE MIGHTY DOME THE ULTRA VERSATILE DOME CAMERA SERIES The Mighty Series Dome cameras include models produced with the new Pixim-Powered Seawolf Wide Dynamic Range DSP and the Sony Effio Day/Night DSP. The Highest resolution Analog camera line up to date offers 700 TV Lines of Resolution, up the coax OSD Control and low light capability up to 0.00008 lux.
- Page 24 • MAC Client Software (Included) HDD Mirror redundancy place this DVR at the pinnacle of • Control locally via Front Panel, USB Mouse or with the Included IR the VITEK EH Lineup. Remote control • PTZ Control over RS-485 VT-EHP8...
- Page 25 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
- Page 26 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70 VERSION 2 05/2013...
