• 700TVL High Resolution
• High Density 1/3" Sony EXVIEW CCD & Effio-E DSP
• 40 Infrared LEDs at 840nm enable viewing in total darkness up
to 150 feet
• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
• E-WDR by Adaptive Tone Reproduction
• 3.5-16mm Varifocal Auto Iris Lens with External Adjustments for
Focus and Zoom
• 2DNR Noise Reduction
• True Day/Night by ICR - Infrared Cut Removal
• Motion Detection
• Weatherproof IP68 NEMA Rating
• Privacy & Highlight Masking
• OSD (On Screen Display) and Secondary Video Output
• 24VAC/12VDC Dual Voltage

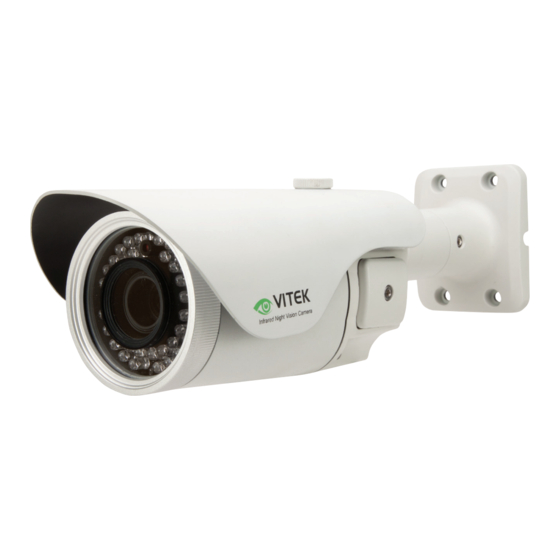

VTC-IRE40/3516
Long Range IR Bullet Camera
CYAN
MAGENTA
YELLOW
BLACK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-IRE40/3516
Summary of Contents for Vitek VTC-IRE40/3516

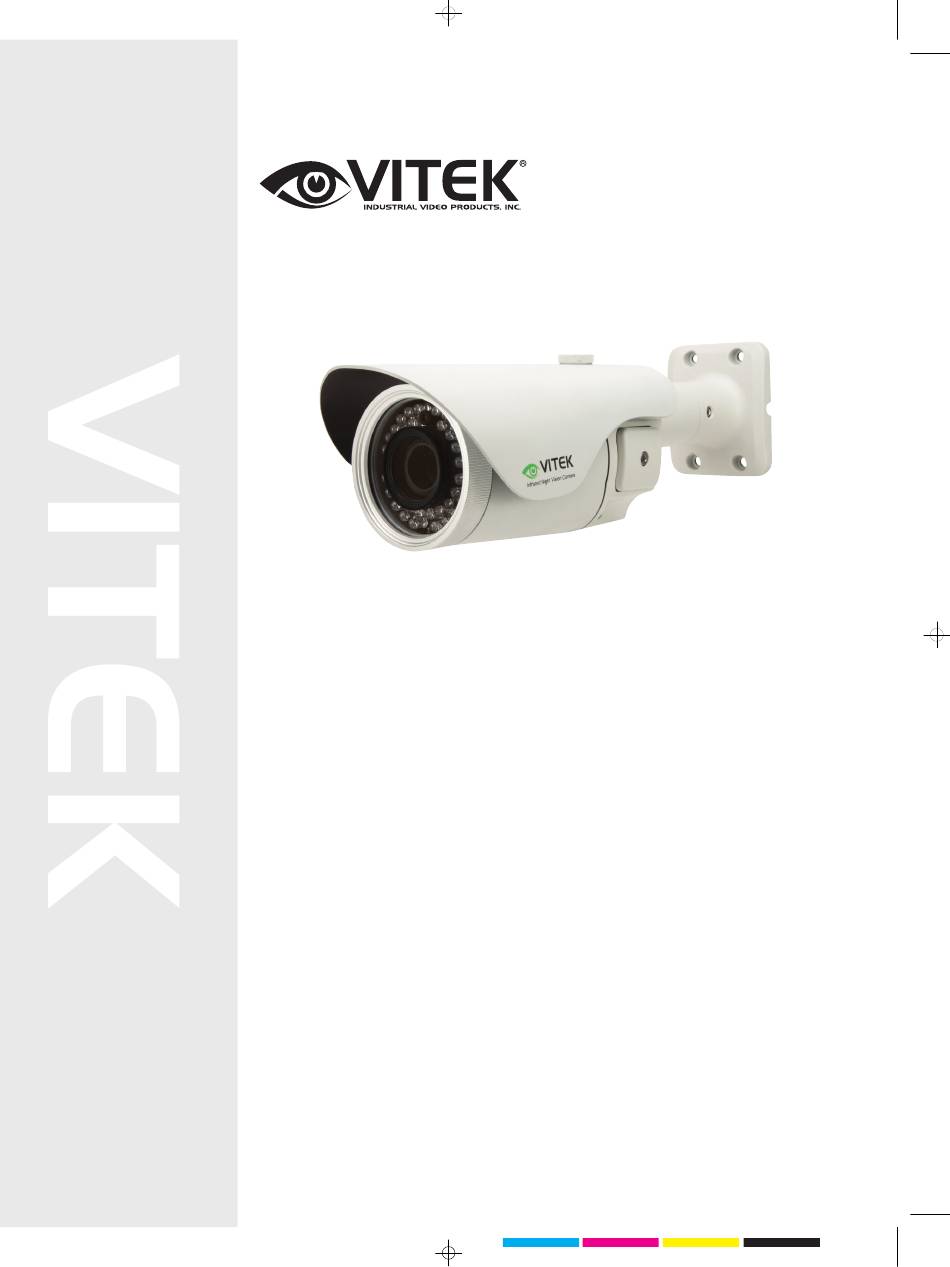

- Page 1 VTC-IRE40/3516 Long Range IR Bullet Camera • 700TVL High Resolution • High Density 1/3” Sony EXVIEW CCD & Effio-E DSP • 40 Infrared LEDs at 840nm enable viewing in total darkness up to 150 feet • 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On •...
-
Page 2: Table Of Contents
Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Dimensional Drawings ……………………………………………............ -
Page 3: Safety Instructions And Notes
To prevent fire or shock hazard, do not expose the unit to rain or moisture. WARNING This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: General Descriptions
• Use only a mild detergent to clean the housing. • Keep the window surface clean of dirt or dust, which may reflect infrared light into the lens at night. • The camera should never be operated beyond the technical specifications. This can lead to destruction. 2. -
Page 5: Supplied Items
3. Supplied Items • 1x VTC-IRE40/3516 Long range Weatherproof IR Bullet camera • 1x Installation and Operating Instructions • 1x Mounting template • 1x ⓖ Sunshield with ⓐ Attachment thumb screw for Sunshield panel • 1x ①3mm Hex L-wrench • 4x ②anchors •... -
Page 6: Installation Instructions
4.2 Rear side view ⓛ Focus adjustment ⓚ Zoom adjustment ⓛ ⓚ 5. Installation Instructions • Make sure the power is not applied before the installation. • Once the camera is installed, you may first connect the low voltage (AC24V or DC12V) wire to the camera power connector, then plug the AC adapter to the AC outlets to avoid an improper reset from power jitter and possible damage from voltage surge. - Page 7 5.2. Power Supply Connections The VTC-IRE40/3516 can operate on either 24AC or 12VDC, dual voltage power. It is required that the polarity-matched connection is made for 12VDC supply, otherwise IR LEDs, will not operate at night. Primary and secondary grounds are completely isolated to avoid possible ground-loop problems.
-
Page 8: Setup Menu
3. Inclination limit (horizontal image alignment) Inclination limited to +/-90° max. 6. SETUP Menu 6.1 In the menu The Setup menu can be accessed and controlled by the OSD control joy stick on the side of the camera. Five commands are available with the joy stick. SYMBOL descriptions for joystick operation;... - Page 9 6.2.1 MAIN menu-1 MAIN menu-1 Default Descriptions SHUTTER Sets the parameters related to the shutter mode and AGC for AUTO and AUTO /AGC MANUAL settings. See '6.3 SHUTTER/AGC menu' for details. Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens LENS AUTO only.
- Page 10 6.2.1 MAIN menu-2 MAIN menu-2 Default Descriptions Sets the noise reduction parameters for NR MODE and Y LEVEL, C LEVEL. See '6.10 NR menu' for details. Sets ON/OFF for enabling/disabling MOTION DET. MOTION DET See '6.11 MOTION DET menu' for the parameter settings. Sets ON/OFF for enabling/disabling PRIVACY.
- Page 11 6.3.1 SHUTTER/AGC>AUTO SETUP menu AUTO SETUP Default Descriptions Sets the shutter mode from AUTO IRIS or SHUT+AUTO IRIS when in MAIN>LENS>AUTO menu, but it is fixed to SHUT if in the MAIN>LENS>MANUAL menu. AUTO IRIS - Light level is controlled by an auto iris lens only. For proper auto iris operation, the auto iris operation mode in MAIN>...
- Page 12 6.3.2 SHUTTER/AGC>MANUAL SETUP menu MANUAL Default Descriptions SETUP SHUT MODE Compensates the video level by the manual shutter control and AGC. +AGC Sets the manual shutter to 1/60(1/50), 1/100(1/120), 1/250,1/500,1/1000, 1/60 SHUTTER 1/2000,1/4000 or 1/10000. (1/50) Manual shutter is only useful for scenes where luminance is unchanged. Sets AGC gain in dB.
- Page 13 6.5 DAY/NIGHT menu To enter DAY/NIGHT menu, press ● button at MAIN menu-1>DAY/NIGHT. IMPORTANT ACTIVITY!!! DAY->NIGHT and NIGHT->DAY operations must be examined and verified at the final installation. Block the lens for a few seconds for NIGHT mode then release and let it return to DAY mode. If camera stays at NIGHT mode for more than 10sec, slightly decrease NIGHT→DAY THRES and repeat the fore-mentioned steps.
- Page 14 NIGHT→DAY is a threshold level that determines the switch from NIGHT to DAY. A lower (higher) value makes the camera switch from Night to Day at lower (higher) illumination. If it stays in Night (B/W) mode at day time, decrease NIGHT→DAY threshold value until it switches to Day.
- Page 15 6.7 WHITE BAL menu White balance can be set to ATW, PUSH, USER1, USER2, ANTI CR, MANUAL or PUSH LOCK. ATW (Auto Tracking White balance) and PUSH (Full pull-in) is continuously monitoring/analyzing the color temperature of the incoming light and correcting the white balance. ATW limits the color temperature range to about 2,500˚K~8,500˚K to reduce the excessive compensation for a large object that has a single color.
- Page 16 MANUAL WB Default Descriptions LEVEL Adjusts the manual white balance by LEVEL, (B-GAIN). 6.8 ATR (Adaptive Tone Reproduction) Menu The ATR feature improves the dynamic range and the visibility of the image by providing optimal gradation compensation of the image in one field. This is achieved by two ways of image processing, luminance compression and contrast enhancement, so that the tone can be enhanced in highlight and dark areas.
- Page 17 6.9 BACKLIGHT menu To enter BACKLIGHT menu, press ● button in MAIN menu-1>BACKLIGHT. The Backlight Compensation – BLC – function is used to brighten an image in the foreground with a highly lit area behind it such as sunlight, limiting the affect of silhouetting. BLC ON BLC OFF The Highlight Compensation –...
- Page 18 Default Descriptions NR MODE Selects OFF, Y, C or Y/C, which noise reduction is performed with. Indicates the noise reduction strength for the luminance signal. Y LEVEL A higher value performs a stronger noise reduction, which makes the image less sharp. Indicates the noise reduction strength for the chrominance signal.
- Page 19 6.12 PRIVACY menu Up to 8 privacy areas are available and each area is programmable in size and location. The number of privacy areas is limited to four when MOTION DET>MONITOR AREA is ON. The privacy areas are masked with the color selected by PRIVACY>COLOR. To enter PRIVACY menu, press ●...
- Page 20 6.14 CAMERA ID menu Up to 40 characters can be used/input for camera ID. To enter CAMERA ID menu, press ● button in MAIN menu-2>CAMERA ID. CAMERA ID input line COMMAND LINE Use ▲,▼,◀,▶ buttons to move a block cursor over the character table and press ● button to input the selected character.
-
Page 21: Specifications
. Specifications VTC-IRE40/3516 Model Name High Density 1/3” Sony EX-view CCD (960H) Image Device 976(H) x 494(V) 976(H) x 582(V) Effective Pixels TV System NTSC, 2:1interlace PAL, 2:1interlace Scan Freq. 59.94Hz(V), 15.734Khz(H) 50Hz(V), 15.625Khz(H) Synchronization Internal/Line lock (Default: Internal) H. Resolution Over 700TVL 0.003Lux... -
Page 22: Dimensional Drawings
8. Dimensional Drawings 2.95” 75mm 1.4” 35mm 3.5” 90mm 2.75” 70mm 12.48” 317mm 10.7” 270.5mm 3.56” 90.5mm 3.4” 86mm 4.35” 110.5mm... - Page 24 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller.
- Page 25 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
