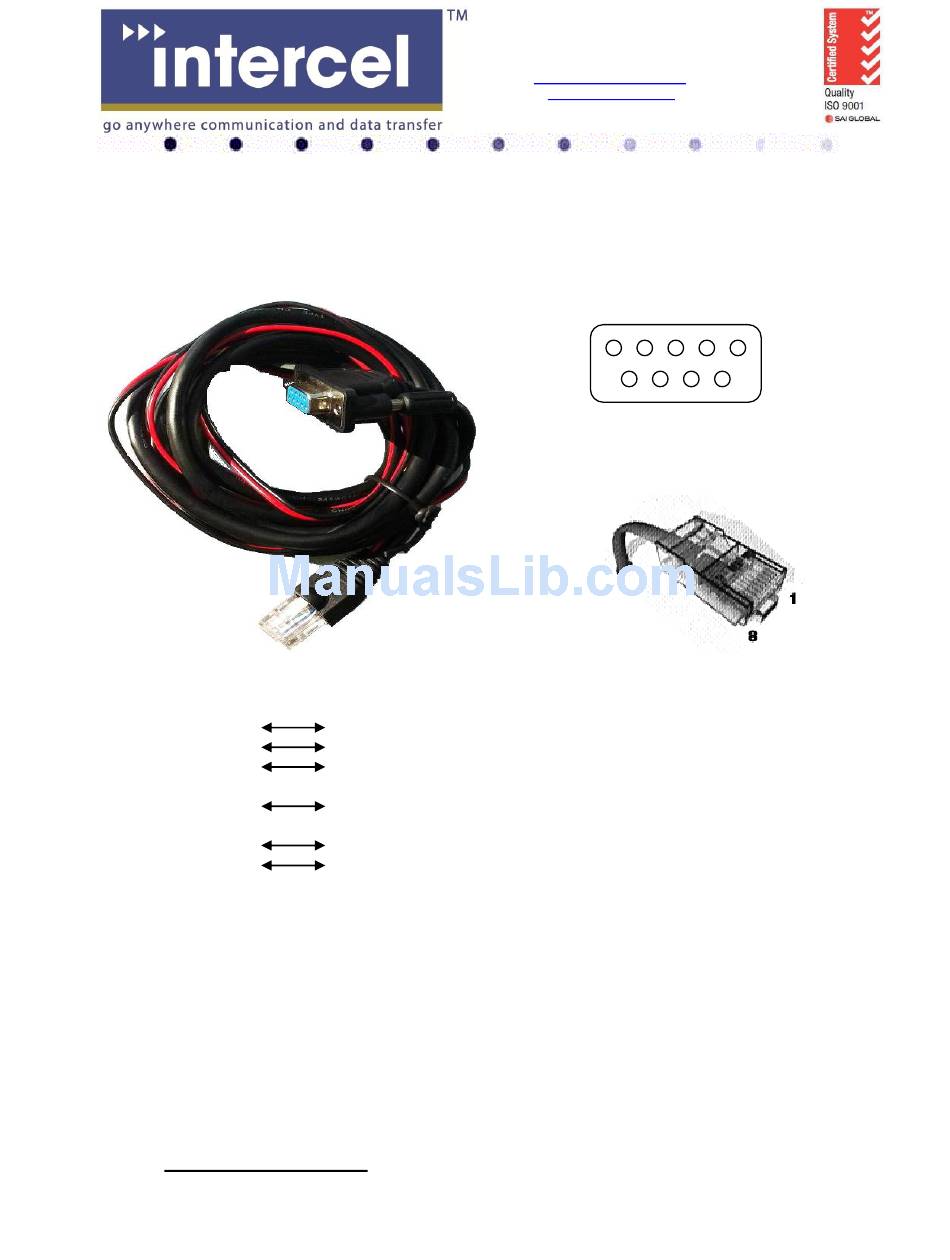

g. The data cable
The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire
input power.
DB9 Signals
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
8 CTS
7 RTS
9 RI Not used

7. Electrical characteristics

Intercel Pty. Ltd.
33 Glenvale Crescent
Mulgrave VIC. Australia 3170
Email :
Internet :
Ph : 61 3 9239 2000 Fax : 61 3 9561 2614
RJ45 Description
2 Data Carrier Detect
5 Serial Data out of the SAM3G+
6 Serial Data into the SAM3G+
3 Not used
4 Common Ground
7 Clear to Send
8 Ready to Send
1 RED wire : Input voltage from 5Vdc to 32Vdc
4 BLACK wire : Power Ground
A.C.N. 007 077 161
intercel@intercel.com.au
www.intercel.com.au
5 4 3 2
9 8 7
1
6
11
