Smart SAM2S User Guide V1.4

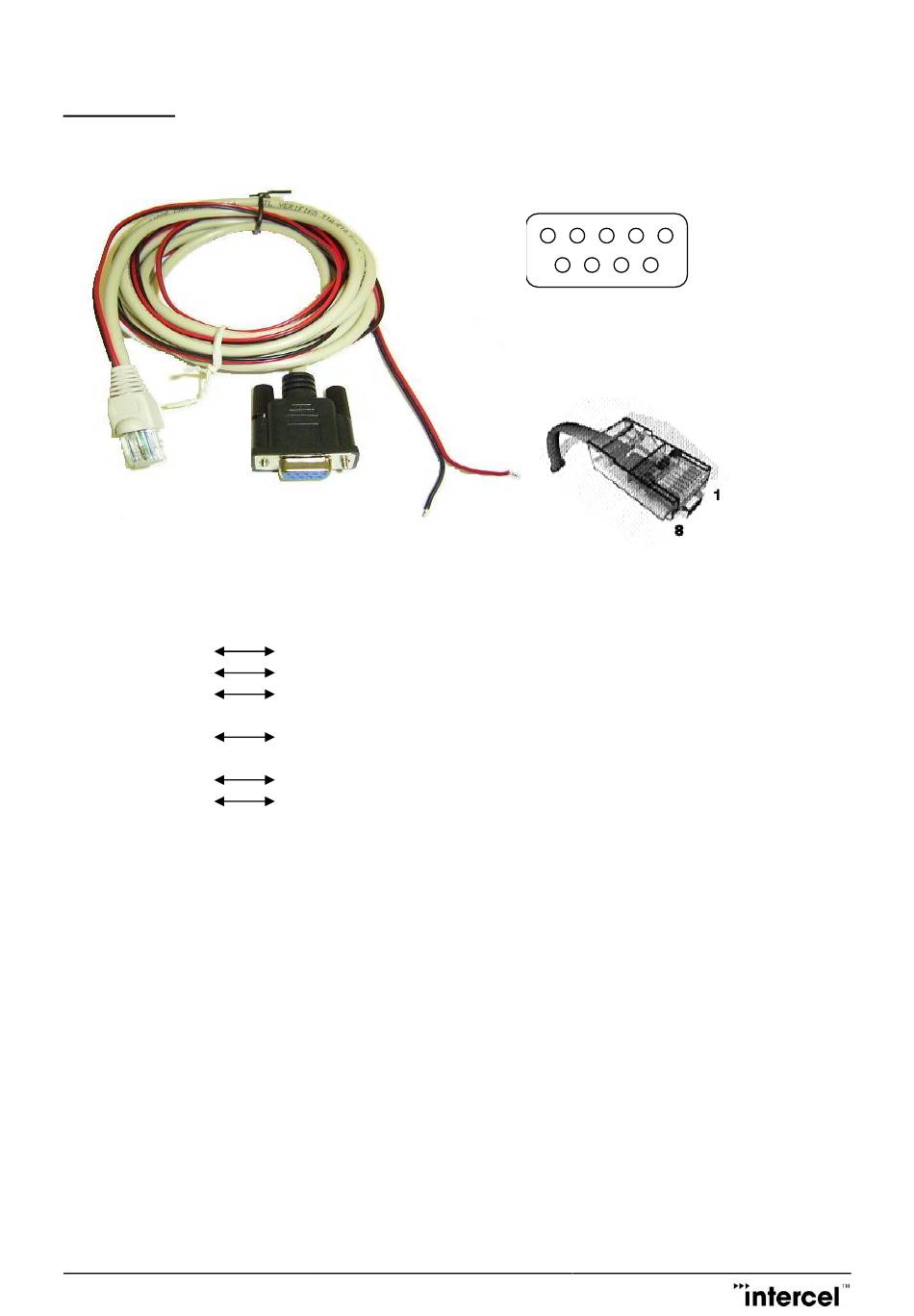

6.6 Data Cable

The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power.
DB9 Signals
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 CTS
8 RTS
9 RI Not used
10
RJ45 Description
2 Data Carrier Detect
5 Serial Data out of the Smart SAM2S
6 Serial Data into the Smart SAM2S
3 Not Used
4 Common Ground
8 Clear to Send
7 Request to Send
1 RED wire: Input voltage from 5Vdc to 32Vdc
4 BLACK wire: Power Ground
Ver1.4
5 4 3 2 1
9 8 7 6
