6. Functionality
a. General
The SAM3G+ modem consists of an RJ45 connector for serial port and input power, a miniB USB
connector, an SMB Jack antenna connector and a SIM holder. The LED indicator, located on top,
indicates the SAM operating status.
SMB connector
3G ENGINE
SIM Interface
LED Indicator
Switching
Power
Supply
uController
RS232
Serial Data
Interface

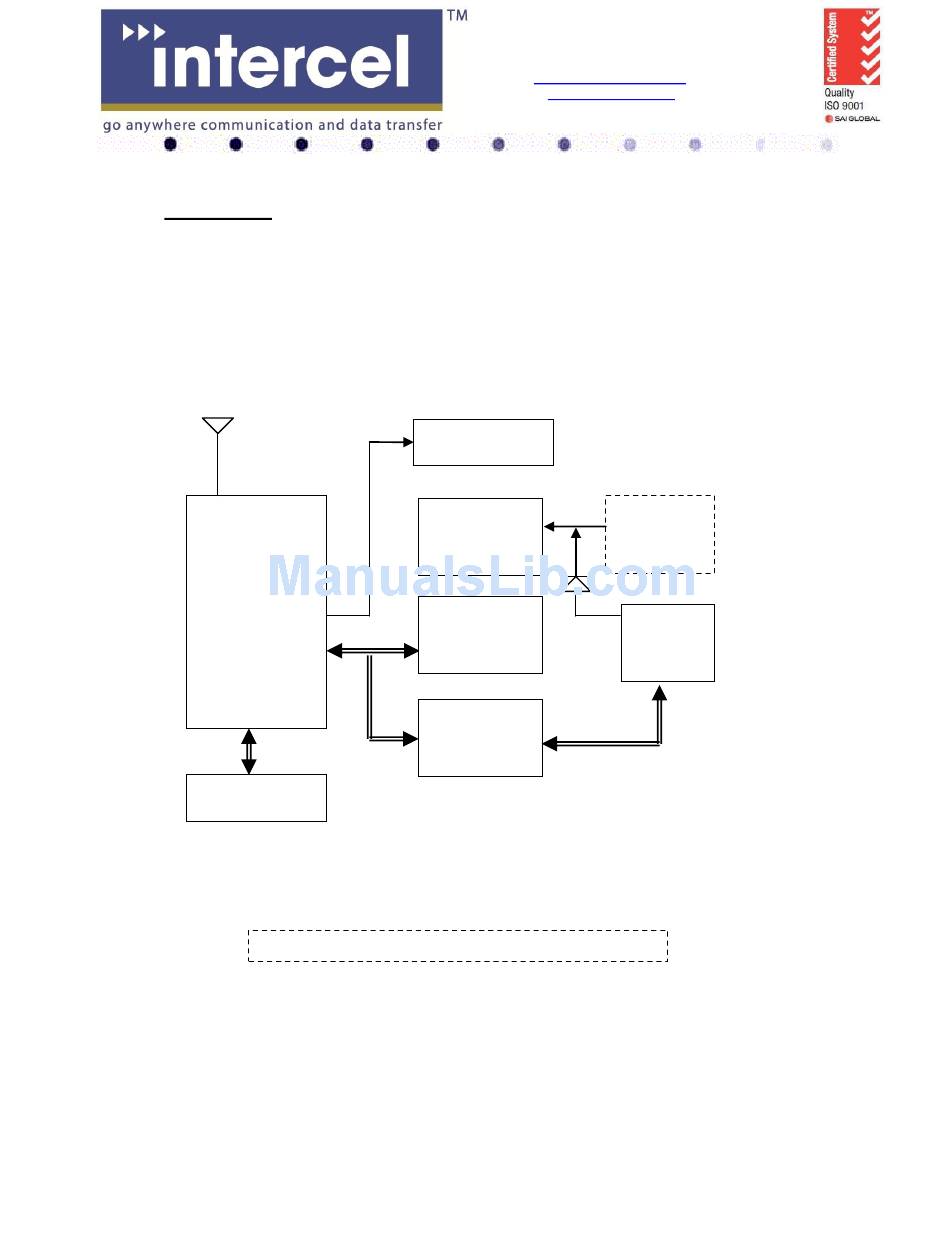

The SAM3G+ Functional Block Diagram
Intercel Pty. Ltd.
A.C.N. 007 077 161
33 Glenvale Crescent
Mulgrave VIC. Australia 3170
Email :
intercel@intercel.com.au
Internet :
www.intercel.com.au
Ph : 61 3 9239 2000 Fax : 61 3 9561 2614
MiniB
USB
Connector
RJ45
Socket
8
