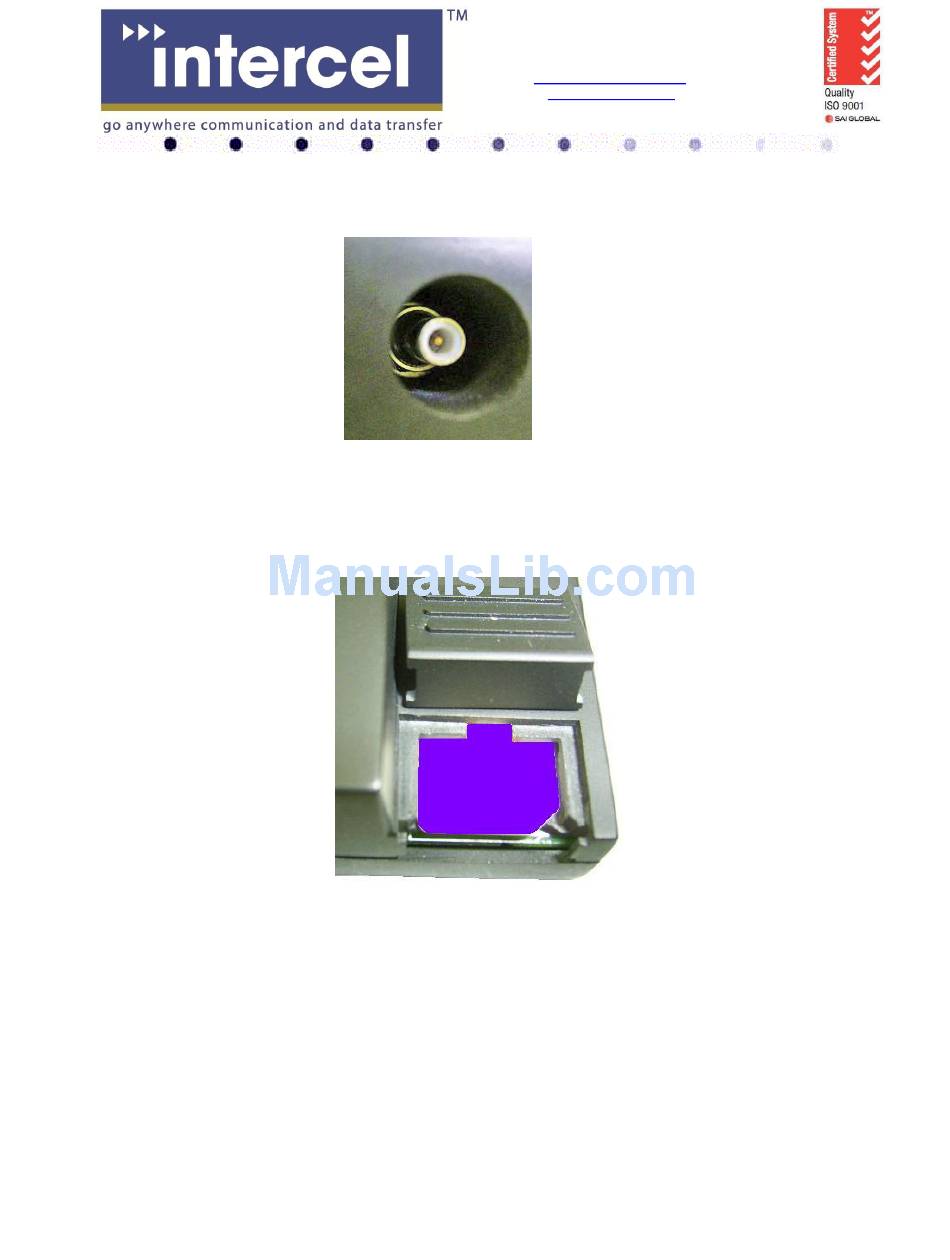

d. The SMB-Jack 50Ω antenna connector
e. The USIM holder
To insert the SIM card, remove the door by sliding it back toward the end. Make sure
the SIM card faces the right way as indicated on the box. Voltage levels over this USIM interface
complies with 3GPP standards
f.

The LED status

The LED indication has the following status :
- LED on steady: The SAM3G+ is searching for network.
- LED flashes very slowly: No SIM card inserted.
- LED flashes regularly: The SAM3G+ is on and connected to the network, but not
transmitting or receiving data.
- LED flashes at fast rate : The SAM3G+ is in use (transmit/receive data)
- LED is off : No power
Intercel Pty. Ltd. A.C.N. 007 077 161
33 Glenvale Crescent
Mulgrave VIC. Australia 3170
Email : intercel@intercel.com.au
Internet : www.intercel.com.au
Ph : 61 3 9239 2000 Fax : 61 3 9561 2614
10
