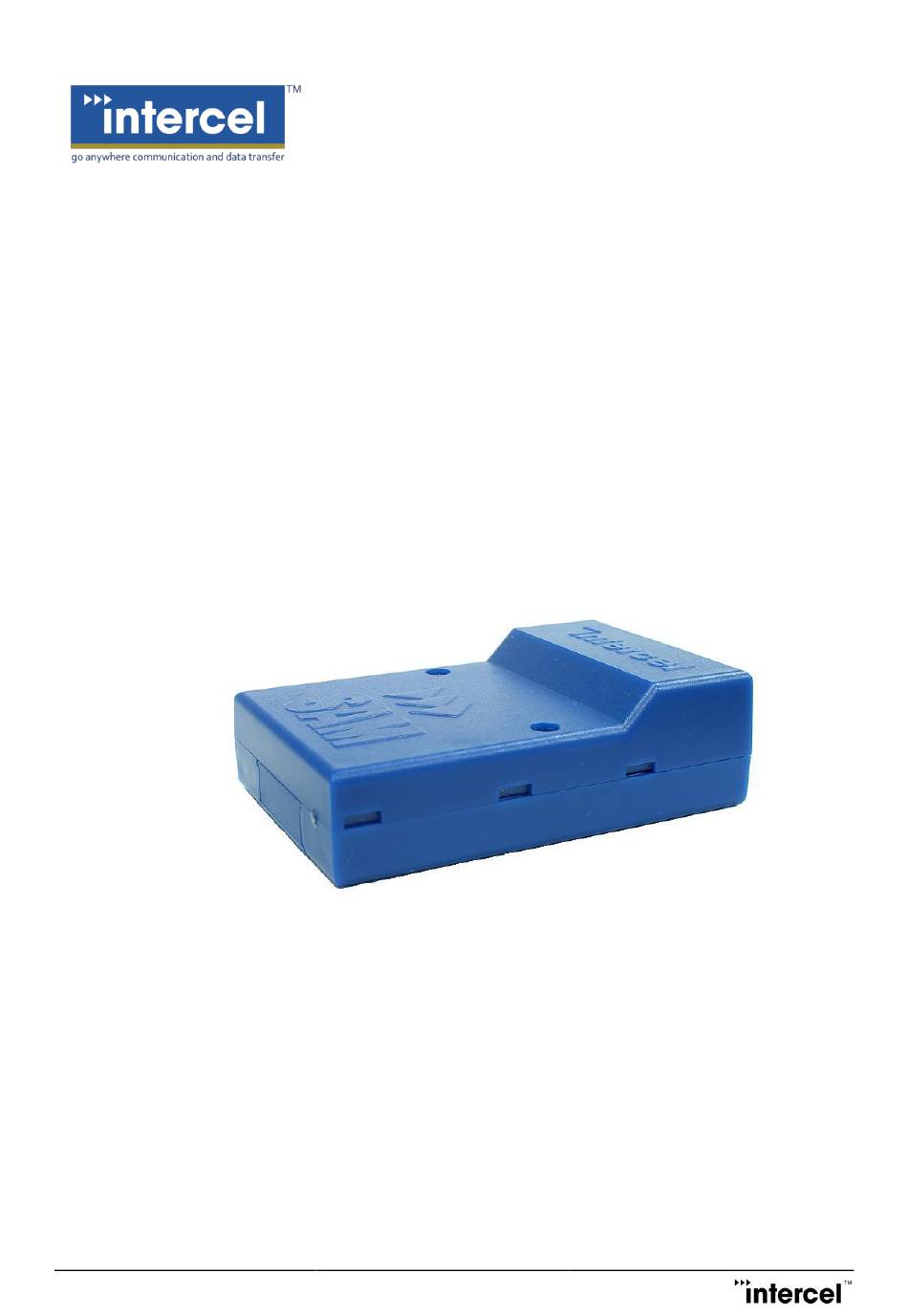

- Page 1 Smart SAM4Q User Guide V1.1 Smart SAM4Q User Guide Ver1.1...
- Page 2 Smart SAM4Q User Guide V1.1 Revision History Version Modified By Date Description 03/04/2017 Initial version 27/04/2017 Update power supply statement Ver1.1...
-
Page 3: Table Of Contents
Power Consumption ..........................12 Receive Sensitivity ..........................12 Conducted Transmit Power ........................12 Main Antenna Specifications .........................13 Environmental Characteristics .......................13 The Smart SAM4Q TCP/IP Operation ......................14 Communication Sockets .........................14 TCP/IP AT$ Commands ........................15 CSD Call Escape Sequence ........................25 Firmware Upgrade ............................26 The LTE Module Firmware ........................26 The Modem’s Controller Software ......................26... -
Page 4: Introduction
10Mbps download. The Smart SAM4Q is designed for both mobile and fixed M2M applications. It has an RJ45 socket for input voltage and the serial RS232 signals, an FME-male for antenna connection, a SIM holder and an LED indicator. -
Page 5: Safety Precautions
Smart SAM4Q User Guide V1.1 2 Safety Precautions The following safety precautions must be observed whenever the Smart SAM4Q modem is in operation or in service. Failure to comply with these precautions violates the safety standards of the design, manufacture and... -
Page 6: Radio Frequency Exposure - Sar
This is because the transceiver is designed to use minimum power to connect to the network. The Smart SAM4Q modem is approved to use in applications where the antenna is placed more than 21cm from the body. -
Page 7: Weee Directive 2002/96/Ec, Disposal Of Old Electronic Equipment
By ensuring the correct disposal of this equipment, it will help the environment and human’s health. Recycling will help to conserve natural resources. The Smart SAM4Q product is RoHS compliant Ver1.1... -
Page 8: Packaging
The data cable is 2m long The label diameter is 50mm x 33mm A suitable Power supply is available on request. Smart SAM4Q must be powered using a limited power source of 12V/1A power supply according to the clause 2.5 of AS/NZS 60950.1. -
Page 9: Production Label
Modem Hardware IMEI 357164045098731 : Intercel Pty Ltd Made by : ASSSAM4QAMR Part number The production part number is located at the back of the Smart SAM4Q, which includes: Product Model Software Version Hardware Version IMEI Number Manufacturer Part Number... -
Page 10: Functionality
6 Functionality General The Smart SAM4Q modem consists of an RJ45 socket for serial port and input power, an FME male antenna connector and a SIM holder. The LED indicator, located next to the SIM holder, indicates the Smart SAM4Q operating status. -
Page 11: Rj45 Socket
Description Input voltage 5Vdc - 32Vdc Data Carrier Detect DTR/RI Data terminal Ready/Ring Indicator Common Ground Serial Data out of the Smart SAM4Q Serial Data into the Smart SAM3 Clear to Send Ready to Send Mini USB Connector Signal Vusb FME-Male 50Ω... - Page 12 Smart SAM4Q User Guide V1.1 -Initialize stage: Green Led 200ms on 200ms off -IP connected: Green Led 100ms on 3000ms off -Data transfer mode: Green 100ms on 500ms off -IP connect failed waiting to reset: Green LED 100ms on 100ms off...
-
Page 13: Data Cable
The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power. Signals RJ45 Description Data Carrier Detect Serial Data out of the Smart SAM4Q Serial Data into the Smart SAM4Q Not used Common Ground Ready to Send... -
Page 14: Electrical Characteristics
Smart SAM4Q User Guide V1.1 7 Electrical Characteristics Power Consumption Idle mode 30mA @12V Average in-use mode 140mA@12V Full Tx power 230mA@12V Peak current requirement 0.3A@12V Receive Sensitivity BAND Primary (without Diversity) Diversity 3g B1 -110.0 dBm 3G B5 -100.5 dBm LTE-FDD B1 (10M) -98.5 dBm... -
Page 15: Main Antenna Specifications
Smart SAM4Q User Guide V1.1 Main Antenna Specifications Max cable loss 0.5dBm 50Ω Impedance VSWR recommended VSWR absolute maximum 10:1 Environmental Characteristics Operating temperature -30°C to +85°C Storage temperature -40°C to +95°C Humidity 90% relative humidity (non-condensing) Ver1.1... -
Page 16: The Smart Sam4Q Tcp/Ip Operation
Smart SAM4Q User Guide V1.1 8 The Smart SAM4Q TCP/IP Operation The Smart SAM4Q has an MCU (Microcontroller) to control the LTE module EC21. The Smart SAM4Q can be operating in three different modes, defined by the parameter SAMMODE: -SAMMODE=0. The modem is in standard mode. When powered on, the MCU turns on the LTE module, checks its baud rate, turns on the LED and releases control of the LTE module to the connecting device. -
Page 17: Tcp/Ip At$ Commands
Smart SAM4Q User Guide V1.1 TCP/IP AT$ Commands Communications parameters are stored in Flash using AT$PARAMETERS. Parameters are defined as: APN=Access Point Name USERNAME=Username that may be required with GPRS login PASSWORD=Password that may be required with GPRS login LTCPPORT=Local TCP listening port... - Page 18 Smart SAM4Q User Guide V1.1 SESSIONIDLETIME=Set the time interval (in seconds) the login session could stay idle before it is closed PPPAUTH=PAP or CHAP for PPP authentication, PAP is the default value. All parameters can be programmed all at once.
- Page 19 Smart SAM4Q User Guide V1.1 AT$PARAMETERS? $PARAMETERS: APN: telstra.extranet USERNAME: intercel PASSWORD: mach LTCPPORT: 10000 RTCPIP: 203.45.1.236 RTCPPORT: 10000 TCPMODE: 0 LUDPPORT: 20000 RUDPIP: 203.45.1.236 RUDPPORT: 20000 BAUDRATE: 115200 DATALEN: 8 PARITY: NONE POLLPERIOD: 60 RESETPERIOD: 1440 SBREAKTIME: 100 MBREAKTIME: 5...
- Page 20 DDNSPASSWORD=DDNS account password DDNSSERVER=DDNS server DDNSSTRING: Only need to change from default in some circumstances with Intercel support DDNSAUTH: Only need to change from default in some circumstances with Intercel support DDNSAGENT: Only need to change from default in some circumstances with Intercel support PDNSIP=Primary DNS, leave blank if not using your own DNS server, not a requirement for DDNS.
- Page 21 Smart SAM4Q User Guide V1.1 DDNSHOST: intercelau.ddns.net DDNSUSERNAME: van.phamus@yahoo.com DDNSPASSWORD: 123456789 DDNSSERVER: dynupdate.no-ip.com DDNSSTRING: GET /nic/update?hostname=%s&myip=%s HTTP/1.0 DDNSAUTH: Authorization: Basic %s DDNSAGENT: User-Agent: SAM4Q/1.0 intercel@intercel.com.au PDNSIP: 8.8.8.8 SDNSIP: 8.8.4.4 DNSTTL: 240 AT$DDNSTEST Use to force a manual updating of IP to the DDNS server, all required parameters must be set beforehand.
- Page 22 Smart SAM4Q User Guide V1.1 AT$ACCESS Use to setup parameters required for remote access. Parameters are defined as: IPBLOCK=0 or 1 (0 disable, 1 enable remote IP access from REMOTEIP1-REMOTEIP4) REMOTEIP1= nnn.nnn.nnn.nnn REMOTEIP2= nnn.nnn.nnn.nnn REMOTEIP3= nnn.nnn.nnn.nnn REMOTEIP4= nnn.nnn.nnn.nnn SMSBLOCK=0 or 1 (0 disable, 1 enable remote SMS access from REMOTESMS1-REMOTESMS4)
- Page 23 $LGSMS: LGSMSMSG: SAM4Q power supply is low..LGSMSDELAY: 60 LGSMSNO: +61418505361 AT$LOGIN Use to setup login details for remote sending of AT commands, parameters and software updating; password is encrypted so remote login required PC software Smart SAM4Q Terminal. Ver1.1...
- Page 24 Smart SAM4Q User Guide V1.1 AT$LOGOFF Use to log off remote access instantly. AT$IP Use to return the allocated IP addresses of the current GPRS connection AT$IP $IP: 120.157.107.60 $DNS Primary: 10.4.182.20 $DNS Secondary: 10.4.81.103 AT$VERSION This command returns the TCP/IP software version.
- Page 25 Smart SAM4Q User Guide V1.1 AT$HTTPFOTA Use to start FOTA (LTE module Firmware Download Over The Air). AT$HTTPFOTA=HTTP server string AT$HTTPFOTA=http://161.43.199.19:80/upgrade_1206-1206B.zip AT$DOTA Use to start DOTA (Modem software Download Over The Air). AT$DOTA=FTP_Server,FTP_Username,FTP_Password,FTP_Path,FTP_Filename FTP_Server: FTP server in dot format nnn.nnn.nnn.nnn...
- Page 26 Smart SAM4Q User Guide V1.1 250 2015/04/09 11:17:10+40 320 $getlog. Read last 5 events: AT$GETLOG=5 $GETLOG: 246 2015/04/09 10:26:15+40 288 NW registered 247 2015/04/09 10:26:16+40 262 /04/09,10:26:16 248 2015/04/09 10:52:19+40 320 $version. 249 2015/04/09 11:17:10+40 320 $getlog. 250 2015/04/09 11:21:13+40 320 $getlog=5.
-
Page 27: Csd Call Escape Sequence
Use to restore modem’s parameters to default settings. AT$DEFAULT CSD Call Escape Sequence During CSD call to the Smart SAM4Q modem, send three consecutive EscEscEsc or hex number sequence 0x1B 0x1B 0x1B to switch the modem between data mode and remote AT commands mode. Ver1.1... -
Page 28: Firmware Upgrade
Smart SAM4Q User Guide V1.1 9 Firmware Upgrade The LTE Module Firmware The module firmware can be upgraded via the modem’s serial port, or can be upgraded over-the-air (FOTA) by instructing it to download from a HTTP server. The Modem’s Controller Software The modem’s software can be upgraded over the JTAG port using the SAM-BA software tool from ATMEL. - Page 29 -In SAMMODE=2, the MCU takes about 30 seconds to set up the LTE module, the modem only responds to AT commands from the serial port after setting up is finished. -In SAMMODE 1 and 2 if the Smart SAM4Q modem is powered up without a SIM card it will go into AT command mode after 20 seconds.
- Page 30 Should Buyer purchase or use intercel...
