Smart SAM3T User Guide V1.52

6.6 Data Cable

6.7

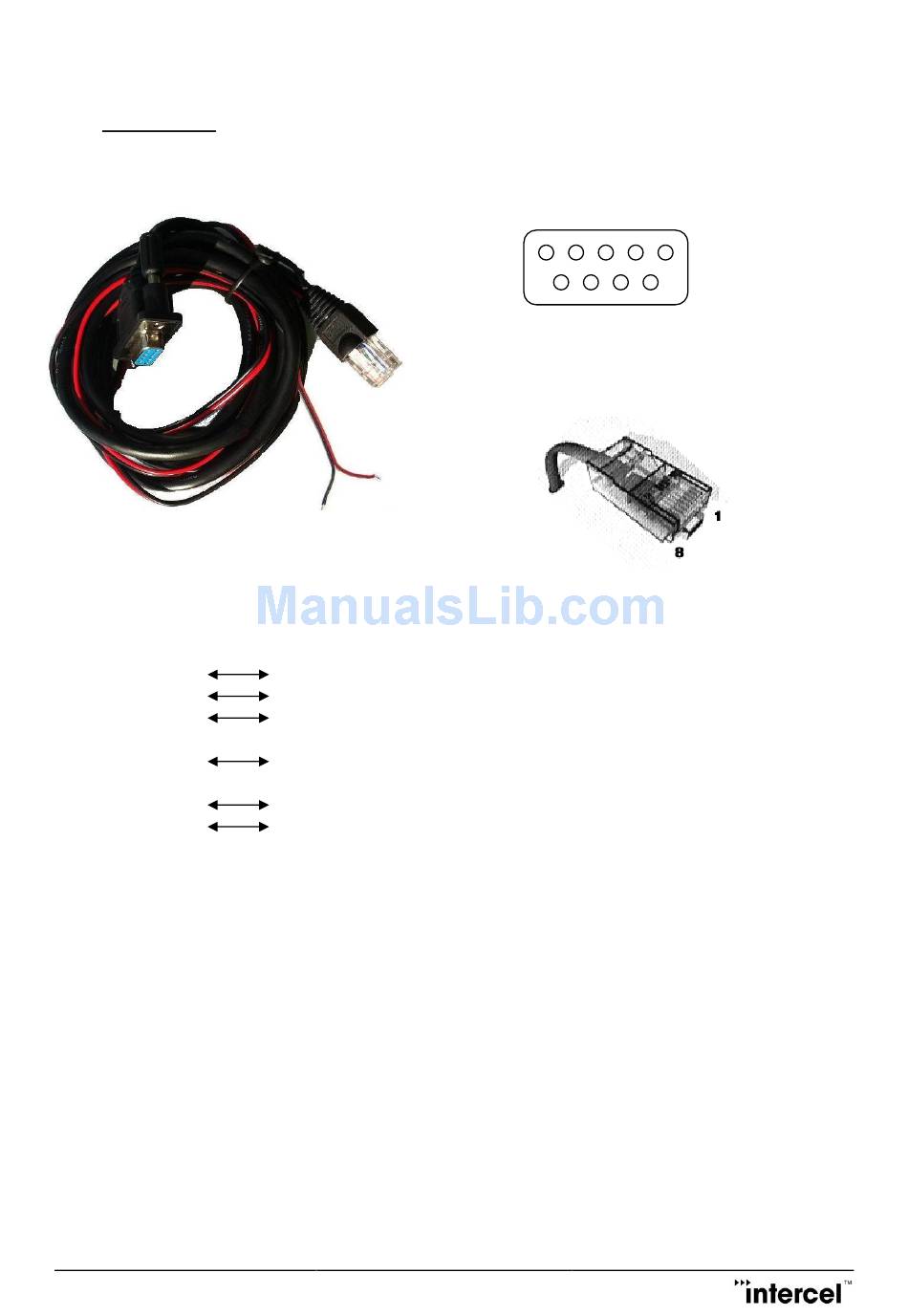

The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power.
DB9 Signals
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI Not used
12
RJ45 Description
2 Data Carrier Detect
5 Serial Data out of the Smart SAM3T
6 Serial Data into the Smart SAM3T
3 Not used
4 Common Ground
8 Ready to Send
7 Clear to Send
1 RED wire : Input voltage from 5Vdc to 32Vdc
4 BLACK wire : Power Ground
Ver1.52
5 4 3 2 1
9 8 7 6
