SAM3Gplus User Guide V2.5

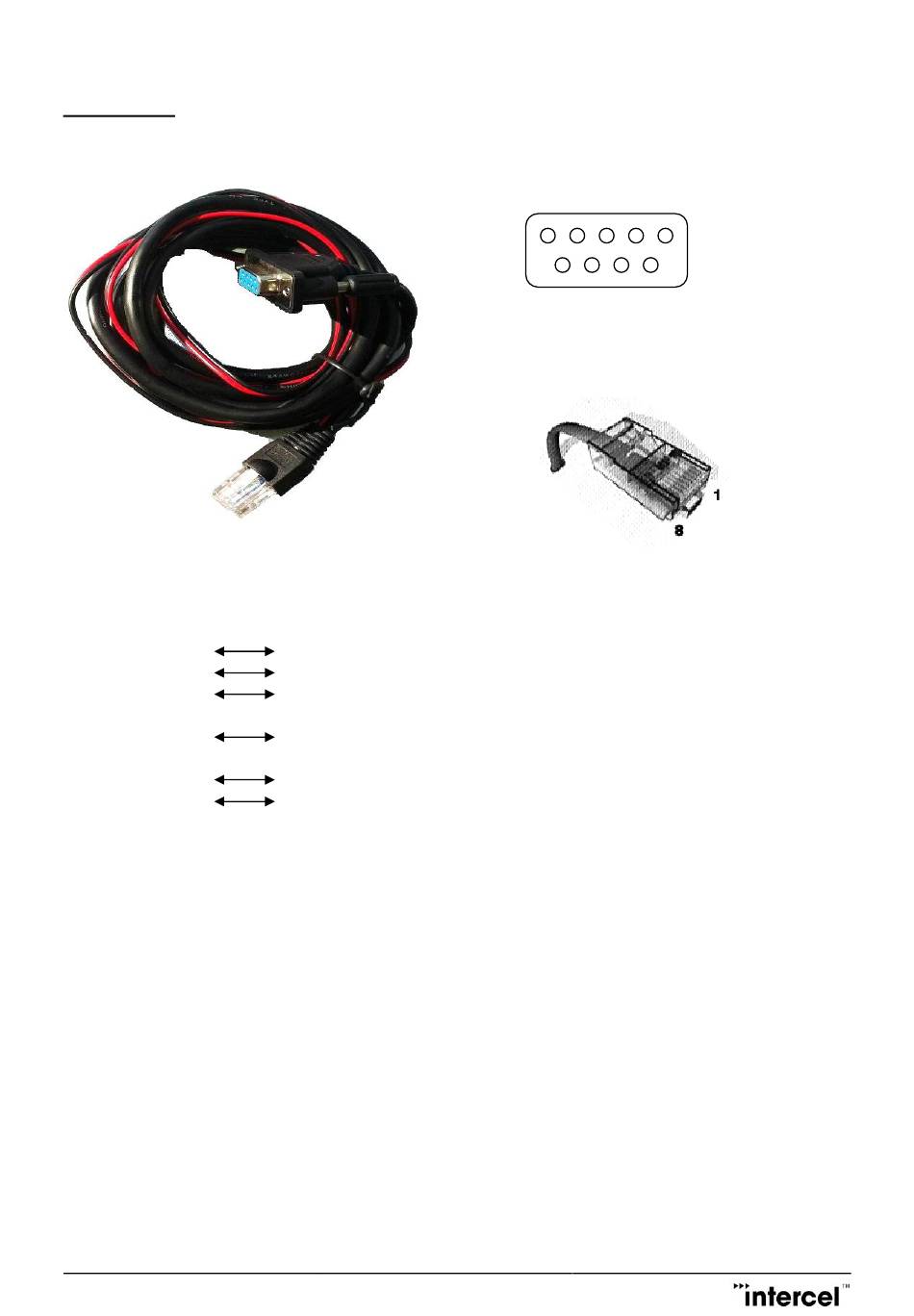

6.7 Data Cable

The data cable is 2m long. It consists of an RJ45 plug, a DB9-female connector and a 2-wire input power.
DB9 Signals
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
8 CTS
7 RTS
9 RI Not used
11
RJ45 Description
2 Data Carrier Detect
5 Serial Data out of the SAM3Gplus
6 Serial Data into the SAM3Gplus
3 Not Used
4 Common Ground
7 Clear to Send
8 Ready to Send
1 RED Wire: Input voltage from 5Vdc to 32Vdc
4 BLACK Wire: Power Ground
Ver2.5
5 4 3 2 1
9 8 7 6
