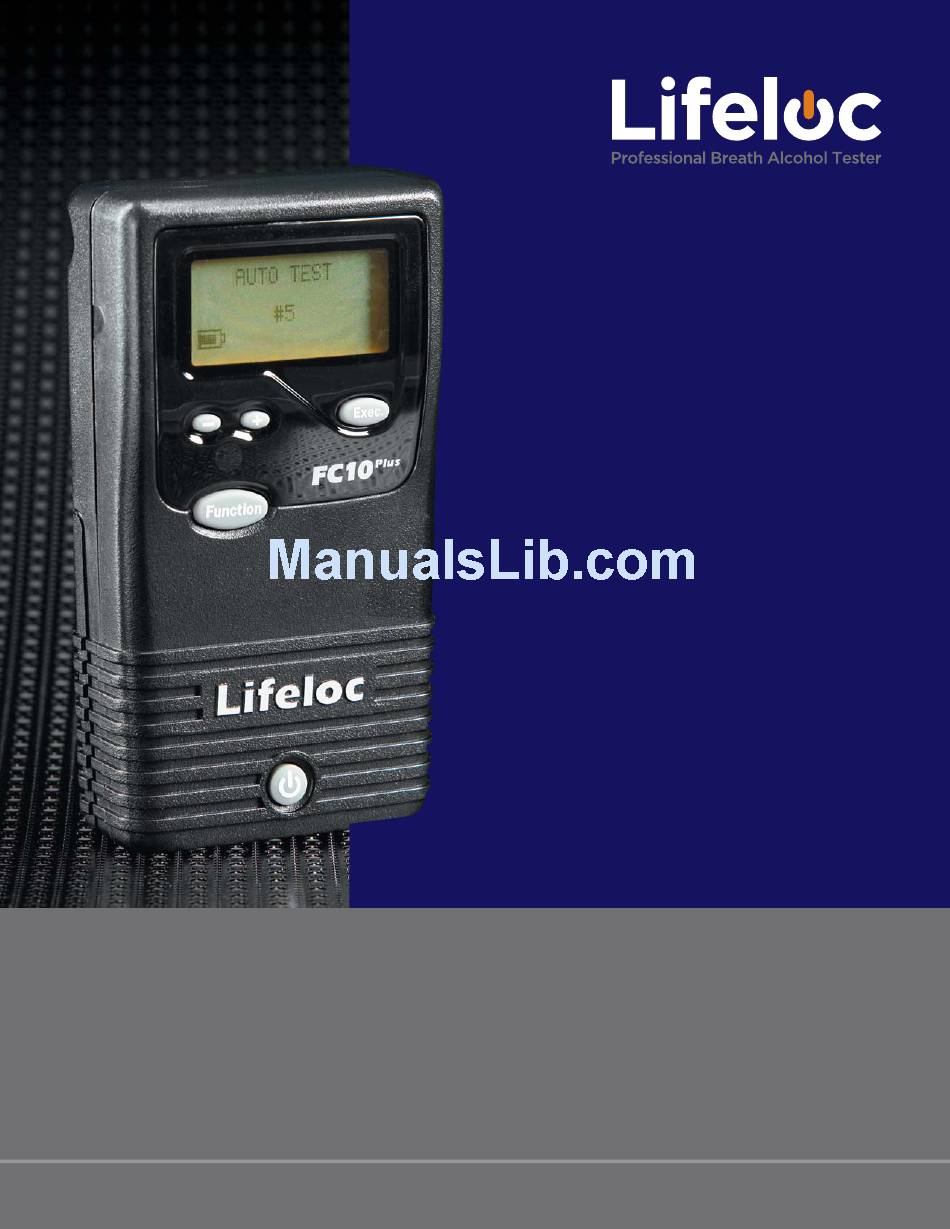

- Page 1 Plus Lifeloc FC10 Operations Manual Unlock the Power of Alcohol Testing...
-
Page 2: Table Of Contents
Table of Contents Plus Lifeloc FC10 Introduction Congratulations ..............................4 Front View ................................5 Features ................................6 Preparation Installing Batteries ............................7 Turning the FC On and Off ........................... 7 Observing the Subject ........................... 8 Attaching a Mouthpiece ..........................8 Breath Testing Modes Testing Modes Explained ..........................9... - Page 3 How to Check Status ........................... 26 Fuel Cells ................................27 Cleaning ................................27 Batteries ................................27 On-Screen Messages Messages Explained ............................28 Service Lifeloc Factory Warranty ........................... 29 Extended Service Plans ..........................29 Service ................................29 General Usage Notice ................................29 Specifi cations ..............................30 FC10...
-
Page 4: Congratulations
Congratulations on your purchase of a Lifeloc FC10 Plus For over 25 years, Lifeloc Technologies has been providing advanced alcohol testing equipment & training to Law Enforcement and Corrections Professionals. We are the leader in product innovation, precision instruments, ease of use & Five Star Customer Care. -
Page 5: Introduction
Introduction Plus Lifeloc FC10 Front View (with Mouthpiece) Large Graphic LCD Screen displays functions and results Mouthpiece Mouthpiece Removal Tab Battery Icon indicates battery level +/- Buttons set calibration standard Execute Button enables you to perform the function Function Button... -
Page 6: Features
Introduction Plus Lifeloc FC10 Features • Large Graphic LCD Display: Capable of showing numbers, letters, icons and plain English text messages. • Automated Calibration: Software-controlled adjustments; no tools necessary. • Auto Test Mode: The easiest way to take a test. Tester automatically takes deep lung sample when subject is at end of breath. -
Page 7: Installing Batteries
Preparation Plus Lifeloc FC10 Installing Batteries Press in and down on the battery door located on the back of the FC10 Plus Install the four AA Alkaline batteries in the direction of the symbols in the battery case. Close the case by pushing up on the battery door until it locks shut. -
Page 8: Observing The Subject
Preparation Plus Lifeloc FC10 Observing the Subject Plus The FC10 provides a highly accurate reading of breath alcohol acquired by sampling deep lung air. Readings will also detect residual mouth alcohol. To prevent mouth alcohol from affecting a test, make certain that the subject is not allowed to put anything in their mouth for 15 minutes prior to taking a test. -
Page 9: Testing Modes Explained
Breath Testing Modes Plus Lifeloc FC10 Breath Testing Modes Explained Plus The FC10 is capable of conducting Automatic, Manual, and Passive tests. • Automatic Test is the easiest way to achieve a deep lung sample. The FC10 Plus monitors the subject’s breath and automatically takes the sample near the end of the breath fl... -
Page 10: Conducting An Automatic Test
Breath Testing Modes Plus Lifeloc FC10 Conducting an Automatic Test Turn the FC10 Plus Verify the display reads “AUTO TEST”. Attach the mouthpiece to the back of the unit. Instruct the subject to blow into the mouthpiece fi rmly and steadily for as long as they can. -
Page 11: Conducting A Manual Test
Breath Testing Modes Plus Lifeloc FC10 Conducting a Manual Test Plus Turn the FC10 Attach the mouthpiece to the back of the unit. Press the Function button until the display reads “MANUAL TEST”. Instruct the subject to blow into the mouthpiece fi... -
Page 12: Operation
Operation Plus Lifeloc FC10 Breath Flow Alcohol Curve As the subject blows into the mouthpiece, Plus If the FC10 detects alcohol, the alcohol the FC10 Plus will show a graph of the breath level is graphed and will be displayed fl... -
Page 13: Changing The Time
User Settings Plus Lifeloc FC10 Changing the Time Press the Function button until the display reads “SETTINGS”. Press the Execute button. Display reads “TIME” with the hour digits fl ashing. Press the + or – button to change the hour. -
Page 14: Setting The Trigger Mode
Press the Function button to save your password. Momentarily press Power to return to the testing mode. Note: Record and store your password in a safe place. Lifeloc does not have access to your password. If password is lost, you will need to contact Lifeloc to restore a default via remote diagnostics or by returning the unit to the factory. -
Page 15: Using Security Password
User Settings Plus Lifeloc FC10 Using Security Password For access to Calibration, Calibration Check, Calibration Settings or User Settings. Press the Function button until the display reads “CALIBRATION” or “SETTINGS”. Select the one you would like to access. You are limited to one at a time. -
Page 16: Adjusting Lcd Contrast
User Settings Plus Lifeloc FC10 Adjusting LCD Contrast Press the Function button until the display reads “SETTINGS”. Press the Execute button. Display reads “TIME”. Press the Function button until the display reads “DISPLAY SETTINGS”. Press the Execute button. Display reads “LCD CONTRAST”. -
Page 17: Results Format Explained
User Settings Plus Lifeloc FC10 Results Format Explained Results for Auto and Manual tests can be displayed in a “NUMERIC” or “PASS/WARN/ FAIL” (PWF) format. Passive test results, however, can only be displayed as “POS” & “NEG”. NUMERIC results are in a 3-digit BAC format. -
Page 18: Setting The Pass/Warn/Fail Levels
User Settings Plus Lifeloc FC10 Setting the Pass/Warn/Fail Levels Press the Function button until the display reads “SETTINGS”. Press the Execute button. Display reads “TIME”. Press the Function button until the display reads “DISPLAY SETTINGS”. Press the Execute button. Display reads “LCD CONTRAST”. -
Page 19: Calibration Settings
Plus The FC10 must be between 68° and 95° F (20° - 35° C) to calibrate. Lifeloc recommends you calibrate your FC10 Plus Once every 12 months, regardless of how many tests you have performed Or, at intervals specifi ed by your Internal Policies, Quality Assurance Plan, or State Regulations Or, after two failed Calibration Checks. -
Page 20: Selecting The Standard Type
Calibration check is also referred to as “External Calibration Check,” “Accuracy Check,” “Verifi cation” and “Cal Check.” Lifeloc recommends you perform a calibration check on your FC10 Plus Once every 30 days Or, at intervals specifi... -
Page 21: Setting The Calibration Lock-Out Type
Calibration Settings Plus Lifeloc FC10 Setting the Calibration Lock-out Type Press the Function button until the display reads “CALIBRATION”. Press the Execute button. Display reads either “WET CHECK” or “DRY CHECK”. Press the Function button until the display reads “CAL SETTINGS”. -
Page 22: Wet Bath Calibration
Wet Bath Calibration Plus Lifeloc FC10 Wet Bath Simulator Set-Up For Calibration & Calibration Check Pour a bottle of certifi ed alcohol solution into the simulator jar and hand tighten lid. Connect long tube from input port to output port so no alcohol escapes while simulator heats up. -
Page 23: Wet Calibration Check
Wet Bath Calibration Plus Lifeloc FC10 If successful, the display will read “CAL COMPLETE”. If no alcohol is detected, display reads “INVALID CALIBRATION”. Please repeat calibration setup and test, starting with wet bath simulator setup. Disconnect the unit and wait at least two minutes before conducting a Cal Check to verify the accuracy of your calibration. -
Page 24: Dry Gas Tank Set-Up
Dry Gas Calibration Plus Lifeloc FC10 Read the result. It should be within +/- .005 BAC of the standard used. If your solution is greater than .100 BAC, accurate results will be within +/- 5%. Example: • A .100 BAC solution should read between .095 and .105 BAC. - Page 25 Dry Gas Calibration Plus Lifeloc FC10 Verify the Calibration Standard is set to the corrected BAC. Using the Altitude Correction Factor (ACF) chart on the dry gas tank, calculate the corrected BAC. Corrected Standard = (tank BAC) x (ACF) To select a new Calibration Standard, see page 19.
-
Page 26: Dry Gas Calibration Check
Dry Gas Calibration Plus Lifeloc FC10 Performing a Dry Gas Calibration Check Prepare the dry gas tank according to its instructions on page 24. Turn the FC10 Plus on. Attach a mouthpiece to the back of the unit. Press the Function button until the display reads “CALIBRATION”. -
Page 27: Fuel Cells
Use of a mild disinfectant cleaner and a soft cloth on the outside of the case is recommended periodically to keep your unit clean. Do not use alcohol to clean the unit. Lifeloc offers alcohol free cleaning wipes specifi c for your unit. See page 31 for more details. -
Page 28: On-Screen Messages
Low Battery Battery voltage is too low to take a test. Replace batteries. Low Li Battery The internal clock battery is low. Contact Lifeloc Technical Support. Pump Reset Needed The pump needs to be reset. Follow onscreen instructions. Temperature When calibrating or taking a test, unit is outside of temperature limits. -
Page 29: Lifeloc Factory Warranty
Service Plus If your FC10 should require repairs or maintenance, Lifeloc is here for you. Just an email or phone call will put you in contact with our technical support personnel. Many minor adjustments can be made over the phone. -
Page 30: Notice
12 years of age. DO NOT DRINK AND DRIVE. Lifeloc strongly recommends that no vehicle or machinery be operated after alcohol consumption. Even small quantities of alcohol can result in driving impairment. -
Page 31: Accessories And Supplies
Menu Charts Plus Lifeloc FC10 Accessories & Supplies Plus Lifeloc offers a complete line of accessories and supplies for your FC10 , including: Plus For the most current listing of supplies for your FC10 , go to: • www.lifeloc.com. Click on Supplies>FC Series –... -
Page 32: User Settings Chart
Menu Charts Plus Lifeloc FC10 User Settings Chart Settings Contrast Time Function Execute Test Function Order Date Function Function Results Format Trigger Function Execute Mode Pass Function Level Security Function Settings Function Fail Level Display Function Settings Exit Function Battery... - Page 33 Plus Lifeloc FC10 Calibration Display Chart Calibration Perform a Execute Execute Check Cal Check Function Perform a Execute Calibration Calibration Function Execute Standard Settings Function Function Standard Exit Type Function Cal Time Type Function Cal Time Function Check Time Function...
- Page 34 And our 5 Star Service is the fastest in the industry. Lifeloc breath testers are used across the US and in over 35 countries. We carry all of the accessories and supplies for your breath test equipment.
