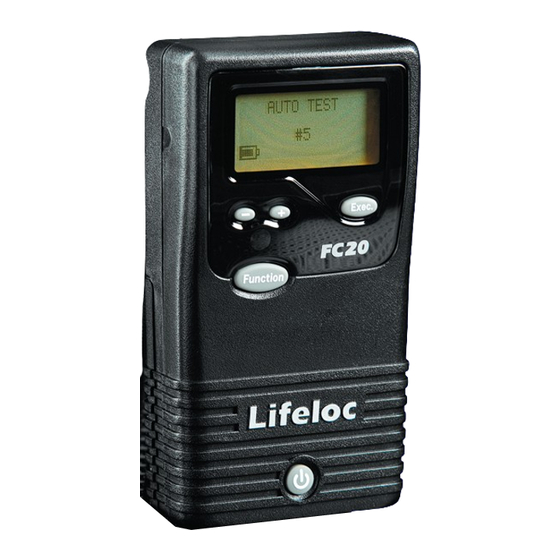

Lifeloc FC20BT
Operations Manual
Unlock the Power
of Alcohol Testing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC20BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifeloc FC20BT

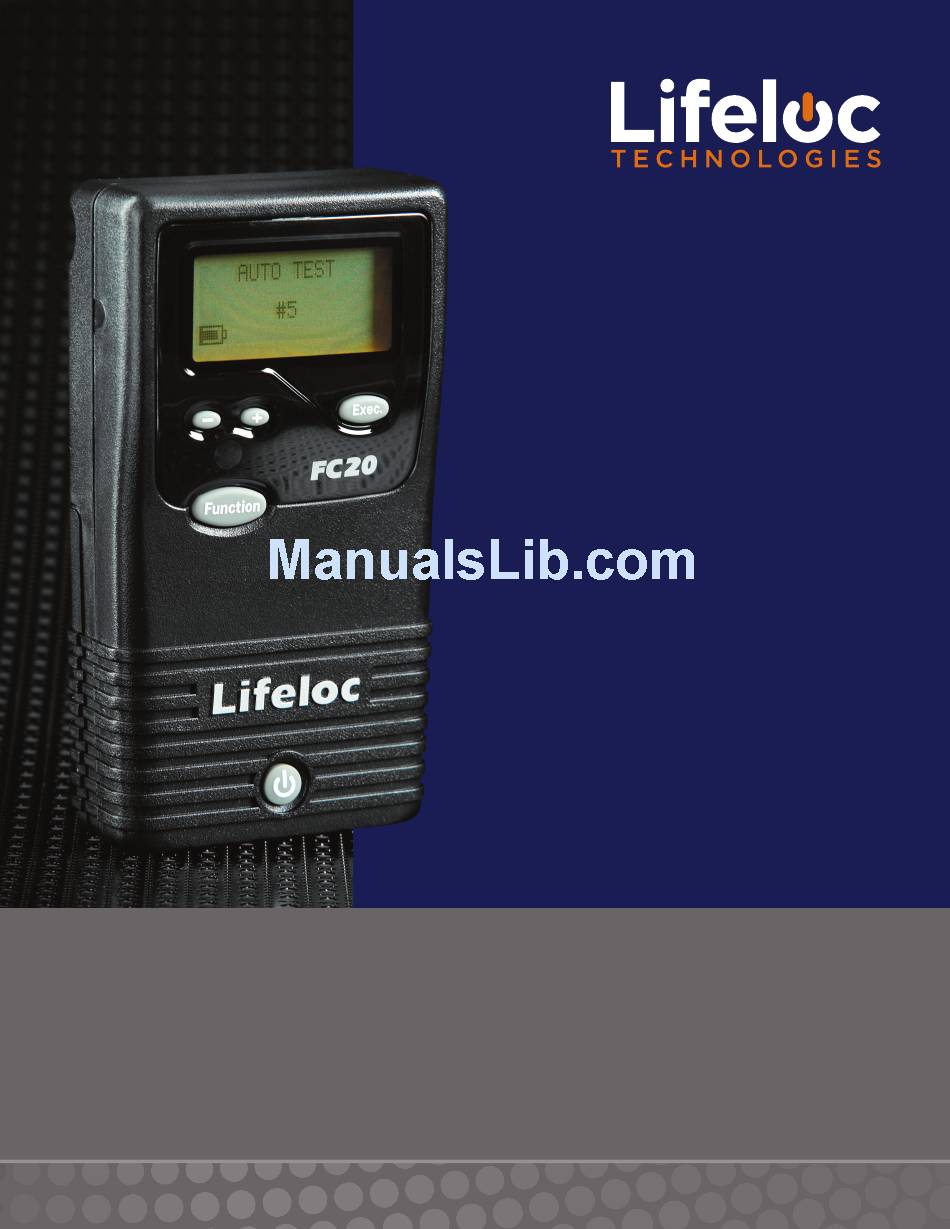

  • Page 1 Lifeloc FC20BT Operations Manual Unlock the Power of Alcohol Testing...
  • Page 2: Table Of Contents

    Lifeloc FC20BT Table of Contents Introduction Congratulations ..........................5 Front View ............................6 Features ..............................7 Preparation Installing Batteries ..........................8 Turning the FC On and Off ......................8 Observing the Subject ........................9 Attaching a Mouthpiece ......................... 9 Breath Testing Modes Testing Modes Explained ......................
  • Page 3: Table Of Contents

    Dry Gas Calibration Dry Gas Tank Set-Up ........................31 Dry Gas Calibration ........................31 - 32 Dry Gas Calibration Check....................32 - 33 Maintenance How to Check Status ........................33 Fuel Cells ............................33 Cleaning ..............................33 Batteries ............................34 Printers Lifeloc Bluetooth Printer ......................34 www.Lifeloc.com 303-431-9500...
  • Page 4 Lifeloc FC20BT Computer Connection AlcoMark® Explained ........................35 AlcoMark® Setup ..........................35 On-Screen Messages Messages Explained ........................36 Service Lifeloc Factory Warranty ....................37 - 39 Fuel Cell Warranty ......................... 40 Extended Service Plans .........................41 Service..............................41 General Usage Notice ..............................41 Specifications ...........................42 FC20BT Supplies Accessories and Supplies ......................42...
  • Page 5: Introduction

    • Your FC20BT will automatically take the test when it senses a deep lung sample is delivered. • Your FC20BT will provide an accurate test, or else explain to you why it cannot, and even provide suggestions on how to proceed to complete an accurate test on your subject.
  • Page 6: Front View

    Lifeloc FC20BT Introduction Front View (with Mouthpiece) Large Graphic LCD Screen displays functions and results Mouthpiece Mouthpiece Removal Tab Battery Icon indicates battery level +/- Buttons set calibration standard Execute Button Bluetooth Status enables you to perform Indicator the function...
  • Page 7: Features

    • Adjustable Auto Shut-Off: Preserves battery life. • Fast, Simple Operation: While the FC20BT contains a host of features, it is still easy to use. • Automatic Backlight: Easy viewing of test results either day or night. •...
  • Page 8: Preparation

    Preparation Installing Batteries Press in and down on the battery door located on the back of the FC20BT. Install the four AA Alkaline batteries in the direction of the symbols in the battery case. Close the case by pushing up on the battery door until it locks shut.
  • Page 9: Observing The Subject

    Preparation Observing the Subject The FC20BT provides a highly accurate reading of breath alcohol acquired by sampling deep lung air. Readings will also detect residual mouth alcohol. To prevent mouth alcohol from affecting a test, make certain that the subject is not allowed to put anything in their mouth for 15 minutes prior to taking a test.
  • Page 10: Breath Testing Modes

    An automatic air blank is a test of the ambient air. It checks to ensure that no alcohol is present, which could affect the test result. If Auto Air Blank is enabled, the FC20BT will prompt you to take a sample before testing the subject.
  • Page 11: Conducting An Automatic Test

    1.3 liters of breath. Read the result. After taking a test, the FC20BT will display the results in large numbers on the display. The result is stored in memory and available for viewing and printing at a later date.
  • Page 12: Conducting A Manual Test

    “PASSIVE TEST.” Hold the FC20BT sample port (orange- colored opening labeled “Port” on the back of the FC20BT) about 4 inches from the subject’s mouth. Have the subject blow toward the port. Press the Execute button while the subject is blowing.
  • Page 13: Breath Flow

    Alcohol Curve As the subject blows into the mouthpiece, If the FC detects alcohol, the alcohol level the FC20BT will show a graph of the is graphed and will be displayed before the breath flow on the display, as well as result.
  • Page 14: Printing Test Results

    Lifeloc FC20BT Operation Printing Test Results Printing the Current Test Take a test. (See pages 11-13) Ensure the printer is on. Press the Execute button under the printer icon to print the result. Printing a Specific Test From Memory Press the Function button until the printer icon is displayed.
  • Page 15: Changing The Date

    Lifeloc FC20BT User Settings Changing the Date Press the Function button until the display reads “SETTINGS”. Press the Execute button. Display reads “TIME”. Press the Function button until the display reads “DATE” 02/24/2008 with the month digits flashing. Press the + or – button to change the month.
  • Page 16: Data Entry Explained

    User Settings Data Entry Explained The FC20BT allows you to enter I.D. numbers and/or names that will be printed with every test result. • Subject I.D. - Can identify a unique test subject. You will be prompted to enter name or number each time you administer a test.
  • Page 17: Entering A Subject I.d. And Data Field 2

    Press the Function button to save the unique Subject I.D. with the next test. The FC20BT will now prompt you to enter a unique Subject I.D. before every test. To bypass entering a Subject I.D., simply press the Function button and take a test.
  • Page 18: Disabling Subject I.d. And Data Field 2

    Press the Execute button until display reads “OFF.” Press the Function button to save your changes. Now the FC20BT will not prompt you to enter a Subject I.D. (Data Field 2 and Subject I.D. will be blank until they are enabled.) Press the Power button to return to the testing mode.
  • Page 19: Security Settings Explained

    Note: Record and store your password in a safe place. Lifeloc does not have access to your password. If password is lost, the only way to reset the unit is to call Lifeloc Tech Support at 720.317.2190.
  • Page 20: Removing Security Password

    Momentarily press Power to return to the testing mode. Print Settings Explained The FC20BT settings allow you to customize your printout to your particular needs. You can choose between the following: Number of Copies - Choose to print 1, 2 or 3 copies of a test.
  • Page 21: Print Format

    Lifeloc FC20BT User Settings Print Format Press the Function button until display reads “SETTINGS”. Press the Execute button. Display reads “TIME”. Press the Function button until the display reads “PRINT SETTINGS”. Press the Execute button. Display reads “NUMBER OF COPIES”.
  • Page 22: Setting The Default Test Order

    NUMERIC results are in a 3-digit BAC format. PASS/WARN/FAIL results require setting specific levels for Pass and Fail. For example, if Pass is set at .040 and Fail is set at .080 (default settings on your FC20BT), then: Pass = .000 - .040 Sample settings only.
  • Page 23: Setting Results Format

    Note: An alcohol reading between the PASS and FAIL levels will read WARN. View Current Device Through the Bluetooth Settings menu, your FC20BT will allow you to view your selected devices as well as change or discover other Lifeloc Bluetooth devices.
  • Page 24: Changing The Selected Printer Device

    Press the Execute button to change your device and wait while the FC20BT scans for devices. Note: All Lifeloc Bluetooth devices have a unique ID. The ID for the Lifeloc keyboard ID is featured on the outside foldable panel. Press the + or – button to scroll through the list of discoverable devices.
  • Page 25: Calibration Explained

    Lifeloc FC20BT Calibration Settings Calibration Explained You can calibrate and check your FC20BT using either the wet bath or dry gas method. You must first set your FC20BT to recognize which method or which ‘Standard Type’ you will be using.
  • Page 26: Calibration/Cal Check Explained

    Calibration of an FC sets your unit to a known alcohol concentration to enable accurate BAC (Breath Alcohol Concentration) results. You can use dry gas or wet bath solution to calibrate your FC20BT. Most commonly used solutions are .100, .080 or .040 BAC.
  • Page 27: Selecting The Standard Type

    Calibration/Cal Check Lock-out Explained The calibration/cal check lock-out allows you to prevent usage of your FC20BT if it is not calibrated or cal checked in a specified time period. Time can be registered as days or number of tests.
  • Page 28: Setting The Cal Check Lock-Out Type

    Lifeloc FC20BT Calibration Settings Press the Execute button to select “DAYS” or “TESTS”. Press the Function button to save your setting. Display will now read “CAL TIME” or “CAL NUM TESTS”. Press the + or - button to set the number of days or tests between calibrations. The time starts counting from your last calibration date, not from the date you set it.
  • Page 29: Wet Calibration

    Verify the “CAL STANDARD” is set to the concentration of certified alcohol solution you will be using when you calibrate. To select a new Calibration Standard, see page 25. Slide the FC20BT mouthpiece over the mouthpiece adaptor on the simulator. Be prepared to blow into the tube for up to 10 seconds.
  • Page 30: Wet Calibration Check

    Disconnect long tube from the output port. Attach a mouthpiece adapter securely to the output port on the simulator lid. Refer to your simulator manual for location. Turn the FC20BT on. Attach a mouthpiece to the back of the unit. Press the Function button until the display reads “CALIBRATION”, then press the Execute button.
  • Page 31: Dry Gas Calibration Check

    To select a new Calibration Standard, see page 25. As a reminder, if you have purchased the Baro Sensor option for your FC20BT, you do not need to adjust for altitude or elevation. The Baro Sensor will make the adjustment for you.
  • Page 32 To select a new Calibration Standard, see page 25. As a reminder, if you have purchased the Baro Sensor option for your FC20BT, you do not need to adjust for altitude or elevation. The Baro Sensor will make the adjustment for you.
  • Page 33: Maintenance

    (Calibration display flow chart is shown on p. 45) How to Check Status This function allows you to check the status and internal conditions of your FC20BT. Press the Function button until display reads “STATUS”. Press the Execute button. Display shows Model, Serial Number, Software Version, and Software Release Date.
  • Page 34: Batteries

    Momentarily press the Power button to return to the testing mode. The four batteries in your FC20BT should last for about 160 hours of “on” time or up to 6000 tests. It is recommended you use high-quality alkaline batteries with your unit.
  • Page 35: AlcomarkĀ® Explained

    AlcoMark is a software program developed by Lifeloc, exclusively for use with Lifeloc’s breath testing equipment. AlcoMark software enables you to download, track, store and print test results from your FC20BT to your PC. The AlcoMark CD comes with a cable and instruction manual.
  • Page 36: On-Screen Messages

    External Interference External interference has been detected. Move to a different location and try again. If error persists call Lifeloc Technical Support Flow Error - Retry & Blow Steadily Exhalation not complete or interrupted. Instruct subject to blow steadily as long as they can.
  • Page 37: Service

    Lifeloc FC20BT Service Lifeloc Factory Warranty The FC20BT comes with a one year limited parts and labor warranty, effective on the date of purchase by the end-user. The Warranty covers: • Parts and labor on covered repairs • Software updates, as applicable •...
  • Page 38 Lifeloc FC20BT Service Lifeloc assumes no risk for damage in transit. If Lifeloc determines that a Defect was outside of or not covered under the Warranty, Lifeloc will estimate repair and service charges and obtain the buyer’s authorization prior to conducting any work to repair the Defective Lifeloc Equipment.
  • Page 39 LIFELOC. The correction of any Defect shall in no way extend the duration of the Warranty; only the unexpired warranty term of the Lifeloc Equipment applies to any repaired or replacement Lifeloc Equipment that is provided under the Warranty.
  • Page 40: Fuel Cell Warranty

    1) Lifeloc shall, at its option, elect to repair or replace any fuel cell returned to Lifeloc as defective. 2) All fuel cells returned to Lifeloc as defective become the property of Lifeloc.
  • Page 41: Extended Service Plans

    Lifeloc for details or purchase online at www.lifeloc.com/esp.aspx. Service If your FC20BT should require repairs or maintenance, Lifeloc is here for you. Just an email or phone call will put you in contact with our technical support personnel. Many minor adjustments can be made over the phone. To reach our service department call 720.317.2190 for an RA number or download the service request form from...
  • Page 42: Specifications

    F (0 - 55 Accessories & Supplies Lifeloc offers a complete line of accessories and supplies for your FC20BT, including: For the most current listing of supplies for your FC20BT, go to: • www.lifeloc.com. Click on Order Products You can place your order online, via fax to 303.431.1423 or call Customer Service at 303-431-9500 or 800-722-4872.
  • Page 43: Available Upgrades

    Sample Printouts Available Upgrades The FC20BT has extended features that can be ordered from the factory. These are not standard on the unit and are only available as special order items. The available factory options include Auto Air Blank and QWERTY keyboard.
  • Page 44: Menu Charts

    Lifeloc FC20BT Menu Charts User Settings Chart Settings Time Execute Function Date Function Auto Air Blank (optional) Function Shutoff Time Number of Copies Contrast Function Function Function I.D. Settings Print Test Format Order Function Function Function Data Field 2 Execute...
  • Page 45: Calibration Display Chart

    Lifeloc FC20BT Menu Charts Calibration Display Chart Calibration Perform a Execute Execute Check Cal Check Function Perform a Execute Calibration Calibration Function Execute Standard Settings Function Function Standard Exit Type Function Cal Time Type Function Cal Time Function Check Time...
  • Page 46: Bluetooth Settings Chart

    Lifeloc FC20BT Menu Charts Bluetooth Settings Chart Settings Function Printer Bluetooth Keyboard Execute Other Function Select Current Scanning Execute Execute Device Device Function Exit www.Lifeloc.com 303-431-9500...
  • Page 47 And our 5 Star Service is the fastest in the industry. Lifeloc breath testers are used across the US and in over 35 countries. We carry all of the accessories and supplies for your breath test equipment.
