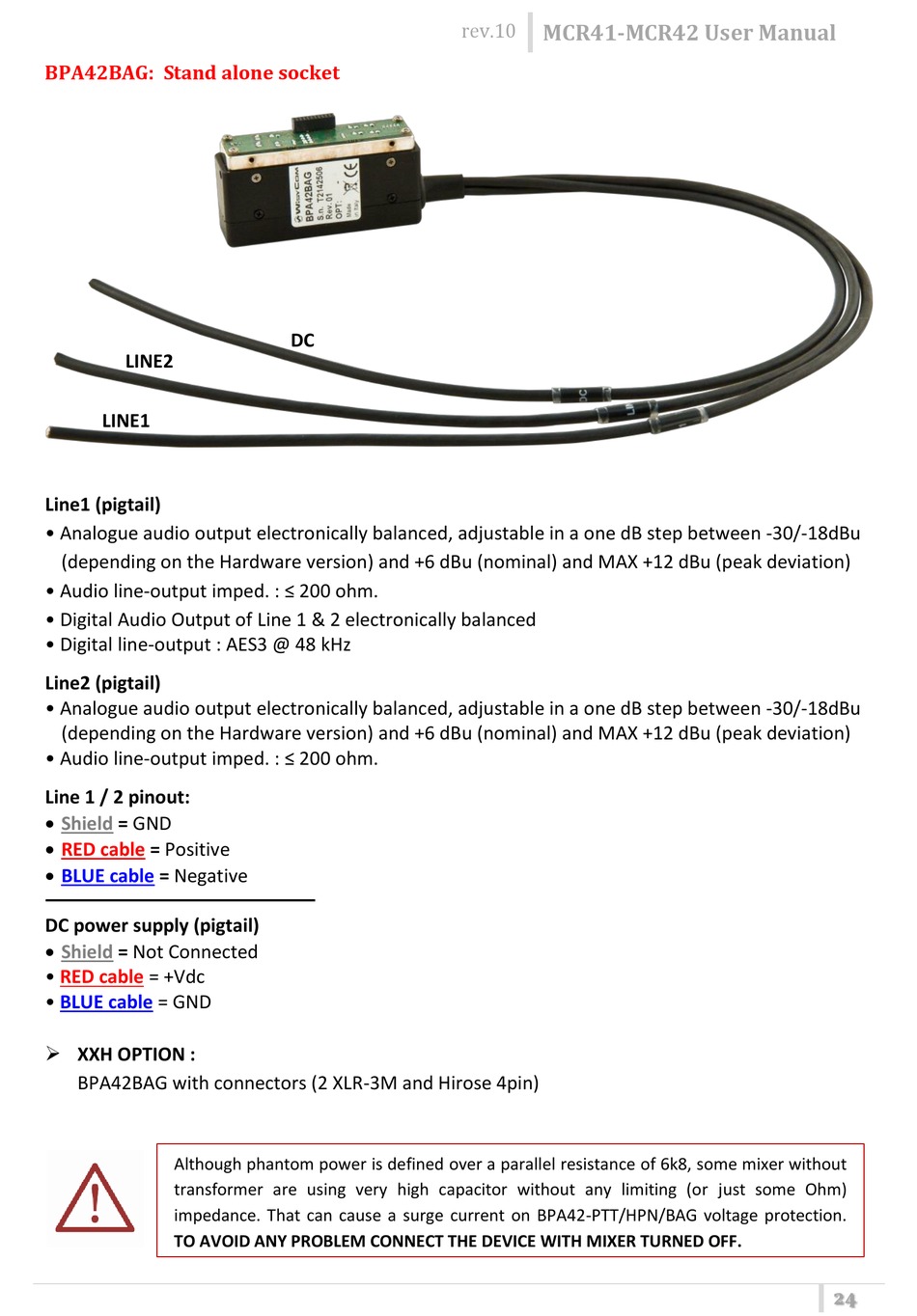

BPA42BAG: Stand alone socket
LINE2
LINE1
Line1 (pigtail)
• Analogue audio output electronically balanced, adjustable in a one dB step between -30/-18dBu
(depending on the Hardware version) and +6 dBu (nominal) and MAX +12 dBu (peak deviation)
• Audio line-output imped. : ≤ 200 ohm.
• Digital Audio Output of Line 1 & 2 electronically balanced
• Digital line-output : AES3 @ 48 kHz
Line2 (pigtail)
• Analogue audio output electronically balanced, adjustable in a one dB step between -30/-18dBu
(depending on the Hardware version) and +6 dBu (nominal) and MAX +12 dBu (peak deviation)
• Audio line-output imped. : ≤ 200 ohm.
Line 1 / 2 pinout:

Shield = GND

RED cable = Positive

BLUE cable = Negative
DC power supply (pigtail)

Shield = Not Connected
• RED cable = +Vdc
• BLUE cable = GND
 XXH OPTION :
BPA42BAG with connectors (2 XLR-3M and Hirose 4pin)
Although phantom power is defined over a parallel resistance of 6k8, some mixer without
transformer are using very high capacitor without any limiting (or just some Ohm)
impedance. That can cause a surge current on BPA42-PTT/HPN/BAG voltage protection.
TO AVOID ANY PROBLEM CONNECT THE DEVICE WITH MIXER TURNED OFF.
