IsatDock DRIVE Usage
Docking & undocking the IsatPhone

Pro handset

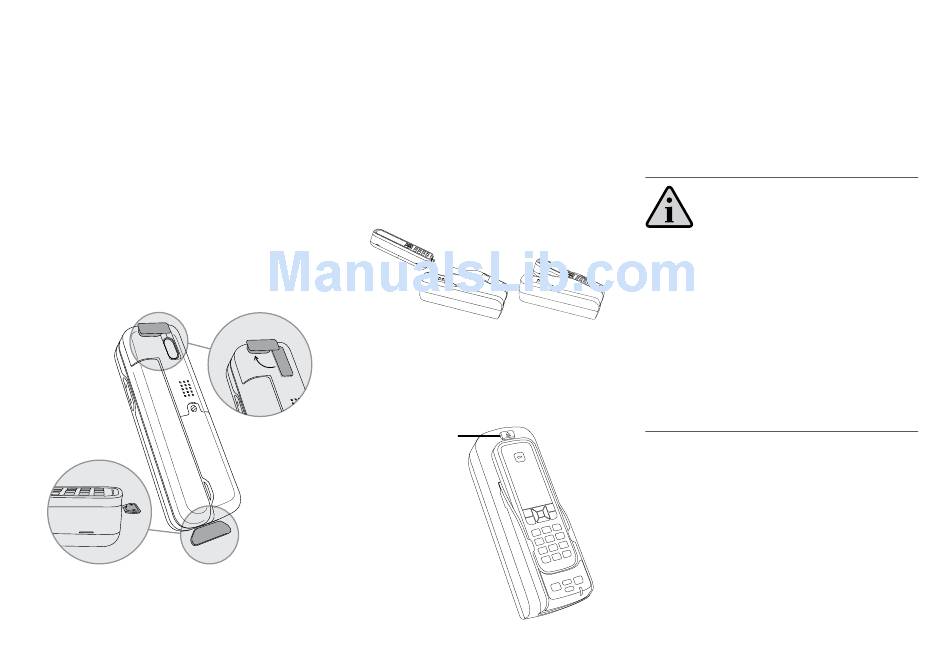

To place the IsatPro Phone into the docking
unit, both the 'covers' on the external antenna
connectors and the USB/Audio connectors
need to be opened.
1. The antenna 'cover' must be placed at 90
degrees to the antenna connector cavity and
run parallel to the top edge of the phone.
2. The 'cover' in the base of the phone should
be in the a 90 degree opened position.
2
1. To dock the handset, align the IsatPhone
with the phone tray and slide the handset
down until it seats flush to the bottom of
the tray. Swing the phone down into the
cradle by applying pressure to the top of
the handset. An audible 'click' is heard
when the phone is in the docked position.
1
1
2. To remove the handset from the cradle,
press the EJECT button at the top of the
docking station. The dock will swing out
and the handset can be removed.
Eject Button
IsatDock DRIVE - Installation & User Manual
Tracking & Alert Configuration
(optional)
Tracking & Alert requires the setup of tracking
and/or alerting messages.
Please refer to the IDMS software to enable and
configure Tracking & Alert.
NOTE
If the Beam alarm loop is going to be used
with an external button, remember to enable
this external loop in the IDMS settings. Once
enabled, the loop will be armed and activated
with an open-loop condition.
To avoid false triggering, be sure to have the
normally closed button wired into the alert loop,
before applying power.
